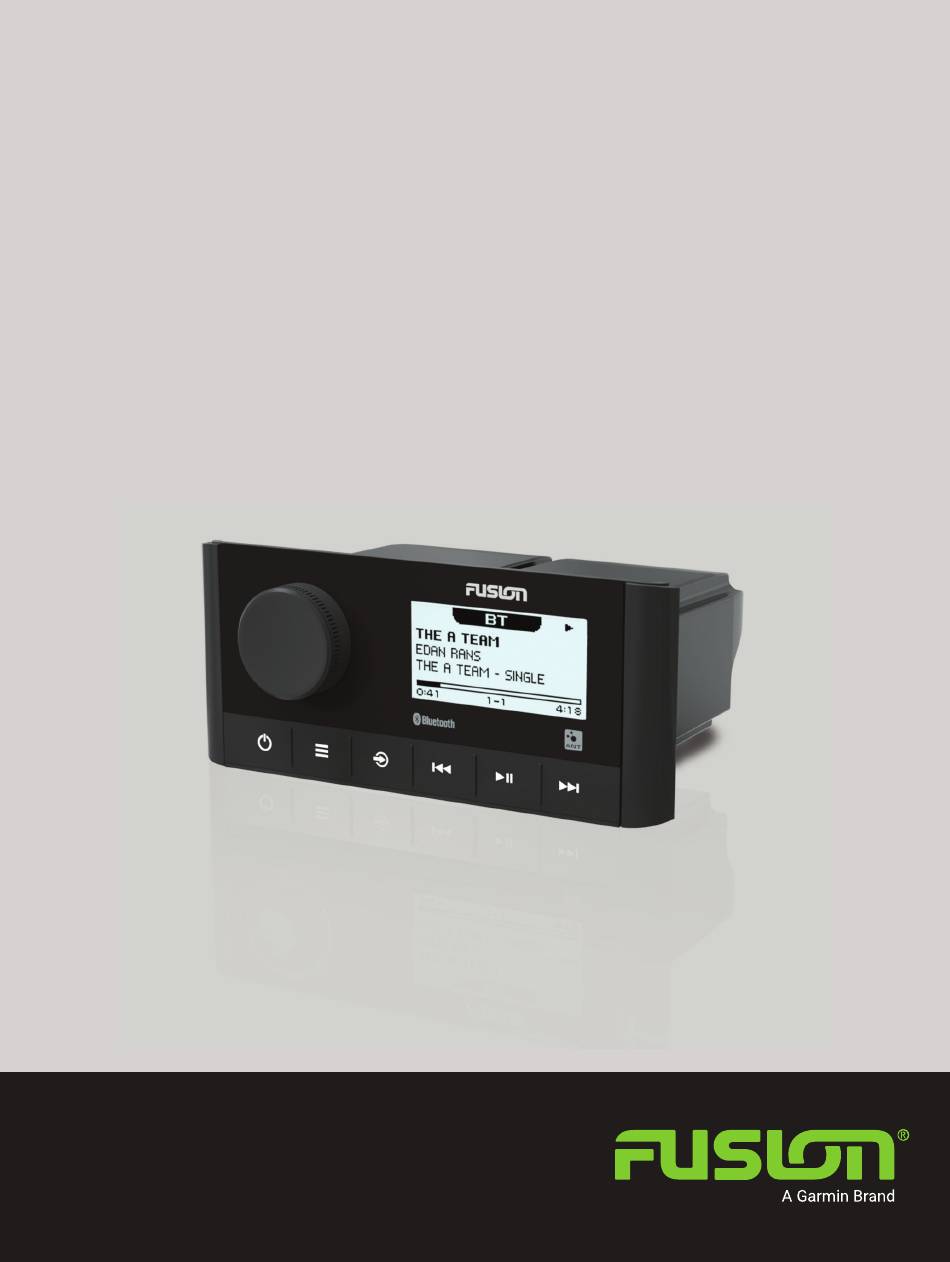

- Page 1 FUSION ® MS-RA60 O W N E R ’ S M A N U A L ENGLISH...
- Page 2 ® , the Garmin logo, ANT ® , Fusion ® , and the Fusion logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Connect IQ ™ , Fusion- Link ™ , and Fusion-Link Lite ™...
-
Page 3: Table Of Contents
Scanning for DAB Stations DAB Presets General Settings Additional Stereo Control Options Connecting to a Garmin® Watch Connecting to an ARX70 Remote Control Fusion-Link™ Wireless Remote Control Appendix Registering Your Fusion Device Cleaning the Device Troubleshooting Specifications Stereo Dimension Drawings Index... -
Page 5: Getting Started
Getting Started WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. Getting Started... -

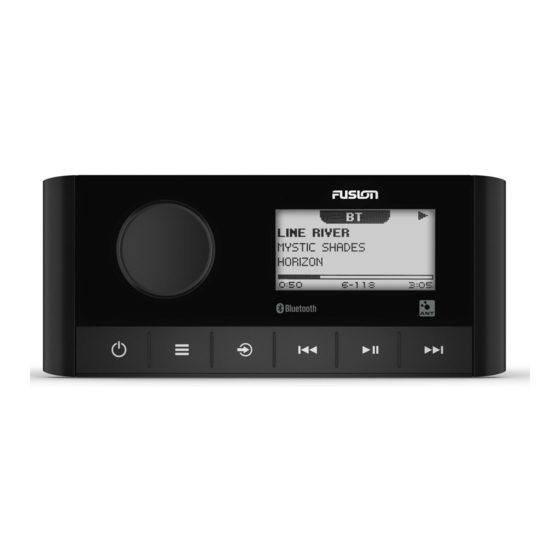

Page 6: Stereo Controls
Stereo Controls Turn to adjust the volume. Press to switch between zones to control the volume. Dial Turn to move through the menus or adjust a setting. Press to select the highlighted option. Press to open a menu. Press to return to the previous screen or menu. Press to change the source. -
Page 7: Stereo Screen
Adjusting the Volume 1 Turn the dial to adjust the volume for a zone or all zones on the stereo. 2 If necessary, press the dial to switch between zones. Adjusting the Subwoofer Level 1 From a source screen, press and hold the dial. The SUB LEVEL adjustment appears. -
Page 8: Connecting An Auxiliary Device
Connecting an Auxiliary Device You can connect various auxiliary devices to the stereo. These devices have either RCA connectors, a line output, or a headphone output jack. 1 Locate the auxiliary connectors on the wiring harness. 2 If necessary, connect an RCA-to-3.5 mm adapter cable to the auxiliary device. 3 Connect the auxiliary device to the AUX IN 1 RCA connectors on the wiring harness. -
Page 9: Radio
Radio To listen to AM or FM radio, you must have a suitable marine AM/FM antenna properly connected to the stereo and be within range of a broadcasting station. For instructions on connecting an AM/FM antenna, see the stereo installation instructions. To listen to DAB stations, you must have the appropriate equipment (DAB Playback, page 6). -
Page 10: Dab Playback
DAB Playback DAB broadcasts are not available in all regions. When the stereo is not set to a compatible region, the DAB source is not available. See the troubleshooting section if you cannot access the DAB source or if DAB stations are not playing properly. -
Page 11: General Settings
Saving a DAB Station as a Preset 1 With the DAB source selected, change the stereo to a DAB station. 2 Select > BROWSE > PRESETS > SAVE CURRENT. TIP: You can quickly save the selected DAB station as a preset by holding Selecting a DAB Preset from a List Before you can select a DAB preset from a list, you must save at least one DAB station as a preset. -
Page 12: Additional Stereo Control Options
The first time you open the app on the watch, the watch automatically pairs with and connects to the stereo. If you need to pair to another stereo, in the Fusion-Link Lite app, select Settings > Pair new. 6 Control the audio playback using the Fusion-Link Lite app on the watch. -
Page 13: Cleaning The Device
The stereo does not receive DAB stations NOTE: The Fusion ® MS-RA60 includes a built-in DAB module and receives DAB signals through a standard AM/FM antenna. • Ensure the stereo is set to a tuner region where DAB stations are broadcast. -
Page 14: Specifications
Specifications General Weight 316g (11.2 oz) Water resistance IEC 60529 IPX7 (front), IEC 60529 IPX5 (rear) Operating temperature range From 0 to 50°C (from 32 to 122°F) Storage temperature range From -20 to 70°C (from -4 to 158°F) Input voltage From 10.8 to 16 Vdc Current (max.) 15 A... -
Page 15: Stereo Dimension Drawings
Stereo Dimension Drawings Front Dimensions 157 mm (6 in.) 68 mm (2 in.) Side Dimensions 22 mm ( in.) 81.2 mm ( 3 in.) 50 mm (2 in.) Appendix... - Page 16 Top Dimensions 130 mm (5 in.) 22 mm ( in.) 10 mm ( in.) Appendix...
-
Page 17: Index
Index AM 5 Android devices 8 devices 8 Apple devices 8 auxiliary input 4 Bluetooth devices 4, 8 DAB 5–7 device cleaning 9 keys 2 registration 8 FM 5 keys 2 language 7 menu key 2 power key 2 presets 5–7 DAB 7 product registration 8 radio AM 5 FM 5 registering the device 8 source 2 speaker zones 3 subwoofer 3 tone 7 volume, adjusting 3 watch 8 Index... - Page 18 FUSION SUPPORT New Zealand 09 369 2900 Australia 1300 736 012 Europe +44 (0) 370 850 1244 623 580 9000 Pacific +64 9 369 2900 S U P P O R T . G A R M I N . C O M...
