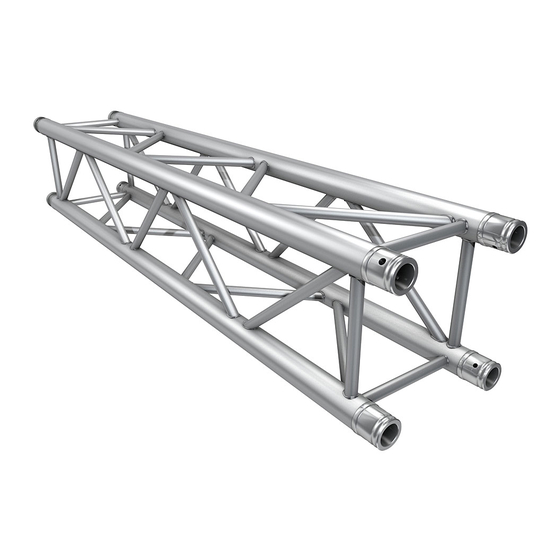

Global Truss F34 Manual

GLOBAL TRUSS

MANUAL

We would like to thank you for choosing GLOBAL TRUSS trussing and ask for your own safety, to read and

follow these operating instructions carefully, before first start-up.

GENERAL

This trussing left our factory in perfect condition. If transport damages should be present, do not use this

product and contact your specialized dealer. To guarantee a safe practice, the safety and warning notes

listed in these operating instructions must be absolutely considered. Truss systems may only be built and

dismantled by qualified staff. The warranty claim expires with damage, which is caused by neglect of the

instructions. The manufacturer does not assume any liability for the damages resulting from it.

1. DRIFT

• When rigging, dismantling, or servicing the trussing, make sure the area below installation place is blo

cked off.

• Always fix lowered trusses with an appropriate safety-rope.

• Unauthorized modifications on the trussing are forbidden due to safety reasons

GLOBAL TRUSS products are designed user friendly and offer a convenient assembly. Nevertheless wor-

king with a truss construction requires a certain professional knowledge. Please do not attempt to work

with truss if you are unsure and lack knowledge; contact a rigging specialist for assistance.

1. Check the truss, the truss pins, the conical and the safety clips for any damages. If any piece is da

maged, do not use it and have it examined by a specialist or replace it with an original GLOBAL TRUSS

product.

2. Check that you have all parts.

a. 4-Point systems (e.g. F34) consist of 4 conical, 8 truss pins and 8 safety clips

b. 3-Point systems (e.g. F33) consist of 3 conical, 6 truss pins and 6 safety clips

c. 2-Point systems (e.g. F32) consist of 2 conical, 4 truss pins and 4 safety clips

www.dq.com.au

Table of Contents

Do you have a question about the F34 and is the answer not in the manual?

Page 1 GLOBAL TRUSS MANUAL We would like to thank you for choosing GLOBAL TRUSS trussing and ask for your own safety, to read and follow these operating instructions carefully, before first start-up. GENERAL This trussing left our factory in perfect condition. If transport damages should be present, do not use this product and contact your specialized dealer.
Page 2 If you are using a screwed GLOBAL TRUSS system (e.g. M25AS) then you can use the same methods as described above. Make sure the nut is fixed on the screw, but not too tight, as it may damage your truss.
Page 3 • You are also responsible for third party riggers, to send them a copy of the mounting instructions, the statistical removal and the official approvals. • Please use only original GLOBAL TRUSS products. It can easily be identified by the engraved GLOBAL TRUSS Logo and the TUV approval label which can be found on every truss.
Page 4 • Any electrical connecting cables may not show any sign of damages, deposits or material aging. • Use only original GLOBAL TRUSS spare parts. If you have any questions, please do not hesitate to contact us: info@dq.com.au or visit our website www.dq.com.au for truss datasheets, load tables, statics and further information.
