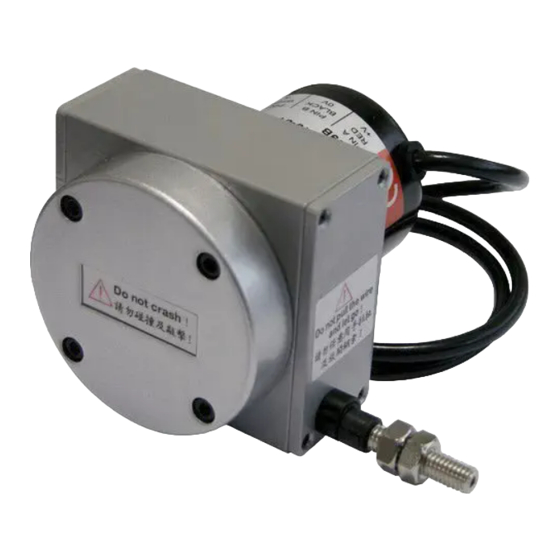

Linear wire encoder

Advertisement

Quick Links

INSTRUCTION MANUAL
SPECIFICATIONS
 Stroke: 1000 ÷ 12000 mm
 Supply voltage 10÷24 Vdc, 5Vdc for line-driver output;
power consumption ≤ 60 mA
 Output signals: push-pull, line-driver
 Zero reference : 1 pulse each encoder revolution
 Max speed: 1 m/sec.
Type
Stroke
1000 - 2000 3000 – 4000 – 5000 mm
HLS-M
HLS-S
1000 mm
6000 – 7000 – 8000 – 9000 - 10000 - 11000 –
HLS-L
12000 mm
INSTALLATION
Make sure that the distance to be run by the wire does not exceed the transducer nominal stroke; stretching the wire over its
nominal stroke damages the transducer seriously, and causes the decay of the garantee right.
Use 4 M3 screws with the following specifications to fix the encoder: HLS-M and HLS-S screws M3x6 – HLS-L screws M4x10
The wire must run out of the bushing without angle to obtain the best tolerance in measurements.
It is possible to hook the fixing end of the wire at a steady point and move the transducer body instead of the wire.
If the application is not a linear one, use a pulley with a proper diameter to smooth the rotation and avoid damaging the wire.
If the product works in a severe environment, such as in presence of oil, water, heavy dust, iron chipping or any powder which
can damage the wire, apply a protective cover.
CONNECTIONS
Carry out the connections as shown in the diagram hereunder.
The cable shield is not connected inside the transducer.
PUSH-PULL output
Supply voltage 10/24 Vdc
Cable Colours
RED
BLACK
WHITE
GREEN
YELLOW
Signals
Standard cable (black)
HLS-M/HLS-L
HLS-S
+ Vdc supply
0 Vdc supply
A
B
Z
LINEAR WIRE ENCODER
HLS-M
HLS-S
 Spring max torque: HLS-S: 700 g – HLS-M: 600/900 g –
HLS-L 1500/2000 g
SUS304 stailess steel wire covered with nylon
Operating temperature: -10 ÷ 60°C (HLS-S 0 ÷ 60°C) / Relative
moisture 35 ÷ 90%
Connections: cable 1 m lg.(HLS-S 0.5 m)
Protection degree IP64 (HLS-S IP50)
Resolution
1 – 0.5 - 0.2 – 0.1 – 0.05 mm
1 – 0.5 - 0.2 – 0.1 – 0.04 mm
1 – 0.5 mm
LINE DRIVER output
Supply voltage 5 Vdc
Cable length on
1 m
request (Grey)
0.5 m
RED
BLACK
BLUE
GREEN
YELLOW
PURPLE
ORANGE
BROWN
SHIELD
HLS
HLS-L
Wire Ø
0.7 mm
0.6 mm
1
mm
Signals
RED
+ Vdc supply
BLUE
0 Vdc supply
WHITE
GREEN
GREY
BROWN
YELLOW
PINK
SHIELD
Not connected
Max load
23 Kg
16 Kg
60 Kg
A
B
Z
A
B
Z
