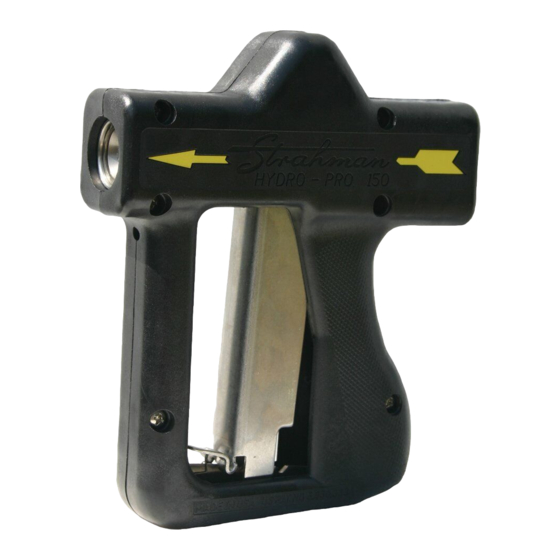

Strahman HYDRO-PRO 150 Assembly Instructions

RUBBER COVER - BLACK RUBBER COVER - RED

RENEWABLE COVER REPLACEMENT

If the renewable cover (2) becomes worn or cracked, follow the steps below
to replace it.
1. Disassemble the renewable cover (2) by loosening and removing the six cover screws (4) (not shown).
2. Lift the body (1) free of the cover (2). Remove the ratchet assembly hinge (3), ratchet (5), and ratchet
spring pin (13).
3. lnstall the body (1) and ratchet assembly-hinge (3) ratchet (5), ratchet spring (13) and spring pin (14) in the
new renewable cover (2). Reinstall the six cover screws (4) (not shown).
