Strahman MINI M-70 Series Assembly Instructions

INSTRUCTION FOR SERVICING SPRAY NOZZLE:

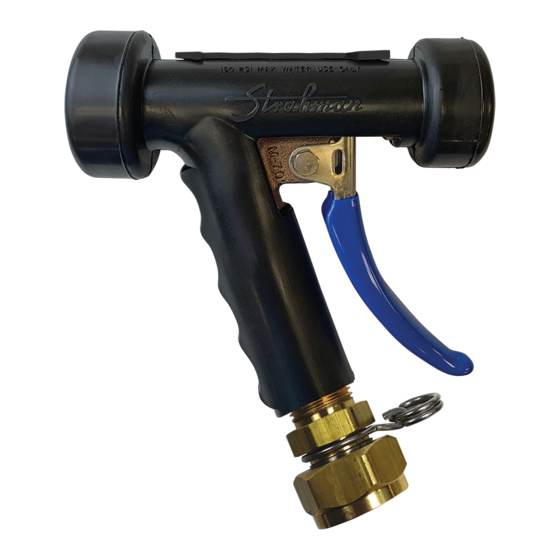

The entire working parts of the Strahman Mini M-70 Lightweight Spray Nozzle
are contained in a Single Cartridge Unit. CAUTION: Not for use on steam hose.
To replace cartridge:
1. Remove the by slipping it off the back of the nozzle and pulling it over the front using a round
Rubber Cover (20)
tool; not a sharp tool that can cut cover.
2. Remove the
Lever Arm Screw & Nut (24)
3. and extract the cartridge from back end of nozzle with
Unscrew Lock Screw (30)
4. Be sure when replacing to place cut-away part of cage facing downward, so
Cage (18)
inserted.
5. To insert new cartridge, reverse procedure beginning.
6. Be sure is placed ahead of
Lever Arm (6)
7. To replace wipe body with detergent, insert nozzle end fi rst then handle into cover. Use a round wipe body with detergent, insert nozzle end fi rst then handle into cover. Use a round
Rubber Cover (20)
ended tool approx. 3/8" in diameter to stretch cover over back. Do not use sharp tool. Sharp tools can cut cover.
STRAHMANVALVES.COM
WORLD HEADQUARTERS
STRAHMAN VALVES, INC.
2801 BAGLYOS CIRCLE, BETHLEHEM, PA 18020
P: +1 484.893.5080 F: +1 484.893.5099 E: STRAHMAN@STRAHMAN.COM
U N I T E D S T A T E S • F R A N C E • G E R M A N Y • C H I N A • H O N G K O N G
and the
Lever Arm (6).
Cage (18).
Lever Arm (6)
on cartridge unit.
Stem Guide (31)
ESTABLISHED 1921
can be
LIMITED
WARRANTY
WDEMINIM70ASSY062020
MINI M-70 SERIES
Assembly Instructions for Series—
MINI M-70 | MINI M-75 | MINI S-70 | MINI S-75
1 YEAR
