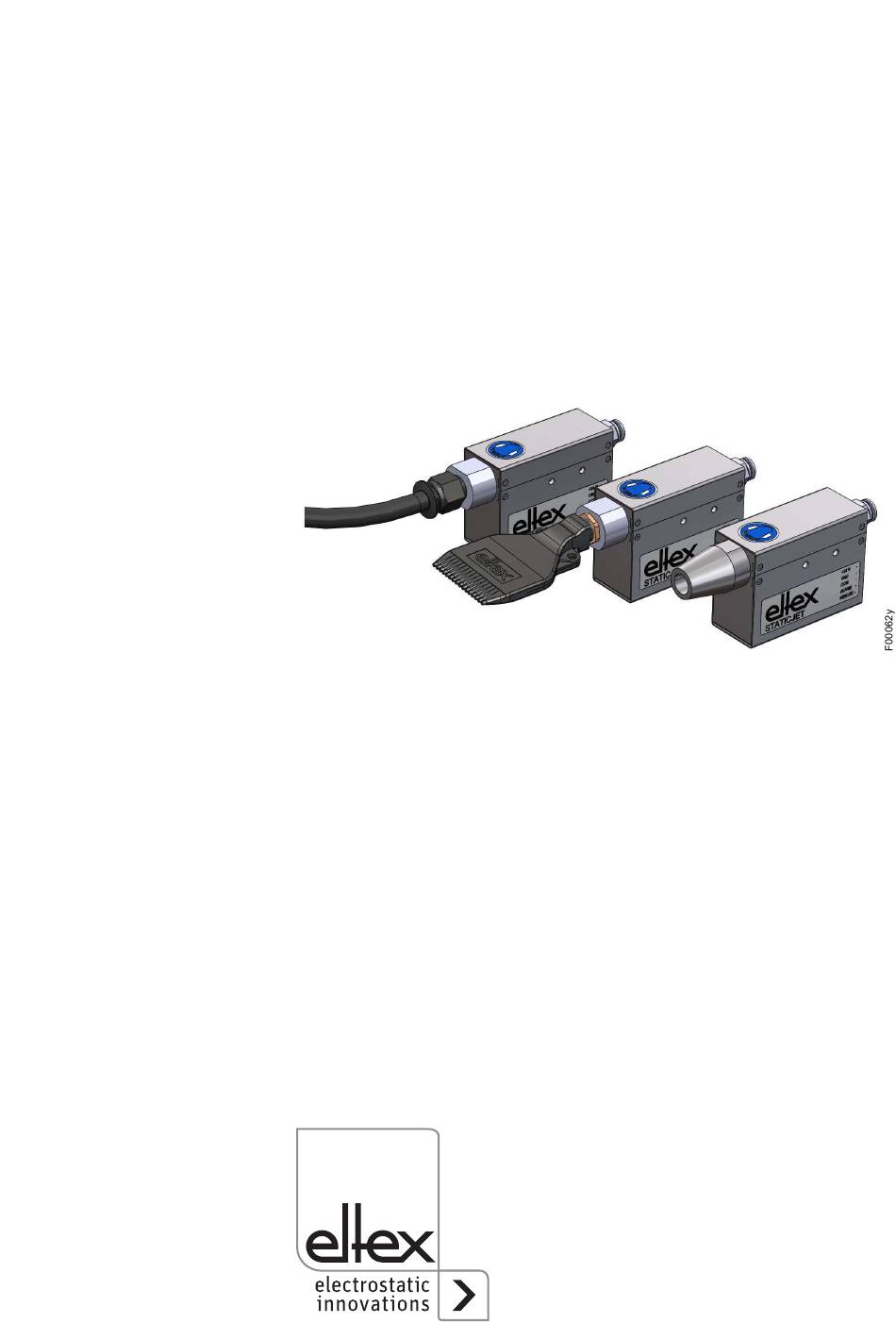

- Page 1 Operating Instructions STATICJET RX22 Ion Blower Unit with integrated High Voltage Generator BA-en-2083-1909...
- Page 2 BA-en-2083-1909_RX22...
-
Page 3: Table Of Contents
List of contents Outline of appliance RX22 Ion Blower Unit STATICJET ..7 Safety ..........8 2.1 Identification of risks and hazards . - Page 4 BA-en-2083-1909_RX22...
- Page 5 Dear Customer, The RX22 Ion Blower Unit STATICJET are used mainly in cases where disruptive static charges on material webs impair production processes and need to be eliminated. The air current carries the ions generated at the emission tip through the nozzle to the object to be discharged.
- Page 6 BA-en-2083-1909_RX22...
-
Page 7: Outline Of Appliance Rx22 Ion Blower Unit Staticjet
1. Outline of appliance RX22 Ion Blower Unit STATICJET Fig. 1: RX22 Ion Blower Unit STATICJET with integrated high voltage generator Enclosure with integrated high voltage generator Combined socket contact: supply voltage and fault signal contact Grounding connection Connection for compressed air supply LED red, fault signal LED green, high voltage OK 7.1 Nozzle attachment: circular nozzle RX22/S... -
Page 8: Safety
2.2 Contact protection As the site of installation and/or use of the units is outside the control of Eltex, contact protection against inadvertent contact of the emission tip by personnel as specified by the employers’ liability insurance association have to be provided (e.g. DGUV V3 in Germany). Contact protection made of conductive material must professionally be grounded. -
Page 9: Work And Operational Safety
2.5 Work and operational safety Warning! Carefully observe the following notes and the complete chapter 2 "Safety”, page • Before carrying out repairs, cleaning or maintenance work and before resetting after malfunctions, switch off the unit and disconnect the mains supply voltage (see chapter 5 "Maintenance”, page chapter 6 "Trouble shooting”, page... - Page 10 the site of installation of the bar, the concentration must be measured on site by the operator. The AGW value (maximum admissible concentration) serves to assess the ozone concentration at the workplace. The user must make sure that the appropriate national AGW value is at no times exceeded, e.g. in Germany the ozone concentration occurring during the operation of the system must not exceed the recommended value based on interna- tional limits of 0.06 ml/m³...
-
Page 11: Installation And Assembly
3. Installation and assembly 3.1 Assembling the RX22 Ion Blower Unit STATICJET The terminals of the ion blower unit must be freely accessible at all times and the display LEDs must be visible. 0 [ Fig. 2: Installation dimen- sions, RX22 Ion Blower Unit STATICJET... -
Page 12: Ground Connection
3.2 Ground connection Warning! A permanent ground contact must be made via the grounding connection (3, Fig. 1). The ground cable should have a minimum cross section of ² 1.5 mm 3.3 Connecting the air hose Caution! The RX22 ion blower unit STATICJET is fitted with a plug-type connector for outside tolerated compressed air hoses with ... -
Page 13: Fault Signal Connection And External Control
3.5 Fault signal connection and external control NPN transistor output, U = max. 27 V DC, I = max. 20 mA The pin assignment is shown in Fig. 4. 7%$ 1PXFS (/% 7%$ "MBSN )J "MBSN (/% "MBSN $0. 3FNPUF Fig. -
Page 14: Operation
4. Operation Caution! The RX22 ion blower unit STATICJET must be operated only with a 24 VDC line voltage. 4.1 Startup Caution! Before starting up the ion blower unit the user must make sure that the unit has been installed and assembled correctly. Then first activate the air and then the supply voltage. -
Page 15: Maintenance
5. Maintenance Warning! Electric shock hazard! • Disconnect the supply voltage before carrying out any maintenance or repair work. • The machine in which the RX22 ion blower unit STATICJET is installed must not be in operation. • Maintenance work must be carried out by qualified electricians. Caution! The internal emission tip of the RX22 ion blower unit STATICJET must not be damaged. -
Page 16: Allow The Solvent To Evaporate Completely Before Restarting The Rx22
Caution! Risk of deflagration! Allow the solvent to evaporate completely before restarting the RX22 ion blower unit STATICJET. • Recommended cleaning intervals:after 100 - 200 hours. • Always make sure that the unit is probperly grounded. BA-en-2083-1909_RX22... -
Page 17: Trouble Shooting
No LED lights up No supply voltage Check supply voltage and connections. Inform Eltex Service. Red LED lights up Internal error To acknowledge the fault, switch the supply voltage off and back on. If the fault persists, notify Eltex Ser- vice. BA-en-2083-1909_RX22... -
Page 18: Warranty
The warranty applies only if the operating and assembly instructions spe- cified by Eltex have been observed. The warranty period begins on the date of delivery. In the event of defects occurring during the warranty period, the units or defective components will be repaired at Eltex. -
Page 19: Technical Specifications Rx22 Staticjet
8. Technical specifications RX22 STATICJET Supply voltage 24 V DC +/- 10 % Power input 2.4 VA max. Output voltage 6 kV AC +/- 250 V / 33 kHz Ambient operating temperature 0 °C...+40°C (+32°F...+104°F) Storage temperature 0 °C...+50°C (+32°F...+122°F) Ambient humidity max. - Page 20 Air consumption Inlet air pressure for typical values all nozzles [MPa] 0.05 [m³/h] Noise emission (dBA) [MPa] 0.05 RX22/S PSA* must be provided RX22/P PSA* must be provided RX22/F * PSA - personal protective equipment / hearing protection BA-en-2083-1909_RX22...
-
Page 21: Dimensions
9. Dimensions 0 [ Fig. 6: Dimensions, RX22 ion blower unit STATICJET BA-en-2083-1909_RX22... -
Page 22: Spare Parts And Accessories
10. Spare parts and accessories Article Article No. Power supply for RX22 ion blower unit STATICJET 113677 Circular nozzle 116782 Fishtail nozzle 102954 Emission tip RX22 113261 Bit insert for tip changes 113262 Tube, flexible L=300 mm 113065 Plug-type connector G 1/4", DN10 113019 Combination plug, strip 5-pin 116776... - Page 24 Eltex offices and agencies The addresses of all Eltex agencies can be found on our website at www.eltex.de Eltex-Elektrostatik-Gesellschaft mbH Blauenstraße 67-69 79576 Weil am Rhein | Germany Phone +49 (0) 7621 7905-422 eMail info@eltex.de Internet www.eltex.de...
