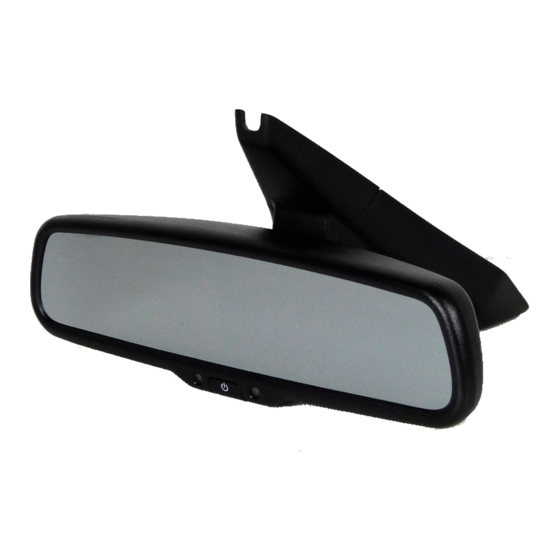

- Page 1 7.3 Inch Car Rear View Mirror Monitor with wireless Mirror link User manual SM-073-WML...
-
Page 2: Table Of Contents
Table of contents Chapter One: Product Introduction........1 1.1 Package..........1 1.2 Features..........1 1.3 Specification..........1 1.4 Operating panel.........2 Chapter Two: Adjustable Guideline........3 2.1 About guide line.........3 2.2 What is the regular guide line......3 2.3 How to adjust the guide line ......4 Chapter Three: Menu Setting ........5 3.1 Remote control.........5 3.2 Menu setting guidance........5... -
Page 3: Chapter One: Product Introduction
Chapter one: Product Introduction 1.1 Package The packing box contains the following accessories, please check: ● 7.3 inch car Rear view mirror monitor with mirror link ● wire harness ● User's manual ● wire cover ● Remote control If any damage has occurred, please contact the distributor or the agent as soon as possible. -
Page 4: Operating Panel
1.4 Operating panel 7.3 inch ultra high brightness display screen Front light sensor Turn on/off the display screen Indicator Mirror link mode switch. When not in the menu press to switch between iOS and Android mode Selection of video input channel Short press switches the video channel displayed on the monitor. -
Page 5: Chapter Two: Adjustable Guideline
Chapter two: Adjustable Guideline 2.1 About guide line Generally, to help drivers estimate the distance from obstacles, there are three lines for reference: red, yellow and green. Those three lines are displayed on the monitor when car is reversing. The green line is 3m from the back of car and the yellow line is 2m. -
Page 6: How To Adjust The Guide Line
2.3 How to adjust the guide line According to the site of standard reference line, we can put reference objects such as desks in the back area of car. Compared with the marked reference objects, we can adjust the sites and angle of two guide lines displayed on the monitor. You will get the accurate guide lines once they coincide with the reference objects. -
Page 7: Chapter Three: Menu Setting
Chapter Three: Menu Setting 3.1 Remote control The menu can only be accessed by remote control: Menu parameter increase Enter picture menu Menu parameter decrease Guide line up Guide line left Guide line right Enter guide line Guide line down adjustment Guide line clockwise Guide line anti-clockwise... - Page 8 3.2.2 COLOUR ADJUSTMENT The defaulted setting is 50, ranging from 0 to 100, and only CVBS signal can work. 3.2.3 CONTRAST ADJUSTMENT The defaulted setting is 50, ranging from 0 to 100, and only CVBS signal can work. 3.2.4 SCALE ADJUSTMENT Only for the model with guide lines, and no such setting for those without this function.
- Page 9 3.2.5 START LOGO ADJUSTMENT It's is defaulted as “ON”, you can set it to “OFF” manually. 3.2.6 PRESET ADJUSTMENT It's defaulted as OFF, and ON is to preset the menu, then it switches to OFF automatically. 3.2.7 VOLUME ADJUSTMENT The defaulted setting is 80, ranging from 0 to 100, and only CVBS signal can work. The reversing mode is the top priority, then the touch panel is ineffective.
-
Page 10: Chapter Four: Mirror Link
Chapter Four: Mirror Link This is a special device to project your mobile phone to Rear view mirror monitor through WiFi connection, and the popular standards like DLNA, Miracast and Air Play. The driver can set the navigation path on the phone before setting off, and then as long as the phone WiFi is connected to the rearview mirror, the navigation audio and video can be simultaneously displayed on the rearview mirror. - Page 11 tap here tap here tap here After connection, the phone screen is projected onto the rear view mirror. You can press “CH” on TP button to cycle through dual mode or single-screen mode.
- Page 12 4.1.2 How to connect with iPhone 1: First, click the “M” button on TP button, switch the wireless mode to iOS mode. “M”button 2: Using iPhone search WiFi (WiFi name is displayed on the screen and shown as below), then enter the default password: 12345678. After finishing WiFi connection, bring up the shortcut menu, click on the AirPlay function, select the device name, and open the Mirroring.
-
Page 13: Channel Switching
After connection, the phone screen is projected onto the rear view mirror. You can press “CH” on TP button to cycle through dual mode or single-screen mode. 4.2 Channel switching Press the “CH” button on the screen; this switches display between CAMERA (default and only full screen display), VIDEO1, MOBILE, VIDEO1 full screen display and MOBILE full screen display. - Page 14 4.2.2 VIDEO1 and MOBILE display simultaneously 4.2.3 VIDEO1 full screen display 4.2.4 MOBILE full screen display...
- Page 15 Notes...
- Page 16 Distributed in the UK by: Synergy Automotive Electronics Ltd Unit 10 Glenmore Business Park, Chippenham, Wiltshire, SN14 6BB www.synergy-automotive.com www.synergytradeshop.com info@synergy-automotive.com Telephone: 01249 401000 Technical: 07584 485189...
