PPM-5802 JK 4 DR REAR GRAB HANDLE KIT
Version 1
GENERAL NOTES:
• It is not necessary to remove the soft top or hard top for installation but it may be
helpful
• The grab handle kit is a bolt on installation but you do have to trim some of
plastic interior trim. A dremel type tool or strait air grinder with a drum sander
works well for this.

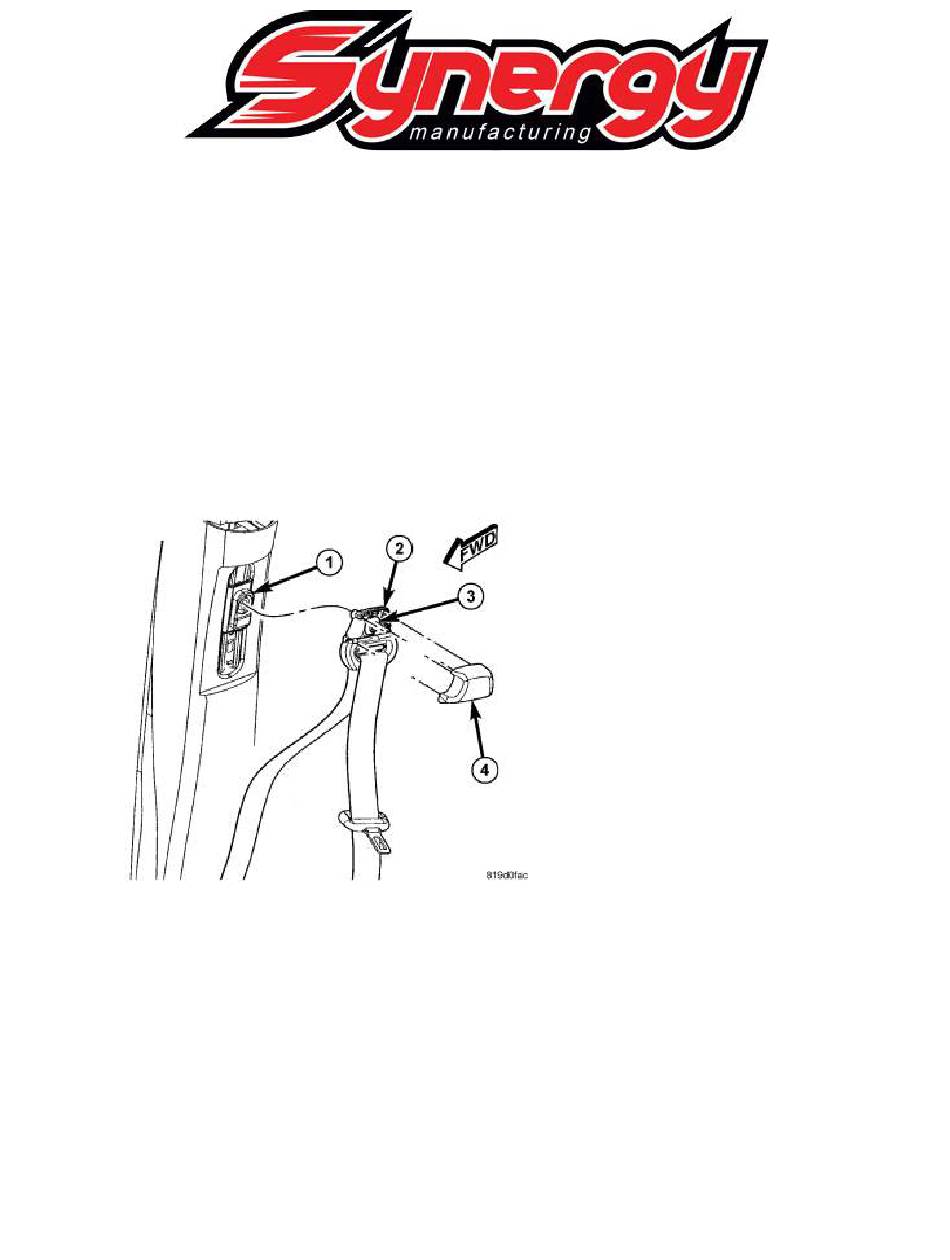

1. Remove the seat belt turning loop (2)
2. Remove the upper B-pillar trim panel (1) by pulling toward the center of the vehicle.
The panel is secured with push in retaining pins (2)
Advertisement
Table of Contents
Related Manuals for Synergy PPM-5802
Summary of Contents for Synergy PPM-5802
- Page 1 SYNERGY MFG. 870 INDUSTRIAL WAY, SAN LUIS OBISPO, CA (805) 242-0397 PPM-5802 JK 4 DR REAR GRAB HANDLE KIT Version 1 GENERAL NOTES: • It is not necessary to remove the soft top or hard top for installation but it may be helpful •...
- Page 2 3. Remove side bar padding cover over the rear doors. Remove the over head speaker pod (2), first remove the hard top thumb screws if equipped, next remove the four screws (3) and lower the speaker pod. Disconnect the electrical connector (1) and remove the speaker pod.
- Page 3 6. Remove the grab handles, zip the side bar padding up and insert the grab handle thru the cut hole as shown. Secure the upper grab handle bracket using the speaker pod bolts, do not fully tighten yet. Secure the lower bracket of the grab handle under the seat belt turning loop height adjuster and torque to 30 ft-lbs.
- Page 4 7. Notch the B-pillar trim as shown. A PDF template is provided online, print and cut the template out with scissors. http://www.synergymfg.com/instructions/JK-Grab- Handle-Pattern.pdf...
- Page 5 9. Re-install the seat belt turning loop and torque to 30 ft-lbs...
