- Page 1 Rack Multi Control RMC Manual...
-
Page 2: Table Of Contents
Content Safety and Installation ……………………………………………………………….. 3 Cleaning ……………………………………………………………………………………………. 3 Installation …………………………………………………………………………………………..3 Mounting …………………………………………………………………………………………… 3 Wiring diagram …………………………………………………………………………... 3 Digital Inputs ………………………………………………………………………………………. 4 Analogue Inputs …………………………………………………………………………………… 4 Alarm / Door Relay ……………………………………………………………………………….. 5 Analogue Inputs ……………………………………….………………………………………….. 5 Front wall …….……………………………………………………………………………………. 6 Back side ………………………………………………………………………………………….. -
Page 3: Safety And Installation
Safety and Installation For your own safety, please read this manual carefully and follow the instructions. Improper handling can damage the device. Cleaning: Do not use any liquid cleaner or corrosive agent but only a dampened cloth. Installation: Installation should be performed by certified personnel only. ... -
Page 4: Digital Inputs
Digital Inputs: The totally 8 digital Inputs are connected as follows: Inputs 1 and 2 have a 24V supplied (10mA max) for powering external sensors, e.g. a smoke detector. Inputs 3 and 4 are potential free. Inputs 5, 6, 7 and 8 have the same characteristics as Input 1 und 2. ... -
Page 5: Alarm / Door Relay
Alarm / Door Relay: The Alarm/Door Relays (max. 1A) are connected as follows: Output for Alarm and Door are potential free. The output “Relay Alarm” can be used for an external horn or warning light. In addition, one of the 8 digital inputs can be configured to be the external horn acknowledgment. -
Page 6: Analogue Inputs

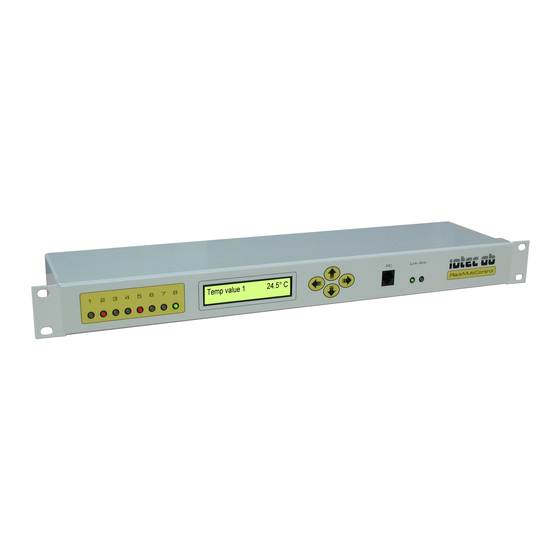

Front wall: 1. Visual Alarm Indicator Lamp 4. RS232 Front Interface 2. Display 5. Link / Active LED 3. Navigation buttons Back side: Analogue Inputs 1. Modem Interface RS232 Alarm and Door Output 2. Keypad Interface (Emka 2100) Output Relays 3. - Page 7 Commissioning The Rack Multi Control is developed for smooth and user friendly configuration. When delivered from the factory the RMC is configured to monitor one temperature and to generate an alarm on channel 1 if the temperature reaches the high limit value of 60 degrees Celsius. When power is connected the RMC backlight activates and the latest firmware is displayed.
-
Page 8: Operation
Factory settings: To restore the factory settings follow these steps: 1. Disconnect the power cord 2. Wait a few seconds 3. Press and hold navigation button “Left” Button Left 4. Reconnect the power cord 5. Release navigation button “Left” when Button Up “Factory setting”... -
Page 9: Graphic User Interface
Graphic User Interface (PC terminal): It is recommended to use the Internet Explorer as web browser. The upper part of the PC terminal displays the front of the RMC and shows the 8 Alarm channels as well as the RMC display. In the lower part, a list of the last 15 events is shown, the latest event being listed at the top. -
Page 10: Open The Door
Door opener: Rack Multi Control has a built in door opening function. In conjunction with an electronic locking mechanism, the door can be controlled by a 4 to 8 digit code. The opening mechanism has an adjustable response time of 1 to 60 seconds. The function can also be activated by a virtual "open door"... -
Page 11: Settings
Settings The monitoring functions of the RMC can be configured via the menu “Settings” Return to the main menu by pressing the "Back ". Alarm & Status channels: The 8 alarm channels can be freely assigned by mouse click. When delivered from the factory channel 1 is already configured for temperature monitoring. -
Page 12: Power Outputs
Outputs: The potential-free outputs can be configured to correspond to specific alarms. The name given on the virtual button is also shown on the graphical user interface. Output 1 Select “Cooling if Temp 1 high” for temperature control by temperature sensor 1 or "manual control on / off"... -
Page 13: Email Alarm Receivers
Receiver / Remote alarm: Up to 5 recipients can be configured to be notified by email or text message when an alarm is raised. For notification by email enter the email address of the recipient. For notification by text message enter the recipients cell phone number starting with “+”... -
Page 14: Restore Factory Settings
SNMP: This sets the parameters to enable the RMC to send SNMP Traps. The settings are normally acquired from the network administrator. If this function is not used leave "Trap receiver IP” blank (see also SNMP section on next page). Restore factory settings: Click to restore the Factory settings, or cancel to return to the main page. - Page 15 SNMP: Use SNMP and a Network Management System NMS. The enterprise number is 11072 (IOTEC AB). The RMC supports the system group in the MIB-II “Objects” sysDescr sysObjectID sysServices sysName sysUpTime sysContact sysLocation The private MIB presently contains the following objects: rmcTemp-1 Integer value in degrees Celsius of temperature 1.
-
Page 16: Technical Data
Steel, Powder Coated RAL7035 Temperature range -5°C bis +45°C Dimensions Rack 19“ / 44 x 115 mm (HxT) Order overview: 901-0101 RMC Rack Multi Control 832.700.902 GSM Modem xmodus inkl. 832.700.910 DIN- Assembly clip to Modem 901-0120 Temperature Sensor RMC 0.2 m 901-0121 Temperature Sensor RMC 3.0 m...
