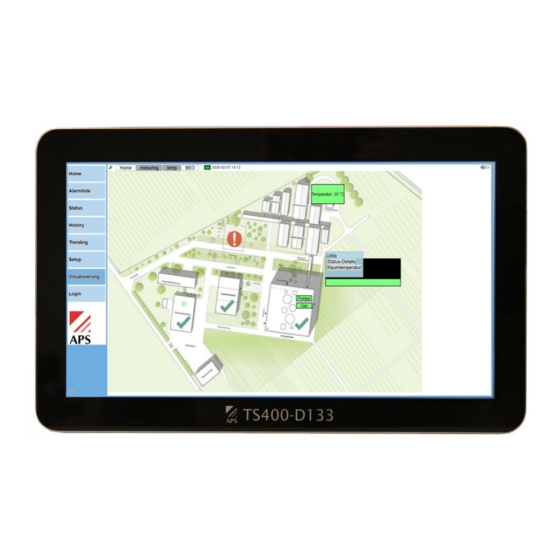

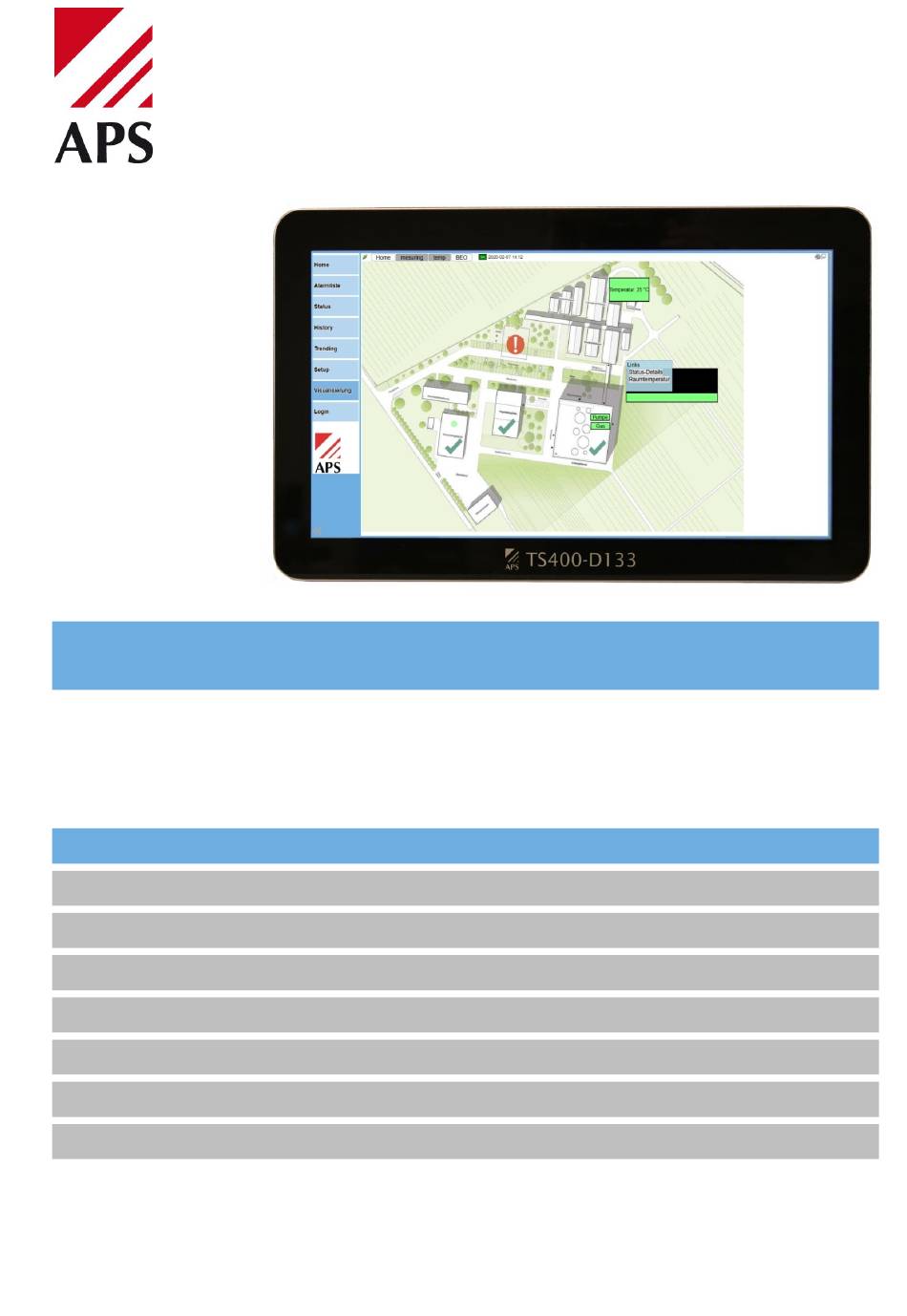

- Page 1 D133 OPERATOR MODULE TS400 MANUAL Safety Instructions Page 2 Assembly Page 3 Connection Page 4 Operation Page 5 Technical data Page 5 Order overview Dimension Page 6 Schematic Page 7 www.aps-systems.ch...
- Page 2 Assembly: The TS400-D133 operator module must not be mounted unprotected outdoors, in rooms with high humidity or in contact with condensation water. When installing on uneven surfaces, measures must be taken to restore dust tightness.
- Page 3 Assembly The TS400-D133 operator module can be mounted on a wall bracket or monitor arm using a 100x100mm VESA mounting device. A mounting bracket is available for installation in equipment or cabinet fronts. Installation in fronts: The installation bracket 832.700.494 (accessory) is required for installation in fronts.
- Page 4 Connection: The TS400-D133 operator module is preferably connected to the TS400 CPU processor module via LAN2 to the Technet. Alternatively, the connection can be established with a seri- al null-modem cable. The power supply can either be provided by 24VDC on the screw con- nector 1.
- Page 5 After the boot process the Linux user login appears. You do not need to log in here; the TS400-D133 operator module is integrated and parameterized in the configuration interface of the TS400. Operation of the TS400 user interface is described in the TS400 manual.
- Page 6 Order overview: TS400-D133 TS400 Operator module 832.700.490 TS400-D133 Wall bracket fixed 832.700.491 TS400-D133 Wall bracket swivel-mounted 832.700.494 TS400-D133 Front mounting bracket 832.700.495 TS400-D133 Desktop power supply 12V/4A CH cable 832.700.496 TS400-D133 Desktop power supply 12V/4A EU cable Dimensions:...
- Page 7 Schematic:...
- Page 8 01.20 APS systems AG Neumatt 4 CH-4626 Low buchites 41 (0)62 517 88 33 Switzerland e-mail: systems@aps-systems.ch www.aps-systems.ch...
