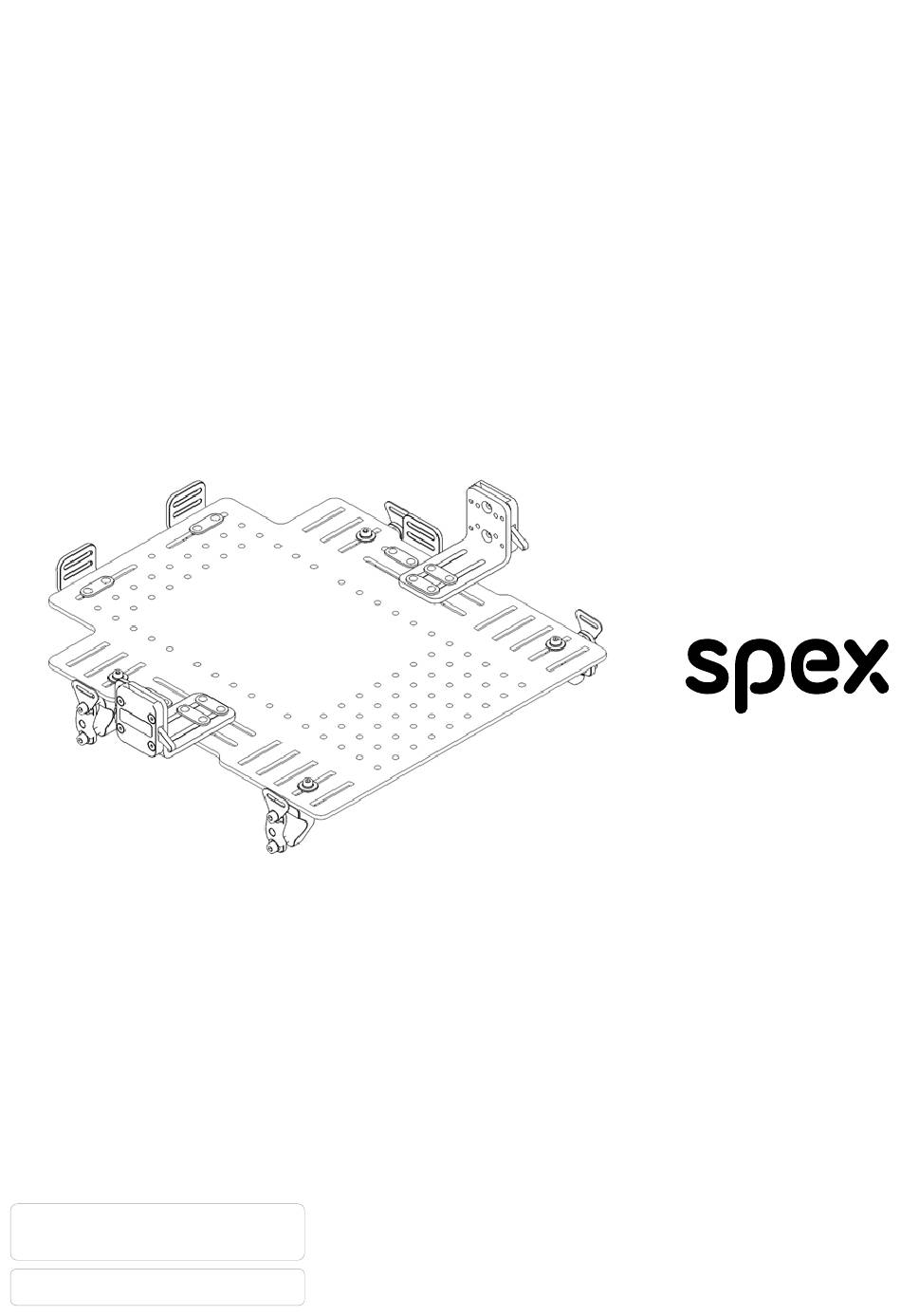

User Manual for all Spex Seat Bases (product code begins with '1008')
Revision: SeatBase20210501_EN
User Name:
Serial Number:
Installation & User Manual
IMPORTANT CONSUMER INFORMATION NOTICE: This
manual contains important instructions that must be
passed on to the user of this product. Please do not
remove this user manual before delivery to the end user.
SUPPLIER: This manual must be given to the user of this
product.
USER/CAREGIVER: Before using this product, read entire
manual and save for future reference. Transit Safety
section MUST be read before used in a vehicle
®
Seat Base
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SPEX 1008 Series
Summary of Contents for SPEX 1008 Series
- Page 1 User Manual for all Spex Seat Bases (product code begins with ‘1008’) Revision: SeatBase20210501_EN ® Seat Base Installation & User Manual IMPORTANT CONSUMER INFORMATION NOTICE: This manual contains important instructions that must be passed on to the user of this product. Please do not remove this user manual before delivery to the end user.
-
Page 2: Table Of Contents
To avoid injury, read, understand and follow all instructions and warnings in this manual before install- ing and using the Spex Seat Base. There are hazards associated with the use of wheelchairs and adaptive equipment. If you misuse your wheelchair or your Seat Base you can be seriously injured. If your Seat Base ceases to function as intended, please consult your authorised Spex seating supplier immediately before continuing to use. -
Page 3: Compatibility

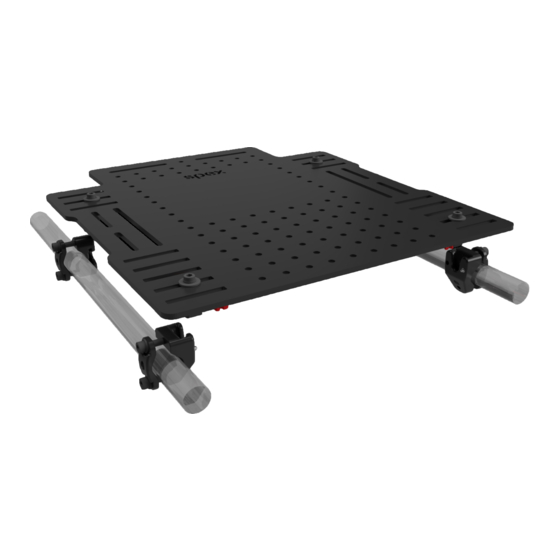

Spex Seat Base has been designed to be compatible with most manual wheelchairs. • The only power wheelchairs Spex Seat Base is suitable for are those which have seat rails • If installing to a manual or power wheelchair it must have tubular seat rails •... -
Page 4: Reissuing To Another User
Reissuing to another user Once the user has finished using the Spex Seat Base, it must be refurbished if it is issued to another user. Below are the strict guidelines for refurbishing the Spex Seat Base. Spex takes no responsibility for con- tamination, cross infection, or damage. -
Page 5: Seat Base Contents
SPEX SEAT BASE USER MANUAL WWW.SPEXSEATING.COM Installation Steps Position the base, resting on the canes, and determine where the hardware is to be mounted, de- pending on the interacting hardware/ base and the following key points. Note: • The front catches should be mounted as far forward as possible •... - Page 6 SPEX SEAT BASE USER MANUAL WWW.SPEXSEATING.COM Remove the bottom screw on all four of the clamps and loosen the upper screw (enough that the clamp will fit over the canes). Position the base on the canes, slide the hardware out to the canes and rotate the outer clamp down around the cane.
- Page 7 SPEX SEAT BASE USER MANUAL WWW.SPEXSEATING.COM Instructions for Use Removing the Base Press the red levers engaging the plunger so they are held in the unlocked position. Lift the front of the base and remove. Mounting the Base With the base centralised, rest the back corners of the base on the mounts.
-
Page 8: Transit Safety - Assembly, Use, Maintenance & Limitations
Spex Seating System has been designed to accommodate the proper use of vehicle-anchored belt restraints. Spex achieved a rating of Excellent (16 out of 16), for ease of properly positioning a belt restraint, and the degree to which proper belt restraint can be achieved, based on the methods of Annex D. The following items of the Spex Seating System have been tested and are suitable for use in a motor vehicle: •... -
Page 9: Transit Safety - Correct Positioning Of Belt Restraints
SPEX SEAT BASE USER MANUAL WWW.SPEXSEATING.COM Correct Positioning of Belt Restraints When using the Spex Seating System as a vehicle seat, both a pelvicbelt restraint and shoulder-belt restraint must always be used. To correctly position the belt restraints on the wheelchair occupant, the following must be ensured: •... -
Page 10: Warnings
ISO 7176-19 and installed, used and maintained according to the manufacturer’s instructions. 5. The Spex Seating System must only be used as indicated in this user manual. 6. Both pelvic and shoulder-belt restraints as a part of a complete... - Page 11 WARNING contact with the wheelchair occupant’s shoulder and chest. 8. cont... The Spex Seating System must only be used for forward-facing seating in motor vehicles. In order to reduce the potential of injury to vehicle occupants, wheelchair-mounted rigid trays not specifically intended for use during travel in motor vehicles must be: a.
- Page 12 WWW.SPEXSEATING.COM SPEX SEAT BASE USER MANUAL WARNING Both pelvic-belt and shoulder-belt restraints that comply with WC18 and/or WC19 should be used to limit occupant movement in a crash and reduce the likelihood of occupant ejection from the vehicle and/or injurious contact of the occupant with the vehicle interior.
-
Page 13: Warranty
Warranty Each Spex Seat Base is carefully inspected to provide peak performance and is guaranteed to be free from defects in materials and workmanship for a period of 12 months from the date of purchase, provided normal use. Should a defect in materials or workmanship occur within 12 months from the original date of purchase, Spex Seating will, at its option, repair or replace it without charge. - Page 14 SPEX SEAT BASE USER MANUAL WWW.SPEXSEATING.COM...
- Page 15 SPEX SEAT BASE USER MANUAL WWW.SPEXSEATING.COM...
- Page 16 SPEX SEAT BASE USER MANUAL WWW.SPEXSEATING.COM Medicept 200 Homer Ave, Ashland, MA 01721 United States 32 Detroit Drive Tel: +1-508-231-8842 Spex Ltd Rolleston 7675 Phone +64 3 307 9790 New Zealand Fax +64 3 307 2820 BEO MedConsulting Berlin GmbH fasterresults@spexseating.com...
