Summary of Contents for Eddyfi Technologies GEKKO M2M

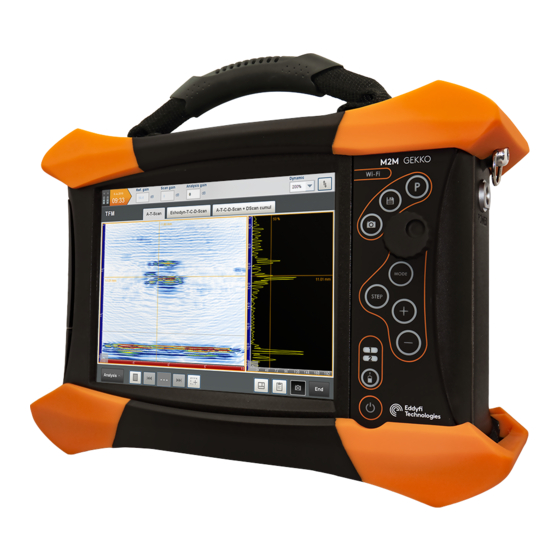

- Page 1 TECHNICAL DOCUMENTATION | M2M GEKKO 32:128 | 64:64 | 64:128 Redacted by Victor FOSSARD Approved by Thierry COUTURIER Date : 21/06/2019 Revision A.7 © 2019 Eddyfi Technologies...
-
Page 2: Table Of Contents
SUMMARY MECHANICAL DRAWING PHASED ARRAY CONNECTOR UT CONNECTORS ENCODER CONNECTOR I/O CONNECTOR POWER CONNECTOR BATTERY SLOT AUTOMATIC BOOT FRONT PANEL ACCESSORIES GLOBAL WARNING BATTERY WARNING CLEANING TECHNICAL SPECIFICATIONS... -
Page 3: Mechanical Drawing
1. MECHANICAL DRAWING... -
Page 4: Phased Array Connector
Connector Utility For electric safety reasons, only accessories approved • Plug Phased-array IPEX probes by Eddyfi Technologies can be used with our system. Before purchasing any probe, please contact us. • Connect probe splitters or probe adaptors • Compatible with IPEX easy-latch adaptor frame:... - Page 5 2. PHASED ARRAY CONNECTOR Connector Mapping Connector Signal Description Signal Name Description User matching signal Phased-array channel ER1 to ER128 Phased-array probe channel 1 to 128* number 1 to 128* For better ultrasound result, all GND Ground pin pin have to be connected to probe ground.
-
Page 6: Ut Connectors
3. UT CONNECTORS Connectors Location Connector Utility 4 independent P/R LEMO allowing to use : • 4 conventional UT probe in pulse-echo mode • 2 pairs of TOFD or 2 Dual element probes Connector Mapping Connector Information Supplier: LEMO Reference: ERN.00.250.CTL Matching Connector UT connector is NimCAMAC standard. -
Page 7: Encoder Connector
4. ENCODER CONNECTOR Connector Location Connector Information Connector Utility Supplier: Connector type LEMO EGG • CONNECT UP TO 3 DIFFERENT ENCODERS: Reference: EGG.1K.316.CLL - +5V TTL inputs - quadrature mode or clock/dir mode - Number of available encoders : 2 or 3 depending on Matching Cable software setup and option. - Page 8 4. ENCODER CONNECTOR Connector Mapping Encoder input 470Ω Buffer Encoder input Front View of the Connector Signal Name Description User matching signal Absolute Max current -50 mA Encoder Phase A/B TTL 5V Max frequency = 4MHz...
- Page 9 4. ENCODER CONNECTOR Connector Signal Description 3/4 Signal Name Description User matching signal If configured as OUTPUT (see in Capture software as below, Synchro1 Input/Output Type ≠ “1-axis encoder +increment”) TTL 5V TTL 5V = PRF = 5V/100ns pulse generated with each Pulser signal (IPEX connector).
- Page 10 4. ENCODER CONNECTOR Connector Signal Description 4/4 Signal Name Description User matching signal If configured as OUTPUT (see in Capture software as below, Synchro2 Input/Output Type ≠ “1-axis encoder +increment”) TTL 5V TTL 5V = PRF = 5V/100ns pulse generated with each Pulser signal (IPEX connector).
- Page 11 5. I/O CONNECTORS Connector Location Connector Information Connector Utility Supplier: Connector type LEMO EGG Outputs currently not driven by the software. Reference: EGG.2K.326.CLL Development in progress. Matching Cable Supplier: LEMO (Connector Male 26 Pin) Reference: FGG.2K.326.CLAC65...
- Page 12 5. I/O CONNECTORS Connector Location Connector description • 1x USB3.0: high-speed USB, up to 625 MB/s data transfer (depending on the USB3.0 flash drive capabilities) • 3x USB2.0: up to 30MB/s data transfer • USB 5VDC protected at 0.5A, by resettable fuse (system reboot required).
-
Page 13: Power Connector
6. POWER CONNECTOR Connector Location Connector Utility • This connector is the global system power supply. • When plugged, the external power supply is used to : • Power the system • Charge batteries if they are not completely charged •... - Page 14 6. POWER CONNECTOR Connector Mapping When the power cable is plugged, the position of the system should allow to easily unlock the connector. This is in order to shut down the unit in case of emergency.
-
Page 15: Battery Slot
7. BATTERY SLOT 2-battery slot Battery Charge-discharge WHEN PLUGGED, THE WALL ADAPTOR : • Provide power for batteries charge (system power off) : - If only one battery is plugged, it is charged in 3 hours (if completely low). - If two batteries with a different charge level are plugged, the internal charger charges the lower battery at first. -
Page 16: Automatic Boot
8. AUTOMATIC BOOT Without any batteries WHEN no batteries are in the GEKKO: • Plugging the external power supply or supplying the external power supply with 110/240 VAC automatically boots the unit • This feature can be used to AUTOMATICALLY and REMOTELY boot the unit up. -
Page 17: Front Panel
9. FRONT PANEL Front Panel View Meaning BATTERY STATUS • Push the « BATTERY » button to check the battery level : • GREEN for 5 seconds - Charged above 30% • ORANGE for 5 seconds - Charged between 10 to 30% •... - Page 18 9. FRONT PANEL Front Panel View Meaning CLICKABLE SCROLL WHEEL • TURN the wheel to adjust values, cursors, … • PRESS the wheel to validate the new value, position, … OTHERS For other buttons see software user guide. CLICKABLE SCROLL WHEEL...
-
Page 19: Accessories
10. ACCESSORIES Accessory Name Description Picture Easy-Latch This accessory allows the connection of a probe with an EASY_LATCH connector EDDYFI ref : to GEKKO system. IMP_0061-EASYLATCH-ADAPT Dongle Wi-Fi This accessory allows WiFi connection to the GEKKO system. EDIMAX ref: EW-7811Un... - Page 20 10. ACCESSORIES_PROBE Accessory Name Description Picture This adaptor allows connection of a IPEX -> FRB Adaptor probe with HYPERTRONICS (FRB) connector to the GEKKO EDDYFI ref: ADAPT-FRB-IPEX GEKKO system. Available splitter models : SPLITTER 1x64 -> 2x32 SPLITTER 1x128 -> 4x32 SPLITTER 1x128 ->...
- Page 21 10. ACCESSORIES_BATTERIES Accessory Name Description Picture BATTERY Additional battery. 10.8V – Lithium Ion EDDYFI ref : ADD-BATT-NI2020 8.7Ah / 94Wh BATTERY CHARGER External dual battery charger able to charge 2 GEKKO batteries in 4hours. EDDYFI ref : CHARG-2BATT-CH5050A...
- Page 22 10. ACCESSORIES_CABLES Accessory Name Description Picture Adaptor for MicroD25 system This cable allows to connect MicroD25 EDDYFI ref : CAB_0069D encoder type to GEKKO system. Adaptor for SUBD15 system This cable allows to connect SUBD15 EDDYFI ref : CAB_0104A encoder type to GEKKO system.
-
Page 23: Global Warning
Please consult your EDDYFI TECHNOLOGIES local representative for instructions on returning the unit or find feasible collection arrangements in your country. - Page 24 11. GLOBAL WARNINGS To avoid injury, be careful not to place your fingers between the support leg and body of the system and in any connector of the system. Avoid touching the inner conductor of I-PEX and LEMO connectors to reduce the risk of electric shock. The tension of the inner conductor of UT connectors can reach 315 V and the voltage of the inner conductor PA connector can reach 135 V.
-
Page 25: Battery Warning
12. BATTERY WARNINGS Do not attempt to open, crush or puncture the battery; this may cause injury. Do not incinerate. Keep the battery away from fire and other sources of extreme heat. Exposure of battery to extreme heat sources (over 80 °C) may cause explosion. -
Page 26: Cleaning
13. CLEANING External surfaces of GEKKO, that is to say the housing, protector of the LCD screen can be cleaned when necessary. Make sure the unit is closed, power cord disconnected, and batteries removed. Disconnect all cables and connectors and check that the rubber protectors are closed on all external GEKKO ports. Make sure that the battery compartment cover is securely closed. -
Page 27: Technical Specifications
14. TECHNICAL SPECIFICATIONS I N S T R U M E N T C O N N E C T I V I T Y Size 400,5 mm x 273mm x 131,5mm Phased-Array IPEX (x1) 6,4 Kg with 1 battery LEMO-00 (x4) UT-TOFD Weight (g) - Page 28 14. TECHNICAL SPECIFICATIONS P h a s e d - A r r a y F M C / T F M Real-time, up to 128 elements P u l s e r 256 Kpi Number of channels Up to 128* Up to 110 Hz at 65 Kpi Refresh rate Pulse type...
- Page 29 14. TECHNICAL SPECIFICATIONS C o n v e n t i o n a l U T D i g i t i z e r Amplitude resolution 16 bits P u l s e r 1 to 32 Real-time averaging Number of 4 –...
- Page 30 Contact us Any questions : Support-m2m@eddyfi.com Hardware problems with your unit : MaintenanceEddyfiEurope@eddyfi.com...
