iDus 416 Quick Start Guide
1
Preparing Your Facility
Handle the camera and accessories with care.
The iDus weighs 2.0 kg [4 lb 8 oz].
Observe anti-static precautions when
installing the camera.
Ensure 90 mm clearance around camera
and power supply vents (Do not block
vents when operating on benchtop).
Operation of the camera close to intense
pulsed sources (e.g. plasma and X-ray
sources) may compromise performance.
Keep dry, <70% humidity non-condensing.
Use correct power supply and cables.
Operate between 0°C and 30°C
Store between -25°C and 50°C.
Refer to the cooling guidelines in your user manual
for further information on use of optional water/
coolant systems
Refer to the user manual for further information.
2
Unpacking the Boxes
1 2
Software or Driver

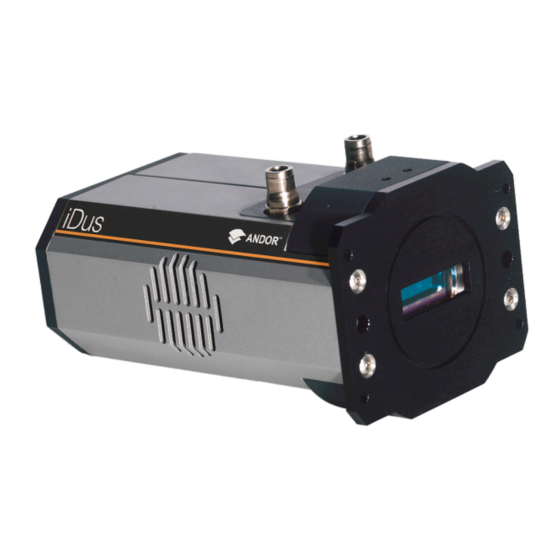

iDus 416
Camera CD and User
Manual on CD
Allen Key (x2)
3
Installing Software (Solis or SDK2)
You must have administrator access on your PC to perform this installation.
The same instructions cover the installation procedure for Andor's Solis or SDK software, which is used in
conjunction with third party software. If you are planning to run your camera through a third party interface you will
require the Andor Drivers, called SDK.
Switch on the PC, insert CD and run the "setup.exe" file on the CD or
download location.
• Confirm the version of software.
• Follow the on screen prompts.
• Select the installation directory when prompted.
• When prompted for camera type select iDus.
• On the final window click on "Install". During the installation a
number of other windows will appear as various drivers are installed.
• To complete the installation, when prompted select "Yes, restart the
computer now" and click on the finish button.
For more information visit: andor.com/software/software_support/
3
Country Specific
Power Supply
Power Cord
BNC-SMB
Quick Start
Cable
Guide
Please turn over
USB Cable
