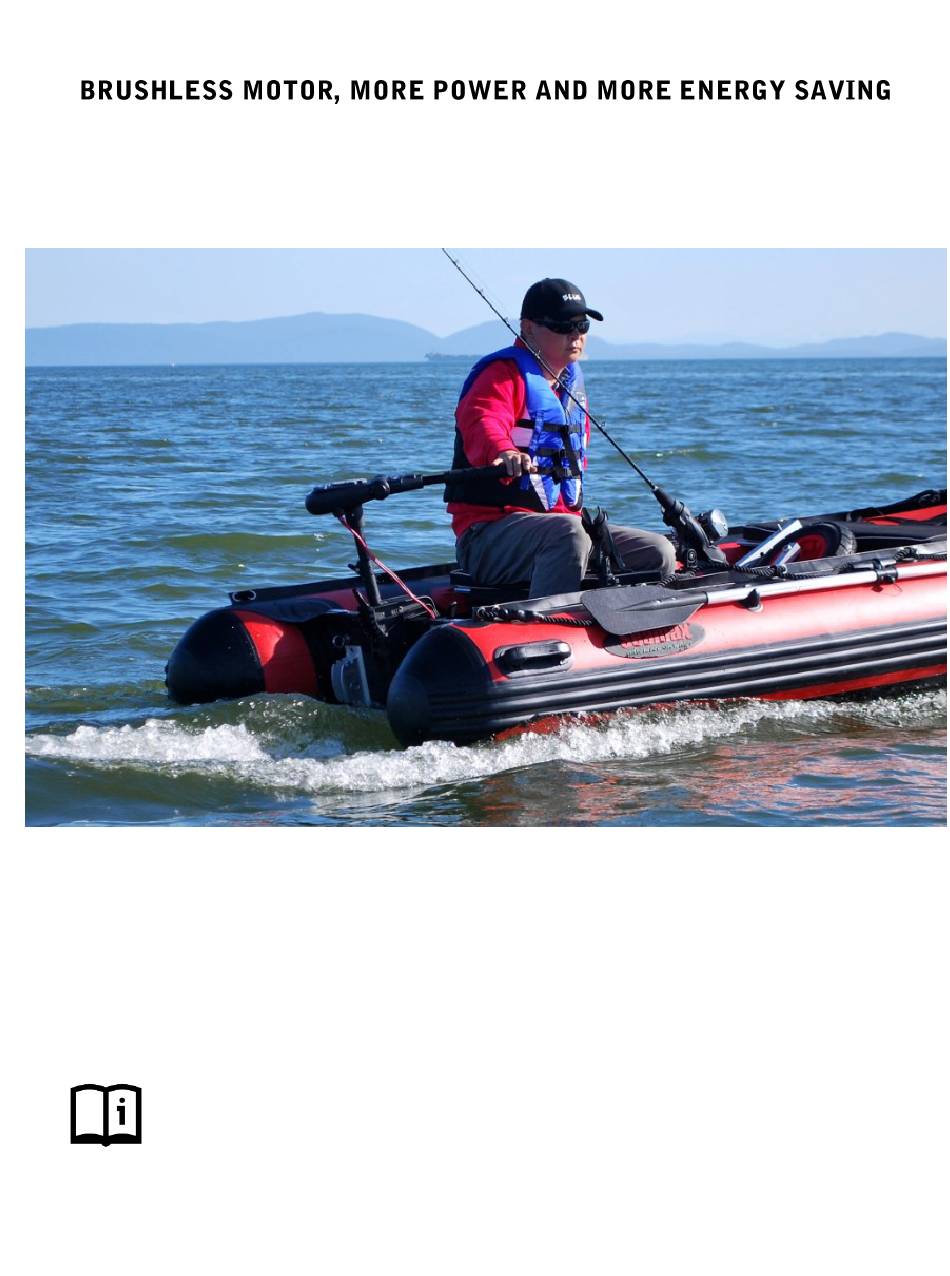

Seamax PowerMax Trolling Motor
Thank you for choosing the Seamax SpeedMax brushless electric trolling motor. The quality
product is well designed, engineered, and manufactured to provide you portable superior
green power for years of enjoyment. To constantly improve the product, we reserve the right
to change parts and components without further notice.
INSPECT THE PRODUCT AND CAREFULLY READ THE INSTRUCTIONS
BEFORE OPERATING IT TO AVOID PERSONAL INJURY AND PRODUCT
DAMAGE. RETAIN THIS USER MANUAL FOR FUTURE REFERENCE.
User Manual
Advertisement
Table of Contents
Related Manuals for Seamax PowerMax SMX2HP35
Summary of Contents for Seamax PowerMax SMX2HP35
- Page 1 Seamax PowerMax Trolling Motor User Manual Thank you for choosing the Seamax SpeedMax brushless electric trolling motor. The quality product is well designed, engineered, and manufactured to provide you portable superior green power for years of enjoyment. To constantly improve the product, we reserve the right to change parts and components without further notice.
- Page 2 This Digital Controlled Trolling motors equiped with a brushless 12V or 24V AC motor, it can provide 3 times longer run times in average on a single battery charge. It is excellent for propulsion of wide range of boats and waterway. Overall our Seamax PowerMax trolling motor...
-
Page 3: Limited Warranty Information
DURATION OF COVERAGE All new Seamax SpeedMax electric trolling motors are warranted to the original purchaser to be free from defects in material and/or workmanship for up to two (2) years from the date the product is sold. Warranty is NOT transferable to any subsequent purchasers. -
Page 4: Termination Of Coverage
Damage caused by dropping, crashing, cuts, piercing or other man-made behaviors; The end-user did not follow the instruction manual; The end-user ignored the SEAMAX warning information; Placed or changed the motors under wet circumstances which may damage the batteries, the circuit or other electric parts. User used parts or accessories that are not genuine SEAMAX components. -
Page 5: General Information
2. GENERAL INFORMATION BOATER'S RESPONSIBILITIES Choose a good weather for your outdoor activity. Personal life-jacket is needed at all time. The operator (driver) is responsible for the correct and safe operation of the boat and safety of its occupants and general public. It is strongly recommended that each operator (driver) read and understand this entire manual before operating the trolling motor. -
Page 6: General Practice
A spinning propeller, a moving boat, or any solid device attached to the boat can cause serious injury or death to swimmers. Stop the trolling motor immediately whenever anyone in the water is near your boat. Whenever the boat is in motion, observe the location of all passengers. A sudden reduction in boat speed, such as a sharp change of boat direction, could throw them off the boat. -
Page 7: Specifications
When the circuit breaker cuts off the power, disconnect the battery first, then check and clean any obstacles. At last, press the reset button on the circuit breaker and reconnect the battery, the electric outboard motor is able to continue the work. -
Page 8: Package Contents
PACKAGE CONTENTS 1x Trolling motor, Propeller and installation Kit with spare parts, User Manual Propeller Propeller Wrench Stainless Drive Washers Pins Jumper Nuts Wire Sacrificial User Anodes Manual ▪ Unplug the trolling motor after each use and when charging the battery. ▪... - Page 9 WIRING AND BATTERY Route the trolling motor wires on the opposite side of the boat from other boat wiring. Sensitive electronics, such as depth finders, should be connected directly to the main engine battery. Single battery systems require separate connection cables 12V/2HP Power Capacity Display Light: Over 12.3V - 3 lights / 11.5V to 12.3V - 2 Lights / 9-11.5V - 1 Light 24V/3HP Power Capacity Display Light Over 24.6V - 3 lights / 23V to 24.6V - 2 Lights / 18-23V - 1 Light Motor Unit Assembly &...
- Page 10 BATTERY 12V Model: Min 1x 12V 105AH (Group 27) deep cycle marine battery, Suggest AGM or Lithium Battery 24V Model: Min 2x 12V 105AH (Group 27) deep cycle marine battery, Suggest AGM or Lithium Battery To extend running time, use a larger capacity battery or an additional battery. As a general rule, deep cycle batteries with a higher amp‑hour rating or reserve capacity rating will provide longer run time and better performance.
-
Page 12: Installing The Propeller
3. INSTALLATION AND OPERATION INSTALLING THE PROPELLER ▪ Make sure the motor is disconnected from the battery before installing or replacing the propeller. ▪ Use the provided propeller tool for the installation. Use of inapproiate tool may damage the motor and propeller. ▪... -
Page 13: Adjusting The Depth
ADJUSTING THE DEPTH ▪ The depth of the motor can be adjusted up and down by loosening the adjustable depth collar tension knob. Set the motor to the desired depth then retighten the tension. ADJUSTING THE STEERING RESISTANCE ▪ To adjust the steering resistance of your motor, simply tighten or loosen the tension knob. -
Page 14: Battery Indicator
BATTERY INDICATOR ▪ The battery indicator displays the realtime battery level. Recharge the battery when its power level is decreased to 20%. KEY FEATURES ▪ 12V or 24V brushless electric motor to provide 65 or 85 pounds (2HP or 3HP equivalent) thrust output. Quiet and smooth operation allows you to get closer to your fishes. -
Page 15: Troubleshooting
TROUBLESHOOTING MORE ATTENTION During the usage of the electric outboard motor, the propeller is possible to get stuck by the weeds, fishing lines and fishing webs, or sometimes due to the variance of the water depth, the propeller is covered by the silt. If those situations stated above happen, please disconnect the battery in time and clean up the propeller. - Page 16 ▪ Speed coils in lower unit may be burned. RETURN TO SELLER Demestic buyer can contact the original seller for your motor service. Online buyer can contact Seamax toll free support line: 1-877-907-7766 or email support@seamaxmarine.com for all your inquiries. Seamax can provide an UPS return waybill to help buyer send the item to an authorized service depot if under warranty coverage.
Need help?
Do you have a question about the PowerMax SMX2HP35 and is the answer not in the manual?
Questions and answers
le moteur donne des coups comme si une dent sur une gear qui serais briser à tout les 10 secondes à 50% et plus rapidement que se passe t'il
Possible causes for the Seamax SMX2HP35 motor making knocking sounds every 10 seconds at 50% power include:
- A cracked or chipped permanent magnet, which can cause whining or grinding noises.
- A bent armature, which may cause uneven rotation and knocking.
- A faulty or poorly installed propeller or damaged drive pin.
- Internal motor blockage or locking, which should be avoided to prevent damage.
Inspect the motor for these issues and ensure all parts are in good condition and properly installed.
