Seamax PowerMax Trolling Motor
Thank you for choosing the Seamax PowerMax brushless electric trolling motor. This quality
product is well designed, engineered, and manufactured to provide you the portable superior
green power for years of enjoyment. To constantly improve the product, we reserve the right
to change parts and components without further notice.
INSPECT THE PRODUCT AND READ CAREFULLY THE INSTRUCTIONS
BEFORE OPERATING IT TO AVOID PERSONAL INJURY AND PRODUCT
DAMAGE. RETAIN THIS USER MANUAL FOR FUTURE REFERENCE.
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Seamax PowerMax Series
Summary of Contents for Seamax PowerMax Series
- Page 1 Seamax PowerMax Trolling Motor User Manual Thank you for choosing the Seamax PowerMax brushless electric trolling motor. This quality product is well designed, engineered, and manufactured to provide you the portable superior green power for years of enjoyment. To constantly improve the product, we reserve the right to change parts and components without further notice.

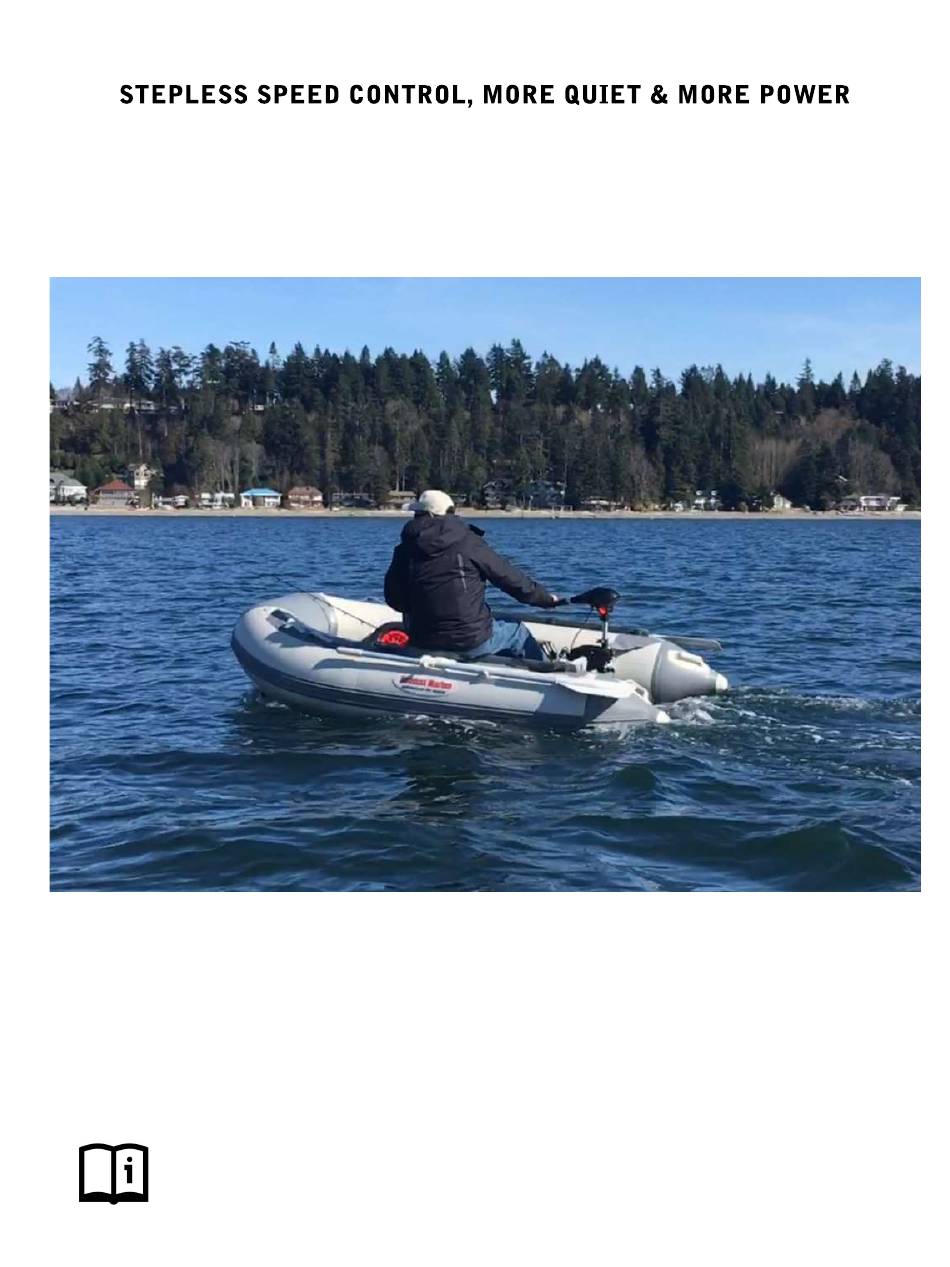

- Page 2 PowerMax – LONGER RUN TIME IN AVERAGE DIGITAL CONTROL FOR VARIABLE SPEED This powerful new trolling motor is equipped with stepless adjustable speed control and a safety lanyard. The digital technology provides stepless forward and reverse speed control, and easily reaches the maximum speed. With the benefit of the digital controller, this variable speed PowerMax trolling motor lets you dial in your requried speed, and it delivers the exact power as you need, helping to conserve the battery for a full day of fishing or other use.
-
Page 3: Limited Warranty Information
DURATION OF COVERAGE All new Seamax SpeedMax electric trolling motors are warranted to the original purchaser to be free from defects in material and/or workmanship for two (2) years from the date the product is sold. Warranty is NOT transferable to any subsequent purchasers. -
Page 4: General Information
LIABILITY FREE CLAUSE Seamax is not responsible for any damage caused by dropping, crashing, cuts, piercing or other man-made behaviors; the failure of end-user to follow instruction manual; the ignorance of end-user on SEAMAX warning information; the misplace of the motors under wet circumstances; or the use of parts or accessories that are not genuine SEAMAX components. -
Page 5: General Practice
It is required by law that NEVER be under the influence of alcohol or drugs while boating. Alcohol or drug use impairs your judgment and greatly reduces your ability to react quickly. Passenger boarding - Stop the trolling motor whenever passengers are boarding or unloading. ... -
Page 6: Package Content
PACKAGE CONTENT 1x trolling motor, propeller, installation kit with spare parts, and user manual Propeller Propeller Wrench Stainless Drive Washers Pins Jumper Nuts Wire Sacrificial User Anodes Manual Unplug the trolling motor after each use, and when charging the battery. ... - Page 7 WIRING AND BATTERY Route the trolling motor wires on the opposite side of the boat from other boat wiring. Sensitive electronics, such as depth finders, should be connected directly to the main engine battery. Single battery system requires separate connection cables. BATTERY 12V Model: 1x 12V 105AH (Group 27) deep cycle marine battery suggested 24V Model: 2x 12V 105AH (Group 27) deep cycle marine battery suggested...
-
Page 8: Installing The Propeller
The red wire should connect to positive and the black wire should connect to negative. It is recommended to install a circuit breaker in line with positive lead. The battery should always be kept in a well ventilated location. USE DEEP CYCLE BATTERY FOR THE MOTOR. IMPROPER USE OF BATTERY WOULD CAUSE DAMAGE. -
Page 9: Tilting The Motor
TILTING THE MOTOR Use the mounting bracket’s tilting lever adjust the shaft angle as needed. When adjusting the tilt angle of the motor, NEVER put your hands between the shaft and the hull. ADJUSTING THE DEPTH The depth of the motor can be adjusted up and down by loosening the adjustable depth collar tension knob. -
Page 10: Adjusting The Speed
ADJUSTING THE SPEED The motor is equipped with a stepless speed controller. Motor stops at Mark ZERO. Rotate the handle clockwise for stepless forward speeds. Turn the handle couterclosewise for backward speeds. BATTERY INDICATOR The battery indicator displays the realtime battery level. -
Page 11: Troubleshooting
TROUBLE SHOOTING During the usage of the electric outboard motor, the propeller is possible to get stuck by weeds, fishing lines or fishing webs. Sometimes due to the variance of the water depth, the propeller is covered by the silt. If any of those situations stated above happens, please disconnect the battery in time and clean up the propeller. -
Page 12: Motor Loses One Or More Speeds
Speed coils in lower unit may be burned. RETURN TO SELLER Domestic buyer can contact the original seller for the motor service. Online buyer can contact Seamax at toll free support line: 1-877-907-7766 or email support@seamaxmarine.com for all any inquiries.
