ASSEMBLY INSTRUCTIONS
'Hutt'
S2001

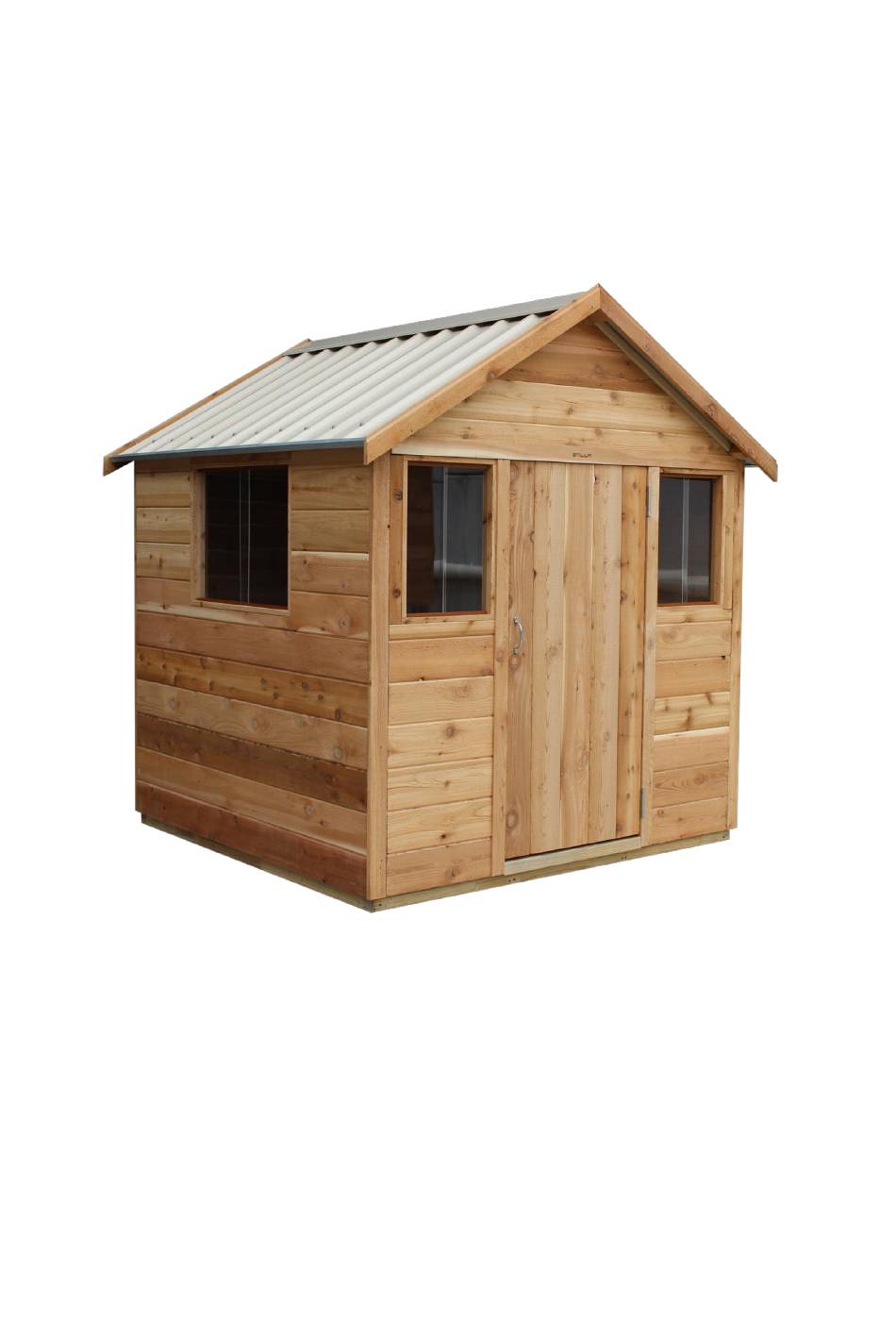

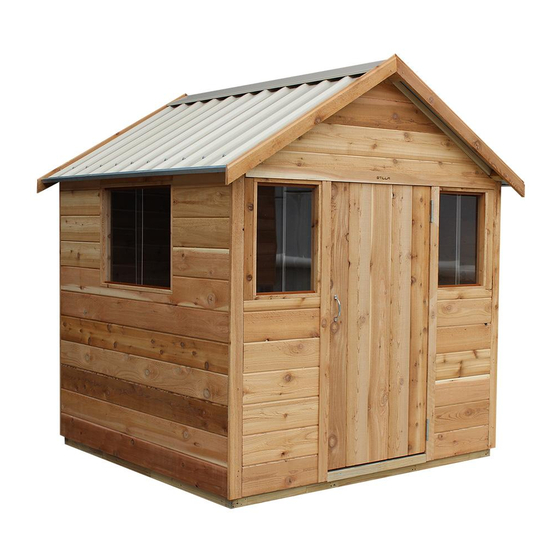

Every part needed to construct your cubby is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hutt and is the answer not in the manual?

Questions and answers

Related Manuals for STILLA Hutt

Summary of Contents for STILLA Hutt

  • Page 1 STILLA ASSEMBLY INSTRUCTIONS ‘Hutt’ S2001 Every part needed to construct your cubby is included inside the pack; cedar panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully unpack all the parts & check against the parts checklist before contacting...
  • Page 2 • Remove all parts from packages and place in a safe place close to assembly area. • Review all instructions; continue to refer to instructions throughout assembly – step by step. Preparing your site • Choose your site carefully, site surface must be level. HUTT PARTS CHECKLIST Part Code Checked Part Description 1500mm Back Panel...
  • Page 3 1.0 - ASSEMBLY – FLOOR KIT Fasten through EP into DJ using 4x75N per join. Fasten through EP into SJ using 2x75N per join. Place floor frame in desired position and ensure level & square. FRONT OF HUTT P a g e...
  • Page 4 STEP 1.1 FLOOR KIT 1.1 - ASSEMBLY PARTS – FLOOR KIT PART CODE QTY DESCRIPTION Floor board 50PS 50mm Phillips head screw 1.1 - ASSEMBLY – FLOOR KIT Place floor boards on floor and fasten to floor frame using 12x50PS per sheet in positions shown.

  • Page 5: Wall Assembly

    STEP 2.0 WALL ASSEMBLY 2.0 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 1500mm Back panel 1500mm Side panel 65HHS 65mm Hex head screw 2.0 - ASSEMBLY – WALL ASSEMBLY Screw through BP into SP at top and bottom. Holding studs flush on the outside. Note: Window panel can go either side.
  • Page 6 STEP 2.1 WALL ASSEMBLY 2.1 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 1500mm Window panel - peel protective cover off Perspex windows 65HHS 65mm Hex head screw 2.1 - ASSEMBLY – WALL ASSEMBLY Screw through BP into WP at top and bottom, holding studs flush on the outside. STEP 2.2 WALL ASSEMBLY 2.2 - ASSEMBLY PARTS –...
  • Page 7 STEP 2.3 WALL ASSEMBLY 2.3 - ASSEMBLY PARTS – FASTEN TO FLOOR PART CODE QTY DESCRIPTION 65HHS 65mm Hex head screw 2.3 - ASSEMBLY – FASTEN TO FLOOR Position cubby with wall cladding overhanging floor on sides and back. Screw through bottom plate on wall panels using 2 x 65HHS per panel. STEP 3.0 GABLE ASSEMBLY 3.0 - ASSEMBLY PARTS –...
  • Page 8 STEP 3.1 GABLE ASSEMBLY 3.1 - ASSEMBLY PARTS – GABLE ASSEMBLY PART CODE QTY DESCRIPTION Back gable 65HHS 65mm Hex head screw 3.1 - ASSEMBLY – GABLE ASSEMBLY Holding back gable (BG) in position, fasten up through back panel at each end. P a g e...

  • Page 9: Roof Assembly

    STEP 3.2 ROOF ASSEMBLY 3.2 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION Bottom batten Top batten Rafter 100BS 100mm Batten screw 3.2 - ASSEMBLY – ROOF ASSEMBLY Slide rafters (R) into checked out sections in battens (BB & TB). Fasten through BB & TB into R using 1 x 100BS per join.
  • Page 10 STEP 3.3 ROOF ASSEMBLY 3.3 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 980mm Roof Sheet 40RS 40mm Roof screw 25RS 25mm Roof Screw 3.3 - ASSEMBLY – ROOF ASSEMBLY Lay roof frame on a hard surface. Position 1 roof sheet (RS) flush at top and flush with end of roof battens.
  • Page 11 STEP 3.4 ROOF ASSEMBLY 3.4 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 980mm Roof Sheet (Small Sheet) 40RS 40mm Roof screw 25RS 25mm Roof screw 3.4 - ASSEMBLY – ROOF ASSEMBLY Lay last cut back roof sheet in position. Fasten sheets in position following number sequence shown.
  • Page 12 STEP 3.5 ROOF ASSEMBLY 3.5 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 40RS 40mm Roof screw 25RS 25mm Roof screw 3.5 - ASSEMBLY – ROOF ASSEMBLY Complete screwing roof off at top. 1 x 25RS in pan beside every rib. Once top complete screw bottom off using 1 x 40RS in every rib.
  • Page 13 STEP 3.6 ROOF ASSEMBLY 3.6 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 1680mm Chanel Self-tapping screw 3.6 - ASSEMBLY – ROOF ASSEMBLY Fasten capping (C) to roof using 4 x ST. Bent up edge at top 12 | P a g e...
  • Page 14 STEP 3.7 ROOF INSTALLATION 3.7 - ASSEMBLY PARTS – ROOF INSTALLATION PART CODE QTY DESCRIPTION Assembled rooves 65HHS 65mm Hex head screw 3.7 - ASSEMBLY – ROOF INSTALLATION Slide roof panel into position with rafters flush with gables on the inside (see diagram). Fasten up through both gables into roof panel.
  • Page 15 STEP 4.1 RIDGE CAP ASSEMBLY 4.1 - ASSEMBLY PARTS – RIDGE CAP ASSEMBLY PART CODE QTY DESCRIPTION 1680mm Ridge cap 40RS 40mm Roof screw 4.1 - ASSEMBLY – RIDGE CAP ASSEMBLY Slide ridge cap (RC) into position. Screw through ridge cap, through 2 rib in and into batten (see diagram).
  • Page 16 STEP 5.0 HANGING DOOR 5.0 - ASSEMBLY PARTS –HANGING DOOR PART CODE QTY DESCRIPTION Hinge Screw Hinge Door Handle 5.0 - ASSEMBLY – HANGING DOOR Screw hinges to door centred over brace on back using HS. Holding door centre of opening, fasten to cubby front panel using HS. Screw door handle in position shown.
  • Page 17 STEP 5.1 DOOR CLIP ASSEMBLY 5.1 - ASSEMBLY PARTS – DOOR CLIP ASSEMBLY PART CODE QTY DESCRIPTION Door Clip 50PS 50mm Phillips screw 5.1 - ASSEMBLY – DOOR CLIP ASSEMBLY Fasten clip to back of door behind door handle using 15mm screws provided. Holding door in closed position with hasp in clip, fasten to cubby wall frame using 1x50PS.
  • Page 18 17 | P a g e...

  • Page 19: Product Maintenance

    TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.stilla.com.au/warranty and complete the online form. We recommend that you complete this step once you have finished installing your product.
  • Page 20 SHOW US YOUR CUBBY We would love to see a photo of your STILLA product installed in your backyard. Please upload this image when completing the warranty registration. Alternatively, you can send the photos by email to sales@stilla.com.au. If you require any assistance, please feel free to call or email.
