Summary of Contents for Vibradorm VFF/CDL-CF-15

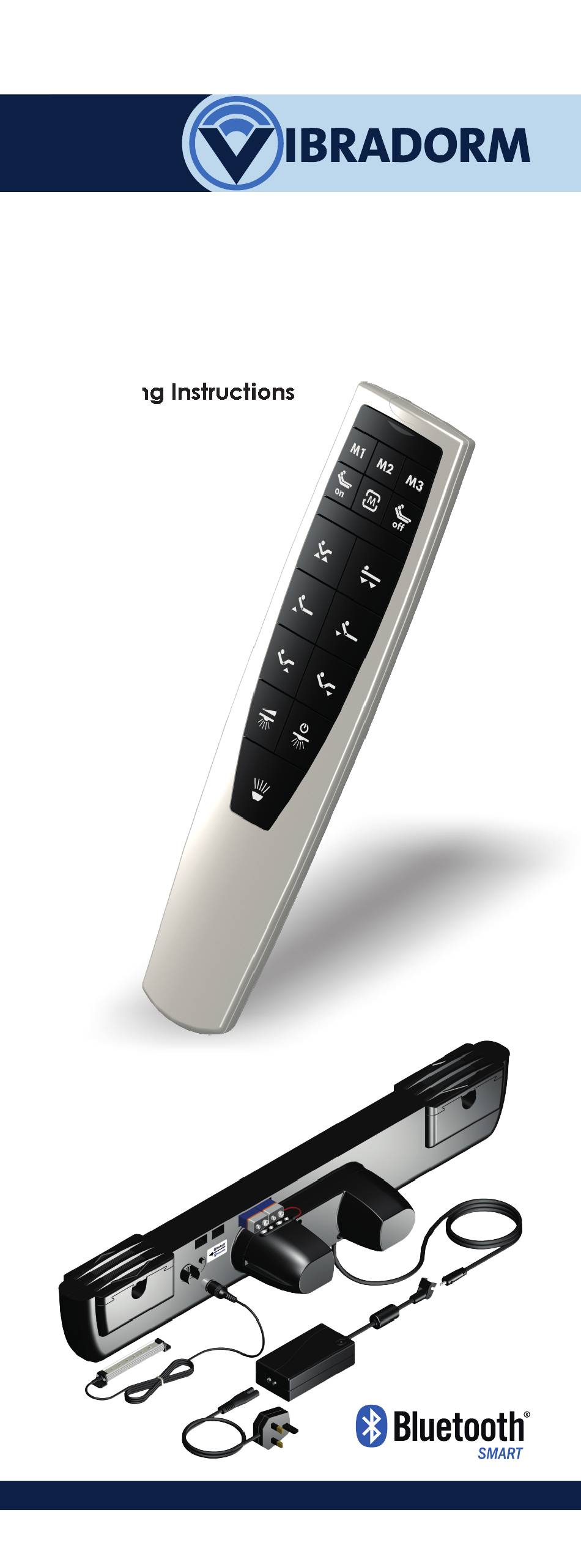

- Page 1 Radio remote control VFF/CDL-CF-15 with Bluetooth-Technology Operating Instructions For adjustable beds with a VIBRADORM dual drive V-MAT-Basic with memory function and LED night light module.
-
Page 2: Foreword
Observe the safety instructions. Disclaimer We would like to point out that the company VIBRADORM GmbH will not assume any liability for injuries or damage that occurs as a result of ■ non-observance of these operating instructions, ■... -
Page 3: Table Of Contents
Table of contents Table of contents Foreword Revision history In your own interest Disclaimer Manufacturer's address Table of contents General ......4 How to use these instructions . -
Page 4: General
Information about these operating instructions These operating instructions serve the successful and safe use of the radio remote control VFF/CDL-CF-15. The operating instructions will help you to avoid dangers, and minimise repairs and failures. These operating instructions were compiled with great care. -
Page 5: Intended Use
Safety instructions Intended usage The radio remote control VFF/CDL-CF- 15 is designed for: • operating VIBRADORM dual drives. • use within the home Caution The radio remote control VFF/CDL-CF- 15 is only designed for the designated purpose. Any other use is deemed improper and can lead to accidents or the destruction of the device. -
Page 6: Information About Radio Operation
Safety instructions ambient temperature for a few hours before use, otherwise it may suffer damage as a result of condensation. • Never use the remote control close to devices that emit strong electromagnetic fields. This could impact on its function. •... -
Page 7: Batteries
Safety instructions Household and similar Electrical App- liances) and carries the CE mark. If you use a Medical Device such as pacemaker you may wish to contact your specialist to answer any questions. Batteries Caution • Keep batteries out of reach of children. -
Page 8: Remote Control & Dual Drive Overview
Remote control & dual drive overview 9 ß ß... - Page 9 Status LED All drives up All drives down Back drive up Back drive down Leg drive up Leg drive down Parallel function on Parallel function off Memory position 1 ß Memory position 2 Memory position 3 Save memory positions LED night light bar on/off LED night light bar dim Torch LED on/off Torch LED...
-
Page 10: Commissioning
Commissioning Commissioning Inserting the batteries Insert the supplied batteries (2x 1,5V AAA LR03) into the battery compart- ment as shown in the picture. Ensure that the batteries are inserted in the right direction (+/-)! Once the batteries have been inser- ted, close the battery compartment lid again and the radio remote control is operational. -
Page 11: Teach-In Of A Second Dual Drive
Commissioning Teach-in of a second dual drive The radio remote control VFF/CDL-CF- 15 can operate two dual drives simultaneously (Parallel function). For this purpose, a teach-in process for the second dual drive must be carried out. After you carried out the teach-in process for the first dual drive (see page 10), you carry out the following process for the second dual drive:... -
Page 12: Operation
Operation Operation Status LED When a button is pressed, this LED lights up. If the button is kept pressed, the LED flashes. Background illumination The radio remote control is equipped with a keypad background illumi- nation. It is switched on, when the remote control is moved or any button is pressed, and turns off after approx. -
Page 13: Memory Positions
Operation The parallel function will not synchronize the drives, they will just move simultaneously. Depending on the load of each drive, over time there might show differences of the tilt angles of the back and leg motors. In this case use button to move all drives completely up. -
Page 14: Night Light Function
Operation Night light function Caution Do not look directly into the night light LEDs! • Press button briefly to switch the LED module on. • Press button and keep it pressed. The LED module is now controlled lighter or darker until the end point (brightest or darkest) is reached. -
Page 15: Reset To Factory Settings
Reset to factory settings Reset to factory settings Resetting the remote control: • Simultaneously press and hold the buttons • The status LED starts flashing. • When the status LED is steady, release the buttons. • The status LED goes off, the remote control is reset. -
Page 16: Malfunctions / Troubleshooting
Tech. data, maintenance, disposal Malfunctions / troubleshooting Before contacting the service office of the furniture manufacturing company, please try the following in the event of a malfunction: • Check to ensure that the dual drive VMAT-Basic is connected to the mains supply (power socket). -
Page 17: Disposal
Disposal of the manual radio remote control VFF/CDL-CF-15 in Germany is subject to the Electrical Equipment Act, internationally to the EU Directive 2011/65/EU RoHS or the respective national laws. -
Page 18: 10 Attachment
Attachment 10 Attachment 10.1 Operation via a smartphone or tablet PC The smartphone or tablet must support Bluetooth 4.0 (Bluetooth Smart, BLE, Bluetooth Low Energy)! You will need to download and install an app to operate the dual drive via your smartphone or tablet PC. - Page 20 It is strictly forbidden to duplicate this document in any form without the prior consent of the company VIBRADORM GmbH. VIBRADORM GmbH is not liable for any errors in this document or for any ensuing damages connected to the delivery, performance or use of this material.
