Briese Cinema H5 Manual

Attention: Don`t use the H 5 lamp head on dimmable mains
1. Turn on
After plug in the STANDBY-LED start to blink and the lamp head is on standby.
Push STANDBY (red button). The H5 is in working condition now and the green LED is on.
All channels will have the last used settings.

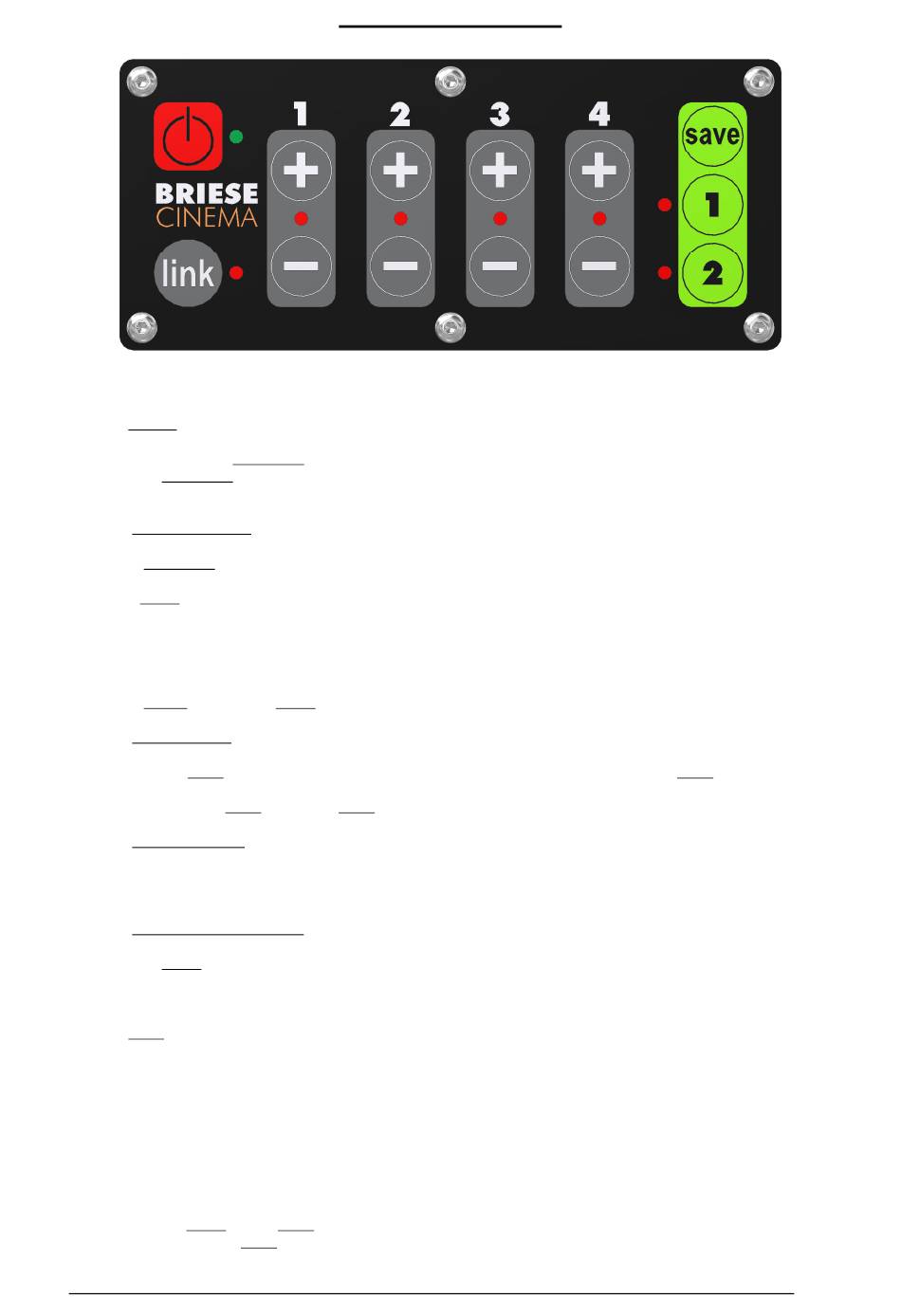

2. Description buttons
1. STANDBY left up: on/off button LED green: On
2.LINK - button: Synchronized channel 2 - 4 for brightness on channel 1
3. Key panel 1"+", 1"-" until 4"+", 4"-" to control the brightness for each channel
"+" to raise the brightness, "-" to reduce the brightness
4. SAVE - button: Push SAVE to storage brightness settings on 2 storage places
3. Synchronization
Enter the LINK - button, then the channels 2-4 will reach the brightness of channel 1. The LINK - LED is on.
With the "+" and "-" buttons for channel 1 all 4 channels can be adjusted simultaneous with the same brightness.
If you enter the LINK - button the LINK - LED will go off and the link modus is reversed.
4. Change brightness
All channels on with the LED lamp. To turn them on push "+". You will have the lowest power.
Push "+" again to raise the brightness. Push "-" to reduce the brightness.
5. Save settings and recall data
Push SAVE and button 1 or 2 simultaneously to save the current settings. The LED will blink 3 times.
To access the settings confirm buttons 1 or 2. The LED send a signal for the settings.
LED will go off if you change the data.
6. DMX (Please note the manual of your DMX device)
You can also use the 5 DMX channels for using the lamp head.
1. DMX – base channel: H5 on/standby, data 0 is standby,
all others data will turn on the lamp head.
2. DMX – channel: Lamp channel 1 level accordant the DMX data
3. DMX – channel: Lamp channel 2 level accordant the DMX data
4. DMX – channel: Lamp channel 3 level accordant the DMX data
5. DMX – channel: Lamp channel 4 level accordant the DMX data
Press the SAVE and the LINK button simultaneously. The first channel with the higher data 0 will be the base
channel. After the LINK – LED blinks 3 times the DMX channel has been programmed successfully.
Briese Lichttechnik GmbH, Semperstrasse 28-30, 22303 Hamburg, Tel. 040-780908-0
M A N U A L H 5
LED green blinking: Standby
