Summary of Contents for Briese E-Focus

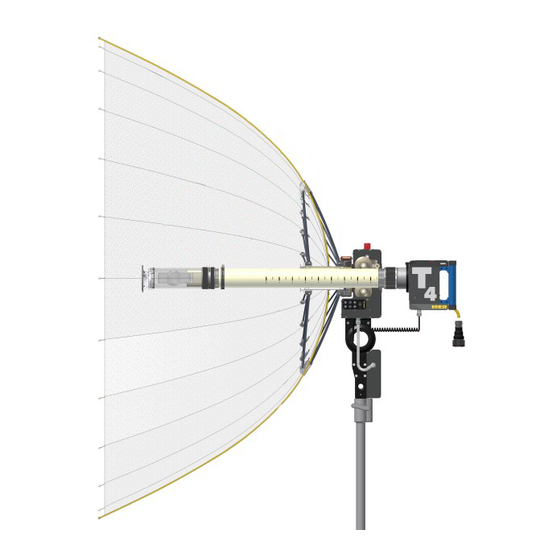

  • Page 2 Assembly instructions for the E- Focus: 1. Put up the tripod (1) 2. Assemble the E- Focus (2) on the tripod 3. Fasten the Focus reflector (4) to the E- Focus and open the red shutter lever (3). Now introduce the open reflector clamped to the retaining ring into the umbrella holder and close the red shutter lever 4.
  • Page 3 Assembly instructions for the E- Focus: 1. Put up the tripod (1) 2. Assemble the E- Focus (2) on the tripod 3. Fasten the Focus reflector (4) to the E- Focus and open the red shutter lever (3). Now introduce the open reflector clamped to the retaining ring into the umbrella holder and close the red shutter lever 4.
  • Page 5 Aufbauanleitung E Fokussierung: 1. Stativ aufstellen (1) 2. E Fokussierung (2) auf das Stativ montieren 3. Focus Reflektor (4) an der E Fokussierung befestigen und den roten Verschluss- hebel (3) öffnen. Dann den aufgespannten Reflektor mit dem Haltering in die Schirmhalterung einführen und den roten Verschlusshebel schließen 4.
