AMX RDM-INC50 Schematic Diagram

REV ECN
A 3253 RELEASED
REL APPR REL DATE REV APPR
NOTICE: This drawing is the
DRAWN RBF 11/29/01
property of AMX Corporation.
All information contained herein
ENGR SERV
that is not generally known
ENGINEER
shall be confidential except
to the extent the information
PROD ENGR
has been previously established.
MATL SUP
This drawing may not be copied,
reproduced, or used as the basis QUALITY
for manufacture or sale without
THIRD ANGLE
written permission.
PROJECTION

REVISIONS

DESCRIPTION DATE APPROVED
1/7/02
T M

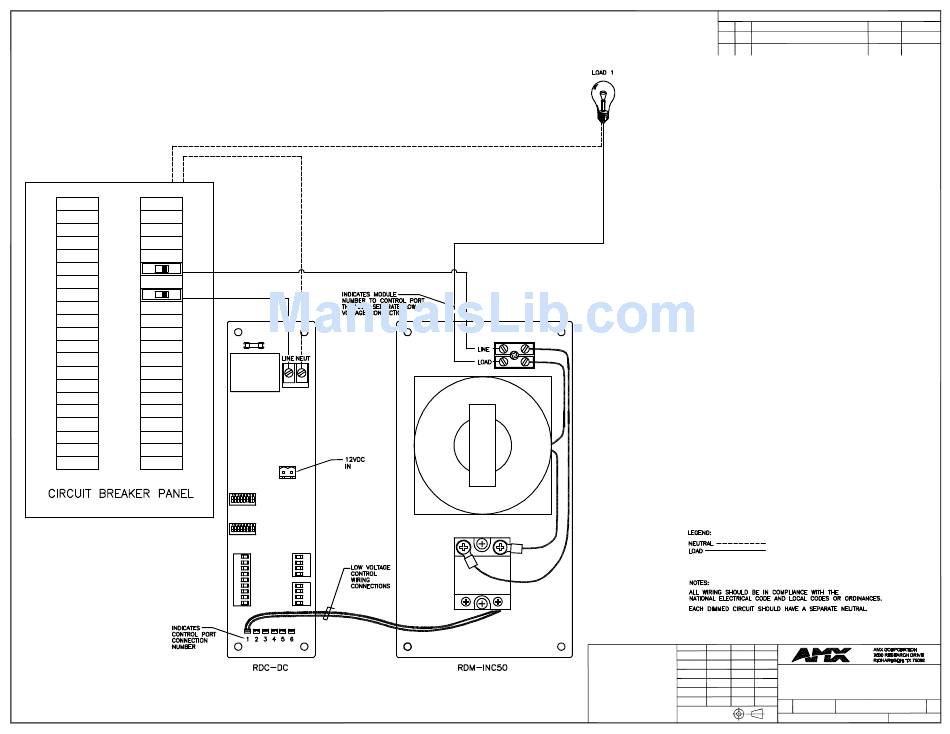

LIGHTING MODULE WIRING

RDM-INC50

INCANDESCENT DIMMER MODULE

6000 W

SIZE DWG. NO. REV.
SCALE:
LM-INC50-1
D NONE A
LM-INC50-1 SHEET
1 OF 1
