AMX RDM-FDB Installation Sheet

The RDM-FDB Single Channel Ballast Dimmer is a 1920 W positive air gap
relay and dimmer, built for strength and for reliable switching/dimming of
Lutron FDB ballasts. It is designed for use with the RDA series of enclo-
sures, in a AMX Lighting™ modular digital dimming system. The RDM-FDB
module's 120, 240, and 277 VAC ratings are CE, UL, and C-UL approved.
Mounting points
Relay
Positive air
gap relay

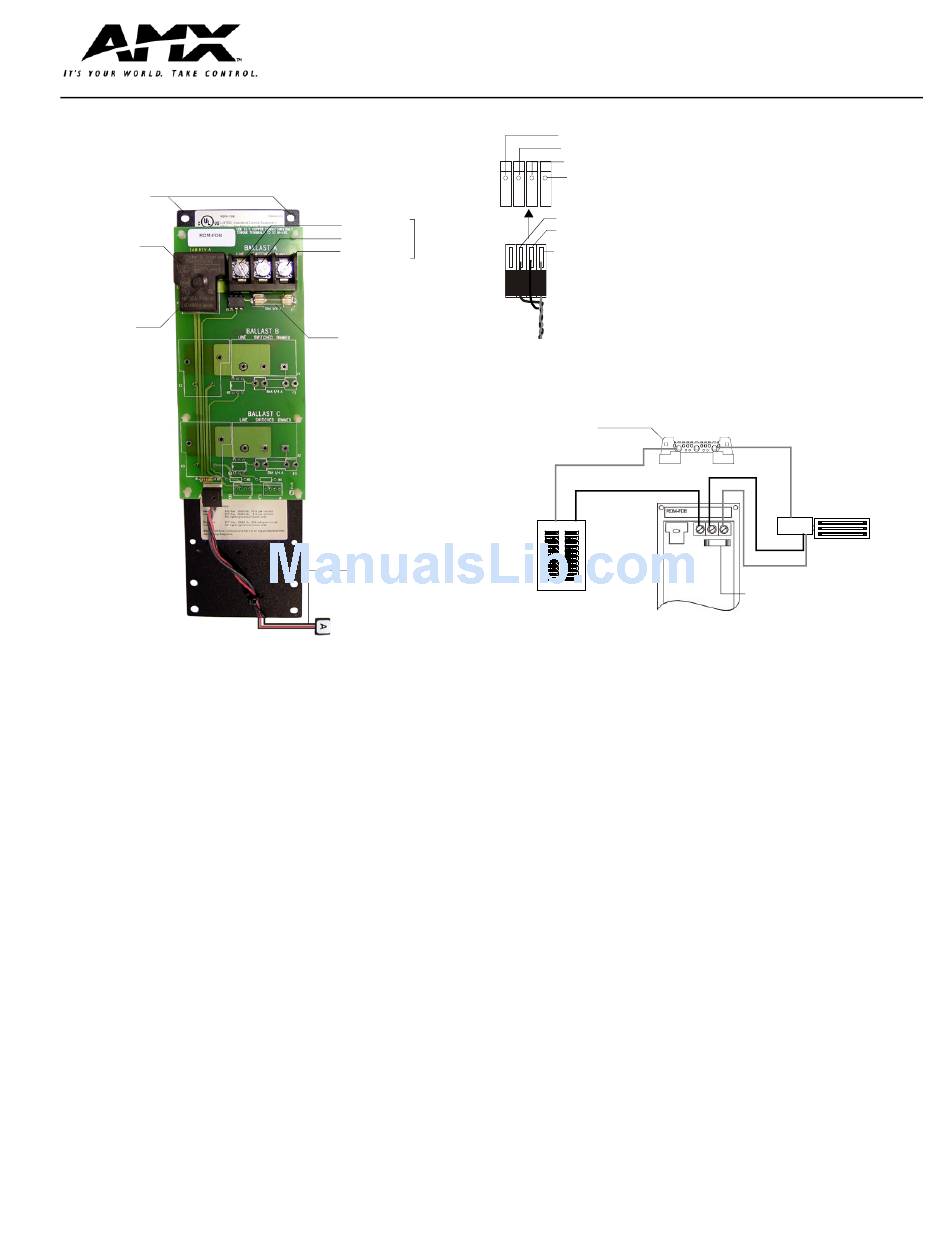

FIG. 1 RDM-FDB

RDM-FDB UL and C-UL Ratings

• 120 VAC, 1920 W
• 240/277 VAC, 1920 W

Suggested Dimmed Loads

• Most 3-wire dimmable fluorescent ballasts
© ®
• Lutron Hi-Lume FDB Ballasts
®
• Lutron Eco-10 Ballasts

Specifications:

• Dimensions (HW): 10.0" x 2.75" (25.4 cm x 6.99 cm)
• Dimmed output protected by a 250 mA GMA 5 x 20 mm fuse
• Phase dependant
• Use wires rated at 75°C (167°F)
• Torque terminals to 20 in-lbs. (2.3 N/M)
• Max. wire size: 10 AWG (4 mm²)
• Wire stripping length: 0.28" (7 mm)
• Weight: .72 lbs. (0.327 kg)
• BTU/hr: 5
• Control current: 85 mA @ 12 VDC
• For use with FDB ballasts
Caution: Pre-Installation Notes
• All Class 1 wiring must be connected to proper terminals.
• All control wiring must be connected to proper terminals.
• Disconnect power while installing or connecting the unit.
• Keep top and bottom air vents clear at all times.
• Use field installed copper conductors.
• All electrical ratings are for continuous duty.
• For indoor use only.
• This module may require extra power from the AXlink connection or an
external power supply connected to the control card.
RDM-FDB Single Channel Lutron FDB Ballast Dimmer
Connecting the RDM-FDB to the AMX Lighting Master
Line in (hot)
Switched out
Ballast A
Dimmed out
Fuse
FIG. 2 RDM-FDB connections
All neutrals are
common to the
Neutral block in the
enclosure. Provide
a separate neutral
for each load.
Low-voltage
control wiring: 4-pin
connector to AMX
Lighting master
controller
FIG. 3 RDM-FDB wiring configuration
Installation Sheet
Pin 4 (GND)
Pin 3 (RLY)
Pin 2 (DIM)
Pin 1 (+12 V)
RDM-FDB 4-pin module connector
3 (-)
2 (AC)
1 (+)
4-pin plug from RDM series module
Note: The 4-pin plugs from the module connector
to the 4-pin connector on the master (black plug cover facing up).
Lighting Appplication Drawing
Neutral
Line in (HOT)
Circuit breaker
panel
1920 W
Neutral
Florescent
Ballast
Ballast
BALLAST
Switched
Dimmed
The fuse protects the dimming
circuit from a low impedance
load.
• The fuse would blow if it
were incorrectly wired
• Catastrophic ballast failure
• Reversing switched and
dimmed circuits
• Reversing dimmed and
line circuits.
The dimmed output must be
connected to a high impedance
load.
