- Page 1 Operating Instructions PHB-207-3G PHB-3G "HIGH BRIGHTNESS QC & ENGINEERING" 3G Series PHB-207-3G PHB-209-3G PHB-207DRK-3G PHB-209DRK-3G Re-imagine Beyond Technology sales@plurainc.com...
-
Page 2: Table Of Contents
Operating Instructions PHB-3G SERIES Table of Contents PRECAUTION ---------------------------------------------------------------------------------------------------------- 5 OVERVIEW -------------------------------------------------------------------------------------------------------- 8 ADVANCED FEATURES ----------------------------------------------------------------------------------------- 8 FUNCTIONAL EXPLANATION OF EACH PART--------------------------------------------------------------- 9 ------------------------------------------------------------------------------------------------------ 9 RONT ANEL ------------------------------------------------------------------------------------- 9 PHB-207 & PHB-209-3G -----------------------------------------------------------------------------------10 Front Keys Arrangements ---------------------------------------------------------------------------------------10 Front Keys Operations ... - Page 3 Operating Instructions PHB-3G SERIES -------------------------------------------------------------------------------------------------------------- 16 ---------------------------------------------------------------------------------------------------- 16 SPECT ATIO ------------------------------------------------------------------------------------------------------------- 16 ----------------------------------------------------------------------------------------------- 17 ) --------------------------------------------------------------------------------------- 17 PC M PC MODE ONLY -------------------------------------------------------------------------------------------------------- 17 LIP MODE 10. NR (N ) ----------------------------------------------------------------------------------------- 17 OISE EDUCTION (SDI O ) ----------------------------------------------------------------------------------- 18 AUDIO MENU OPTIONS ---------------------------------------------------------------------------------------- 18...
- Page 4 Operating Instructions PHB-3G SERIES --------------------------------------------------------------------------------------------------- 24 Information -------------------------------------------------------------------------------------------------------- 24 Control ----------------------------------------------------------------------------------------------- 24 Screen Control --------------------------------------------------------------------------- 24 Config LAN / Ember+(Optional) -----------------------------------------------------------------------------------------------24 Protocol Setting ---------------------------------------------------------------------------------------------------------- 24 Set ID --------------------------------------------------------------------------------------------------- 24 Fan Control ----------------------------------------------------------------------- 25...
-
Page 5: Precaution
Operating Instructions PHB-3G SERIES • PRECAUTION Before operating this unit, please read this manual carefully. WARNING: To reduce the risk of any electric shock, please do not remove the back cover. No user serviceable parts inside. Refer any service matters to qualified service personnel. - Page 6 This product should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product damages. Accessories Do not use accessories not recommended by PLURA Inc. as they may cause hazards. Ventilation Do not block any of the ventilation openings.
- Page 7 Operating Instructions PHB-3G SERIES If the product exhibits a distinct change in performance. 17. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition and the warranty seal is provided 18.
-
Page 8: Overview
PHB-3G Series consists of high brightness, high quality portable LCD panels, specifically designed for outdoor applications. When you need to shoot in direct sunlight, PHB-3G series is the best tool, Up to 1300 cd/m2 of brightness without using any hood or sun-visor. PHB-3G series designed for every possible broadcast mobile &... -
Page 9: Functional Explanation Of Each Part

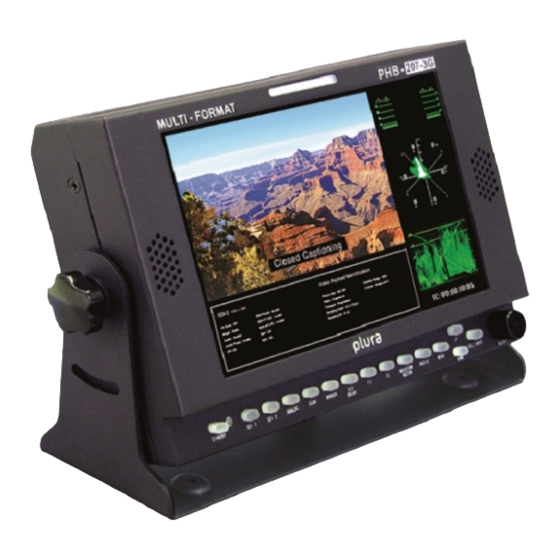

Operating Instructions PHB-3G SERIES 3. Functional explanation of each part Front Panel PHB-207-3G & PHB-209-3G Front View PHB-207-3G Front View PHB-207-3 Re-imagine Beyond Technology sales@plurainc.com... -
Page 10: Front Keys Arrangements
Operating Instructions PHB-3G SERIES Front Keys Arrangements Front Keys Operations Key Name Operation Power on/off Button. This button is operated after being pressed about 3 seconds. Stand By activates OSD menu of input source selecting. changes input source. -
Page 11: Front Panel Operations
Operating Instructions PHB-3G SERIES Executes functions as programmed Function 1 Executes functions as programmed Function 2 Executes functions as programmed Function 3 Draw Marker on Screen (off -> 16:9 -> 4:3 … -> 2.35:1) Marker executes Scan function (over-Scan -> Zero-Scan -> under Scan-> Pixel to Pixel) -
Page 12: Gpi, Control Lan (Ember+-Optional)
Operating Instructions PHB-3G SERIES RJ-45 – GPI, Control LAN (Ember+-OPTIONAL) CONTROL LAN CONTROL Ember+ RJ 45 Jack Face Optional Remote PIN Assignment 8 Pin Common (GND) GPI 4 Port 7 Pin GPI 7 Port GPI 3 Port (StanD 6 Pin... -
Page 13: Menu Overview
Operating Instructions PHB-3G SERIES Audio IN DVI-I/component/GBR/composite1,2,3/S-Video Audio input Audio OUT Audio Monitor out AC IN DC IN DC 12V UPDATE/Ethernet Firmware Upgrade / Ember+ Optional GPI 1 ~ 7 control Port 4. MENU OVERVIEW In this system menu, there are several ways to maneuver the menu settings. -
Page 14: Volume Adjustment
Operating Instructions PHB-3G SERIES 1. Firstly, make sure you have connected the AC power cord or DC XLR connector. The monitor will switch to standby or power on mode. If the monitor is in standby mode, press the ST-BY button to turn on the monitor. -
Page 15: Select Video Input
Operating Instructions PHB-3G SERIES 7. SELECT VIDEO INPUT How to Select Video Source by OSD 1. Press the SET/INPUT button and then UP/DOWN button to select the required video source. 2. Press the SET/INPUT button to go to select the desired video source. -
Page 16: Scan
Operating Instructions PHB-3G SERIES 3. Scan - Select desired scan mode. 1. Over Scan – 95% input size and fit the selected display size 2. Zero Scan – 100% input size and fit the selected display size 3. Under Scan – 105% input size and fit the selected display size Pixel to Pixel –... -
Page 17: Mono/Blue Only
Operating Instructions PHB-3G SERIES 7. Mono/Blue Only - Mono color: For selecting monochrome images. - Blue Only: Blue Video channel is enabled 8. PC Menu (pc mode only) - Only operate in PC input mode - Select auto-adjust and adjust Phase, HV position, frequency - Auto-adjust automatically set the optimum values of Phase, HV position and frequency. -
Page 18: Dual Link Mode (Sdi Only)
Operating Instructions PHB-3G SERIES 11. Dual Link Mode (SDI Only) -Dual Link Mode select. (Auto / Off / RGB444 / YCbCr 444/ YCbCr 422) - If SDI signal has a video payload identification and Dual Link Mode set auto mode. Dual link is set automatically. -
Page 19: Level Meter Scale
Operating Instructions PHB-3G SERIES 6. Level Meter Scale - Level Meter Scale mode selects. (BBC / EBU / VU / NORDIC / DIGITAL / DIN / EXPAND DIN) 7. Audio Mode - Sound mode selects (Stereo/Dual Mono) 8. Volume - Adjust the speaker or headphone Volume level. (0~32) Re-imagine Beyond Technology sales@plurainc.com... -
Page 20: Marker Menu Options
Operating Instructions PHB-3G SERIES 10. Marker MENU OPTIONS Marker & User Marker - Marker: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, User1, User2, User3 (Customized markers). - User Marker: The user defined Marker size setting. 2. Safety Area -Safety Area: Draw dotted line Marker on screen. -
Page 21: Preset 1 & Preset
Operating Instructions PHB-3G SERIES 6. Preset1 & Preset2 - Markers can be set as preset 1 & 2 and be triggered by GPI controller. - GPI preset markers can only be utilized by GPI controller 11. GPI MENU OPTIONS GPI Control & GPI# - For programming selected functions to particular GPI ports. -
Page 22: Setup Menu Options
Operating Instructions PHB-3G SERIES 12. SETUP MENU OPTIONS Factory Default - Factory: User Reset. - Setup Load: Load user saved values or default value - Setup Save: Save user setting values at user 1, 2, 3. 2. Function 1 ~2 - Function 1~2: Select the required function to be allocated to the FUNCTION Keys 1, 2,. -
Page 23: O Nscreen Display
Operating Instructions PHB-3G SERIES 3. On Screen Display OSD Option OSD Transparency: Disable blending OSD background with video image. OSD Time out: OSD gone time setting. (3~200) OSD Position: L-T, R-T, C, L-B, R-B Time code Time code Enable: Time code Display (off/LTC/DVITC, SDI only) Time code size: Time code size select. -
Page 24: Information
Auto Run, White, RED, Green, Blue, Yellow, Cyan, Magenta Config LAN / Ember+(Optional) -Plura System Controller (PSC-400) Network setting. DHCP: DHCP on/off (Manual IP settings – DHCP on) * “Apply” to confirm all settings were applied. Protocol Setting -PLURA PSC, TSL 5.0, TSL 4.0... -
Page 25: Set Id
Operating Instructions PHB-3G SERIES Set ID - Set ID is required for remote control. Set ID range (01~99). Fan Control Fan Control: Internal Fan Control option based on temperature sensor Auto / force on / force off ... -
Page 26: Video Range
Operating Instructions PHB-3G SERIES 7. Video Range -Range Check: on/off. -Y Max: Maximum luminance level. -Y Min: Minimum luminance level. -C Max: Maximum chroma level. -C Min: Minimum chroma level. -Color: Black/Blue/Red/Green -Grid: Grid line on/off -Blink: Y/C Min-Max to blink. (0~7) 8. -
Page 27: Pip (Picture In Picture)
Operating Instructions PHB-3G SERIES & info Window & time code Display. Meter & info Window & time code Display. Double Y-Waveform+VectorScopetrans SDI 1, 2 & WAVEFORM & Vector Scope & Audio WAVEFORM & Vector Scope trans. Lever Meter & info Window & time code Display. - Page 28 Operating Instructions PHB-3G SERIES 4. Position -choose the PIP position on each corner of the panel 5. PIP Blend -Blend to PIP 6. PIP Swap -using Swap option, you can exchange two programs or sources at the same time. 7. Audio Select -using Audio Swap option, you can exchange the audio of two programs or sources at the same time.
- Page 29 Operating Instructions PHB-3G SERIES 8. Sub Window Function -full Sub Window: Display the same full images on POP1 screen. -Part Sub Window: first image scale 4:3 aspect ratio and then display on POP2 screen. -full, Part function is only used in Digital input (SDI1, SDI2, DVI or HDMI).
-
Page 30: Osd Tree
Operating Instructions PHB-3G SERIES 14. OSD TREE Re-imagine Beyond Technology sales@plurainc.com... -
Page 31: Video
Operating Instructions PHB-3G SERIES Video Re-imagine Beyond Technology sales@plurainc.com... -
Page 32: Audio
Operating Instructions PHB-3G SERIES 2. Audio Re-imagine Beyond Technology sales@plurainc.com... -
Page 33: Marker
Operating Instructions PHB-3G SERIES 3. Marker Re-imagine Beyond Technology sales@plurainc.com... -
Page 34: Gpi
Operating Instructions PHB-3G SERIES 4. GPI Re-imagine Beyond Technology sales@plurainc.com... -
Page 35: Setup
Operating Instructions PHB-3G SERIES 5. Setup Re-imagine Beyond Technology sales@plurainc.com... -
Page 36: Pip
Operating Instructions PHB-3G SERIES 6. PIP Re-imagine Beyond Technology sales@plurainc.com... - Page 37 Operating Instructions PHB-3G SERIES Contact Us U.S.A. Corporate Offices: Plura Broadcast, Inc. Ph: +1-602-944-1044 Sales@plurainc.com GERMANY Plura Europe GmbH Ph: +49-6725-918006-70 Sales@plurainc.com U.A.E. Plura MEA Ph: +971-50-715-9625 Sales@plurainc.com S. KOREA Plura Asia Ph: +82-10-6688-8826 Sales@plurainc.com Re-imagine Beyond Technology sales@plurainc.com...
