AMX RDD-DM4/120 Specifications

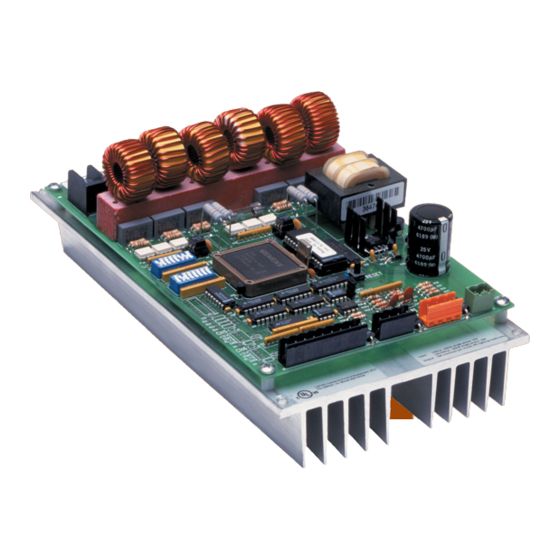

Radia Integrated Dimmer Modules
Radia Integrated Dimmer Modules combine the intelligence of Radia
Dimmer Cards with the economy of multi-channel 1200W dimming. This
is ideal for residential, entertainment or other applications that need
high-density distributed dimming. Radia Integrated Dimmer Modules
include either four or six onboard 1200W dimmers. The extremely versa-
tile modules can be powered from one 2400W feed or split into two
2400W circuits, with each controlling two or three dimmers.
Radia Integrated Dimmer Modules act as the Radia Lighting System brain
and traffic manager. They handle system processing and non-volatile
memory, as well as coordinate the PROLink and the AXLink data networks
and they also trigger functions from the onboard contact closure inputs.
