CSR Edmonds Maestro Installation Instruction, Replacing Motor/Fan/Bracket Assembly

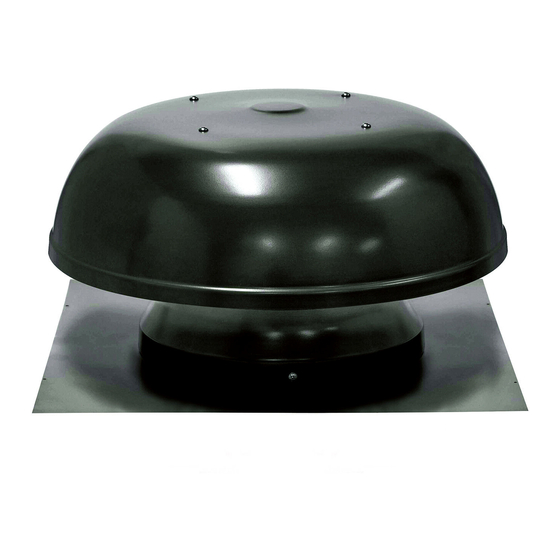

Replacing Motor/Fan/Bracket assembly in the Maestro/Sentinel
FOR BUSH FIRE ZONES UP TO AND INCLUDING BAL 29 ONLY.

TOOLS REQUIRED

2mm flat screwdriver
T-25 Torx Screwdriver or bit
STEP 1:
Turn off power to the Maestro/
Sentinel.
STEP 2:
Using a 2mm flat screwdriver;
disconnect the motor from the
terminal block.
STEP 3:
Either remove the Maestro/Sentinel
from the roof and turn over OR
perform the replacment of the
motor assembly from underneath an
installed Maestro/Sentinel.

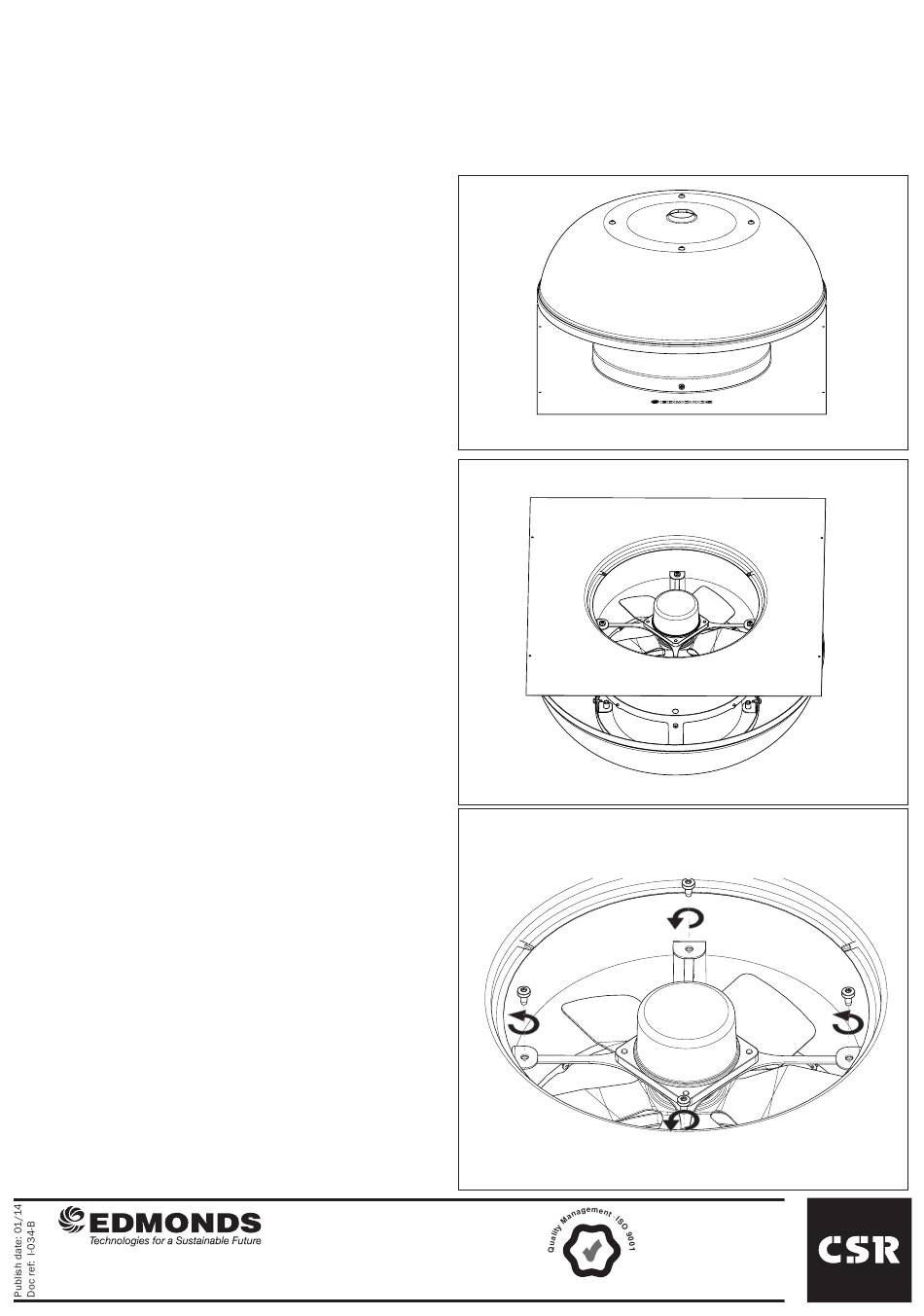

STEP 4:
Using the T-25 Torx screwdriver
remove the four (4) screws that
secure the motor assembly bracket
to the housing support bracket.
