NOTICE: This drawing is the
UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS:
XX = .010
All information contained herein
XXX = .005
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
shall be confidential except
UNDER .250 ú
= +/- .005
.250 TO .500
= +.006 -.005
to the extent the information
OVER .500
= +.008 -.005
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
This drawing may not be copied,
ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REV
ECN
5268 RELEASE TO PRODUCTION
A
B
5566 REMOVE NOTE
REL APPR
REL DATE
REV APPR
NOTICE: This drawing is the
property of AMX Corporation.
DRAWN
DAS
7/30/03
All information contained herein
DB
ENGR SERV
DB
8/4/03
that is not generally known
PL
ENGINEER
PL
8/4/03
shall be confidential except
KZ
to the extent the information
KZ
8/1/03
PROD ENGR
has been previously established.
KL
MATL SUP
KL
8/1/03
This drawing may not be copied,
AK
AK
8/1/03
SIZE
reproduced, or used as the basis
QUALITY
for manufacture or sale without
THIRD ANGLE
written permission.
PROJECTION
95-0423-17-B
REVISIONS
DESCRIPTION
DATE
APPROVED
8/5/03
11/4/03
TM

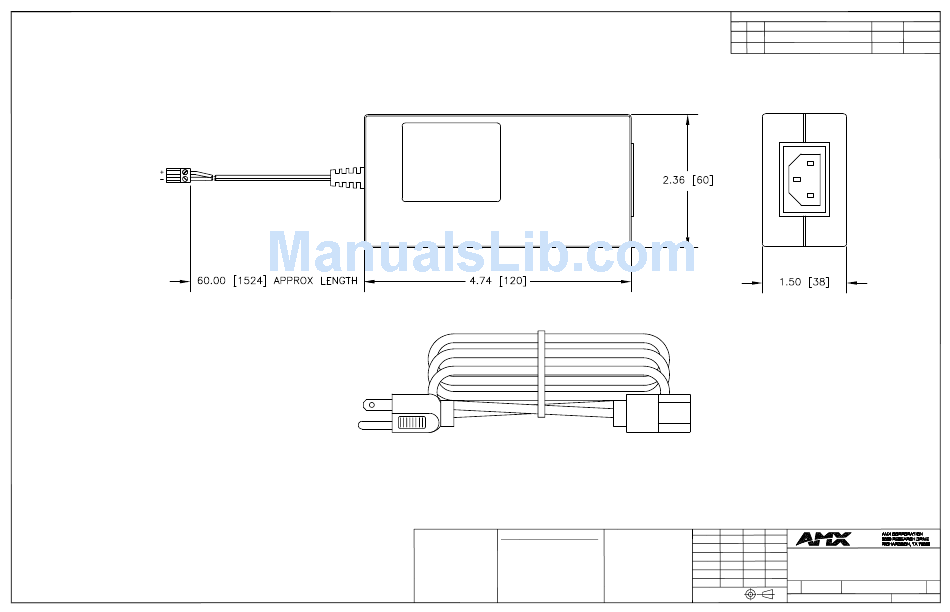

PICTORIAL,
PSN2.8 POWER SUPPLY
13.5VDC 2.8A, SHOWN USING A
3MM MINI PHOENIX CONNECTOR
DWG. NO.
REV.
SCALE
95-0423-17
B
FULL
B
1 OF 1
SHEET
