Installation, Operating and Servicing
Instructions

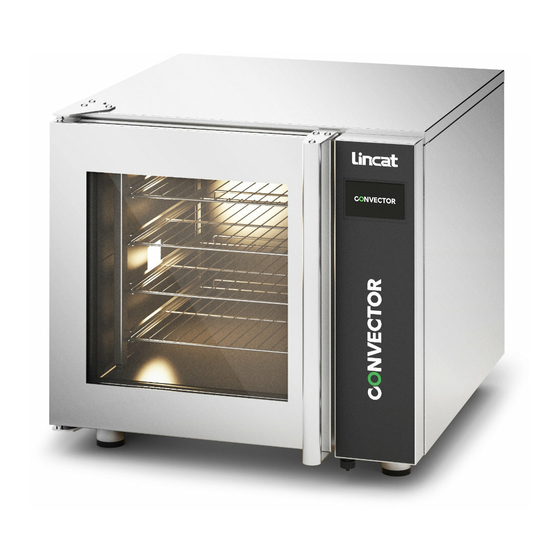

CONVECTOR
Electric Convection Ovens
CO343M, CO343T
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 747 ECN 4614
Page 1 of 14
Advertisement
Table of Contents
Related Manuals for Lincat CO343M
Summary of Contents for Lincat CO343M
- Page 1 Installation, Operating and Servicing Instructions CONVECTOR Electric Convection Ovens CO343M, CO343T Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 747 ECN 4614 Page 1 of 14...
-
Page 2: Table Of Contents
WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips. -
Page 3: Warnings And Precautions
Instructions Manual Shelves 4 TECHNICAL DATA Tray Weight Model Supply Rating Capacity Spacing (kg) CO343M 1P+N+E, 50-60 HZ 3.0kW 4 x 1/1GN 68.0 CO343T 1P+N+E, 50-60 HZ 3.0kW 4 x 1/1GN 68.7 IS 747 ECN 4614 Page 3 of 14... - Page 4 ELECTRICAL VENT CONNECTION CO343M ELECTRICAL VENT CONNECTION CO343T IS 747 ECN 4614 Page 4 of 14...
-
Page 5: Installation And Commissioning
INSTALLATION AND COMMISSIONING This appliance must be earthed. An equipotential bonding terminal is provided to allow cross bonding with other equipment. If replacing the plug connect the terminals as follows: Green and Yellow wire Earth Blue wire Neutral N Brown wire Live Means of isolation with at least 3mm contact separation in all poles must be incorporated into the fixed wiring of the CO235M and CO235T. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Only qualified or trained personnel should use this appliance. MODEL: CO343M A- On/Off B- Power supply indicator C- Oven heating indicator D- Temperature control knob E- Fan Speed F- 120 minute timer G- Reset Fig 3 Connect the appliance to the electricity supply. The green neon (B) illuminates indicating power to the appliance. - Page 7 To turn the unit off set the temperature control knob to the off position and switch off at the mains. MODEL: CO343T A- Touch Screen B- Reset C- USB Fig 4 Only qualified or trained personnel should use this appliance. Connect the appliance to the electricity supply.
- Page 8 How to programme your Touch screen Convector (CO343T). Home screen This is where you run recipes from (just press the recipe you want). You can switch into the oven mode from here. Pressing recipe manager takes you into the programming area Home Oven mode Recipe...
- Page 9 Recipe summary and edit screen This is where you view your recipe with changes highlighted in green. Press on the steps to edit them. Press on the name bar to rename the recipe. Attach or change an icon from the library. Click on to save to keep your recipe.
-
Page 10: Fault Finding
If when turning the unit on it fails to operate firstly check the power supply to the unit then the reset before contacting Lincat service. To re-set the safety thermostat, firmly push the red button which is recessed under the front edge of the unit see (Fig 3 –... -
Page 11: Cleaning
Your product has a manufacturer’s warranty. This requires you maintain and care for your product and follow maintenance instructions. If you fail to maintain your unit or damage components Lincat may charge you for a warranty repair. Please check the website for terms and conditions. - Page 12 Door inner glass removal and refitting With the door open, unclip and swing open the inner glass. Support the inner glass assemble and undo the two screws and remove the retaining bracket. Tilt and lift the inner glass assembly from the lower fixed pin. To refit, position onto the lower fixed pin then place the retaining bracket in place on the inner glass upper metal bracket then refit the screws.
-
Page 13: Spare Parts List
SPARE PARTS LIST You can search for your spare parts on Lincat.co.uk using your products serial number. Part Number Description Used on BU55 Door Bush CO343M, CO343T BU227 Oven light bulb CO343M, CO343T CA208 Run Capacitor CO343M, CO343T CCB02 Control PCB... - Page 14 • Product code • Type number All available on serial plate • Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty.
