Pandora VS-23d Quick Start Manual

Warranty obligations
Manufacturer guarantees correct operation of the service-security system if exploitation, installation,
storage and transportation conditions described in this manual were met.
The system should only be used according to installation scheme and user manuals.
The system is meant to be installed by the professional car electronics installers. We recognize that
outside Russia the system can be installed by amateurs – those installations are still a subject of
limited warranty. The installer should ll in installation certi cate that is included in this manual.
Parts malfunctioning during warranty period on the fault of the manufacturer should be repaired or
replaced by the installation center of the manufacturer or by certi ed service center. List of certi ed
service centers outside Russia can be found on pandorainfo.com
The user loses the right for warranty services in the following cases:
• when warranty period expires;
• if exploitation, installation, storage or transportation conditions were not met;
• if there is mechanical damage of the external parts of the system after it is sold. This includes: re
damage, consequential damage in case of car accident, aggressive liquids and water seeping damage,
damage caused by improper use;
• if the damage was caused with incorrect settings and parameter adjustment;
Warranty period is 3 years since the moment of purchase, but no more than 3,5 (three and a half) years
since the moment of production.
This warranty does not include batteries of the remotes, as they have their own service life time.
Maintenances and repairs of the system with expired warranty period are carried out at the expense of
the user on a separate contract between the user and the installer/service center.
Date of purchase
____________________________________
Packager
_____________________________________________
(stamp)
The quality management system of the manufacturer
is certied in accordance with
IATF 16949: 2016, ISO 9001:2015
pandorainfo.com
Customer support: support@pandorainfo.com
Product is in conformity with Electromagnetic Compatibility
Directive EMC 2004/108/EC
and R&TTE Directive 1999/5/EC
Pandora VS-23d
Two-band microwave sensor
- Smart processing of information with reliable
protection from false triggering
- Non-volatile memory of set triggerig levels
- Sensitivity adjusting within a wide range
- Energy e ciency
Microwave sensor Pandora VS-23d
This sensor is intended for additional security of car perimeter. It connects to a car service-security
system, triggers when coming to the armed car and penetrating to the car interior.
Pandora VS-23d is a compact size digital microwave sensor, herewith it is high-tech and energy e cient
with extended dynamic range.
Sensor VS-23d is designed to be installed on passenger and o -road cars, minivans, as well as on cars
with low-capacity batteries, toned and armored windows, a lot of anti-theft and musical equipment,
with voltage of on-board power supply 12V.

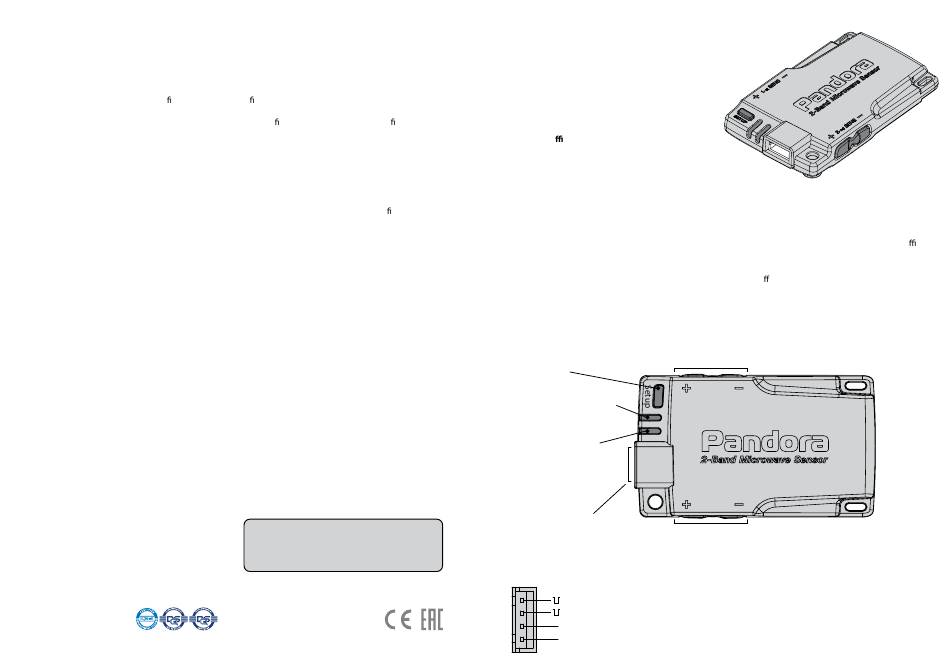

Assigment of buttons
Button to enter sensitivity Buttons to set warning level of the sensor
settings mode
Indicator of triggering
warning level of the sensor
Indicator of triggering
alarm level of the sensor
Socket to connect to
the alarm system
Buttons to set alarm level of the sensor
Socket to connect to the alarm system
Output (triggering of alarm level)
Output (triggering of warning level)
GND (disconnected)
+12V (constantly)
1-st SENS
2-nd SENS
