Pandora DMS-100BT Installation

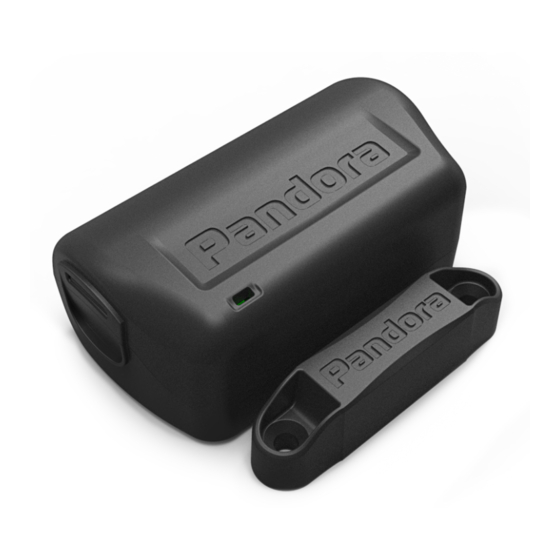

Door Sensor
DMS-1OOBT
Wireless door sensor DMS-100BT is designed for the remote detection of shock
and rotation, temperature, opening of the door that is located at a considerable
distance from the base unit of car service-security system.
The following zones can be controlled with this sensor: sunroof, coffer cover, trunk,
trailer, case cover for carrying some valuables and so on.
Sensor's operation is based on using of 3-coordinate accelerometer that allows
detecting rotations, shocks and door motions, and on using a magnetic pair (hall
sensor) for reliable detection of door opening/closing.

Installation

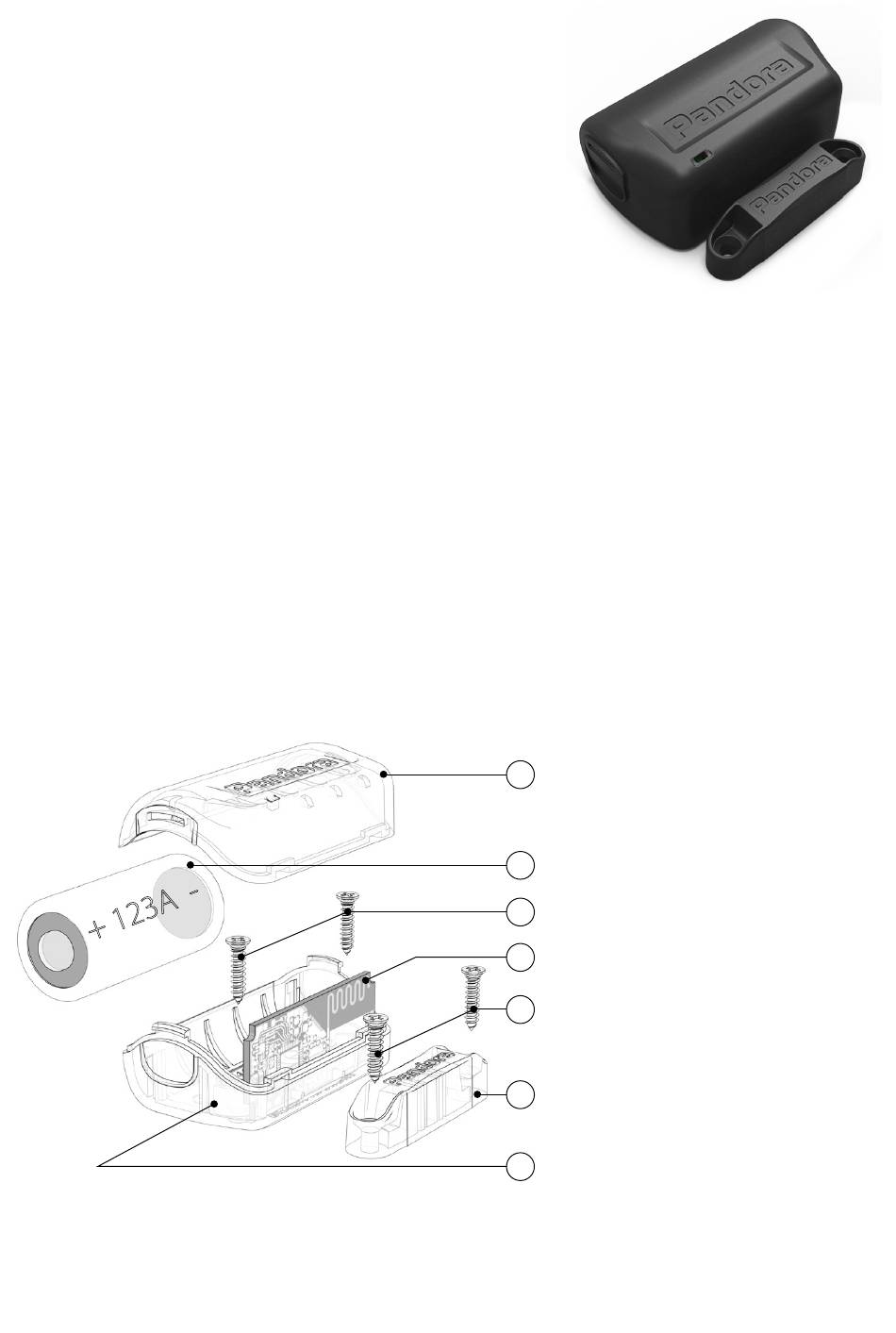

1
Open cover 1 of the base unit,
remove the battery 2 and
then attach cover 7 of the
2
base unit with screws 3 to the
door's movable part.
3
Attach magnetic unit 6
4
with screws 5 to the door's
fixed part in a way to match
5
magnetic unit 6 with the
sensor's base unit, magnetic
sensor 4 (see picture) when
6
closing door.
Gap must not exceed 5 mm
7
similar to the standard reed
sensor.
