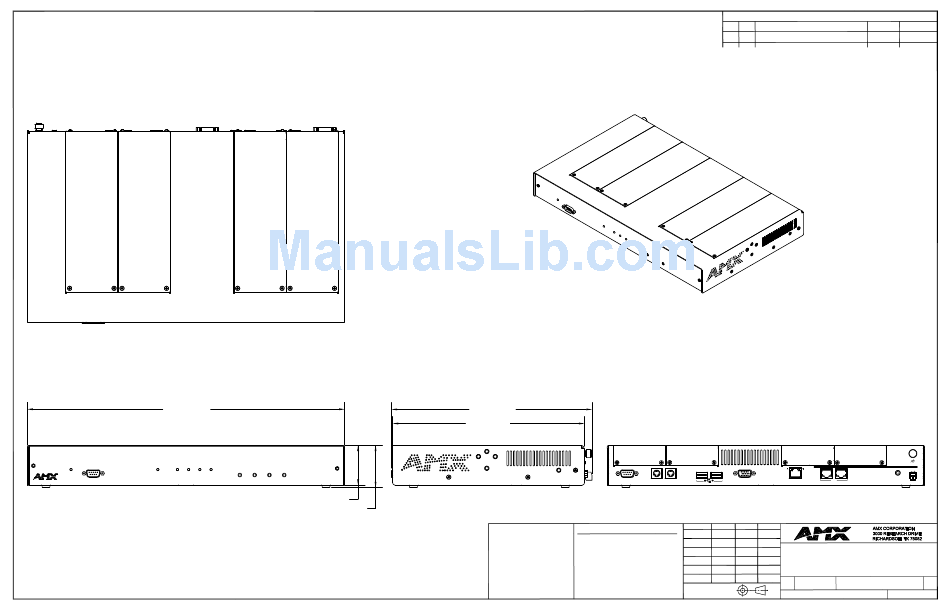

AMX NXP-TPI/4 Specifications

17.00 [431.80]
PWR ICSP INPUT 1 INPUT 2 INPUT 3 INPUT 4
SERIAL RESOLUTION
NXP-TPI/4
TOUCH CALIBRATE SETUP NETLINX TOUCH PANEL INTERFACE
2.12 [53.84]
2.24 [56.89]
10.74 [272.79]
10.27 [260.85]
INPUT 4
TOUCH INPUT
NOTICE: This drawing is the UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS:
All information contained herein
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
shall be confidential except UNDER .250 ú = +/- .005
.250 TO .500 = +.006 -.005
to the extent the information
OVER .500 = +.008 -.005
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
This drawing may not be copied, ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REVISIONS
REV ECN DESCRIPTION
4208 RELEASE TO PRODUCTION
A
INPUT 3 INPUT 2
MOUSE KEYBOARD VGA OUTPUT ETHERNET 10/100 ICSNet
REL APPR REL DATE REV APPR
J.L. 09-19-02
DRAWN
XX = .010
MAB 09-26-02 MAB
XXX = .005 ENGR SERV
PICTORIAL
TC 09-27-02 TC
ENGINEER
NXP-TPI/4, NETLINX TOUCH PANEL
PROD ENGR AVT 09-27-02 AVT
INTERFACE 4
AM
MATL SUP AM 09-27-02
AK
QUALITY AK 09-27-02 SIZE SCALE:
D 2/3
THIRD ANGLE
PROJECTION
95-2275-01
DATE APPROVED
09-27-02
INPUT 1
12VDC
AUDIO OUTPUT
TM
DWG. NO. REV.
95-2275-01
A
SHEET
1 OF 1
