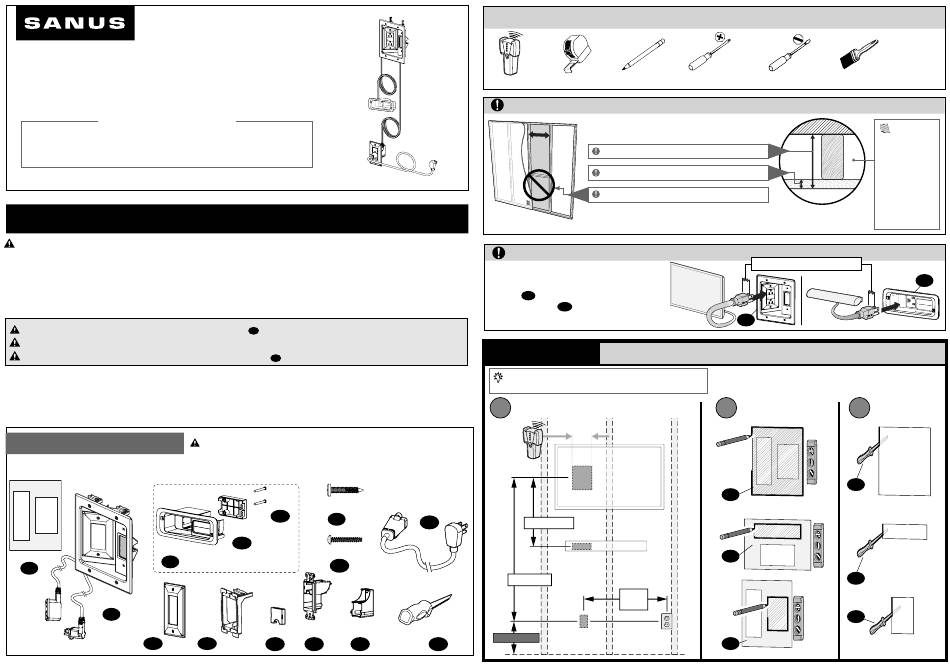

Sanus WSIWPSB1-W1 Owner's Manual

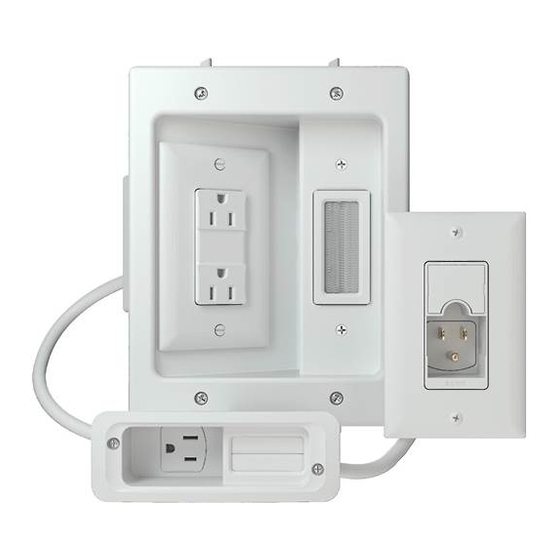

IN-WALL POWER KIT
Model
We'll Make It Stress-Free
If you have any questions along the way, just give us a call.
800-359-5520 or, chat at SANUS.com/chatSP
We're ready to help!
Doc. #1507331 08/20 Rev A
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
CAUTION:
Avoid potential personal injuries and property damage!
● Please read through these instructions completely to be sure you're comfortable with this easy install process.
● Do not use this product for any purpose not explicitly specified by manufacturer.
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
● If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
customer service.
WARNING:
RISK OF FIRE AND SHOCK. Do not connect the module
CAUTION:
RISK OF FIRE AND SHOCK. ONLY intended for use on 15 ampere branch circuits.
CAUTION:
RISK OF FIRE AND SHOCK. Do not install power supply cord
This product conforms to and should be properly grounded in compliance with requirements of the current National Electrical Code or
codes administered by local authorities.
All electrical products may present a possible shock or fire hazard if improperly installed or used. This product may bear the mark of a
Nationally Recognized Testing Laboratory and should be installed in conformance with current local and/or the National Electrical Code.
Supplied Parts
Soundbar
Module
Cutting Template
03
01
Upper
Module
02
Cover
Plate
06
WSIWPSB1-W1
OWNERS GUIDE
to any other circuits or outlets.
02
within wall cavity.
13
WARNING:
This product contains small items that could be a choking hazard if
swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are
missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never
use damaged parts!
Soundbar
Housing
Front Housing
Screw
Screw
05
11
Soundbar
Housing
04
Back Housing Screw
12
Lower
Back Plug
Front Plug
Module
Cap Housing
Housing
07
08 09 10
Tools Required
Stud Finder Tape Measure
Verify Wall Compatibility
This Cable Kit is designed to fit into both interior
and exterior walls constructed with:
* A horizontal fire block stud requires a 1.75 inch hole to pass the power cord.
This requires removal, then repair of drywall, to gain access to that stud.
We recommend you consult a professional.
Verify TV Plug Fit
BEFORE DRILLING ANY HOLES:
Make sure your TV plug fits in the upper
module and your soundbar fits in
02
soundbar module .
03
v
STEP 1
TIP: Drill the upper hole BEHIND your TV and the
middle hole BEHIND your soundbar.
1
LOCATE
Power Cord
13
Up to 3 ½ ft.
Up to 8 ft.
Drywall Saw
Outlet Height
14
Pencil Phillips Screwdriver Slotted Screwdriver
3 in.
Minimum Space into Wall:
1/2 in.
Minimum Drywall Thickness: (MAX: 1 in.)
No Fire Block Stud in the cavity *
MAX: 1 ⅛ in. (29 mm)
02
Cut Holes
2
TRACE
UPPER
(TV)
MODULE
01
TV
MIDDLE (SOUNDBAR) MODULE
Soundbar
01
LOWER
Up to
MODULE
6 ft.
01
Paint (optional)
Surfaces are paintable
to match your decor
Back Wall
NOTE:
The cable Pass-
Through Width is
Stud
1.75 inch.
Walls with blown-
in type insulation
Drywall
may require
removal of some
insulation inside
the cavity.
03
3
CUT
14
14
14
