MNO621A

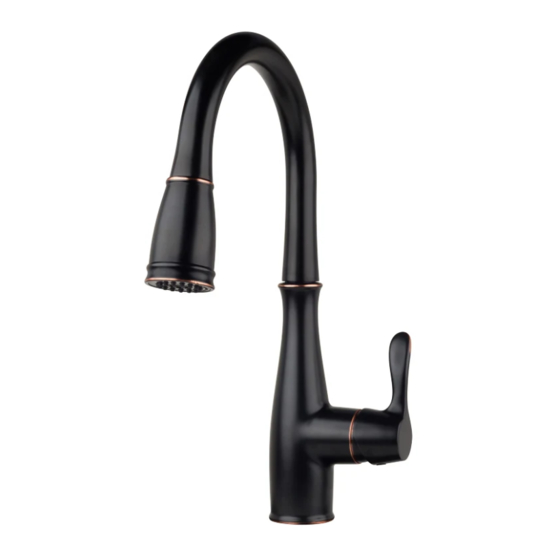

Single-Handle Pull-Down Kitchen Faucet
TOOLS YOU WILL NEED
Adjustable wrench
Groove joint plier
Phillips screwdriver
Silicone Sealant
SAFETY TIPS
• Cover your drain to avoid losing parts.
• The fittings should be installed by a licensed
plumber in your State.
• When installing flexible hose, Please note there
should be no torsion or deformation; do not fold
into Shape V or L; do not use if there are any cracks
or deformation
Questions, problems, missing parts?
Before returning to your retailer, please contact Customer Service at 1-855-480-2915 or infoservice@miseno.com
BEFORE INSTALLATION:
If you contact Customer Service, you will need the Model#, Serial Number
and Date Code. Please locate the Product ID tag and Serial number tag.
Please record the serial number and date code here BEFORE YOU INSTALL:
__________________
Serial Number
Please attach your receipt for proof of purchase.
Pipe tape
____________
Date Code
Model
MNO621 CP/SS/ORB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for miseno MNO621A
Summary of Contents for miseno MNO621A
- Page 1 Shape V or L; do not use if there are any cracks or deformation Questions, problems, missing parts? Before returning to your retailer, please contact Customer Service at 1-855-480-2915 or infoservice@miseno.com BEFORE INSTALLATION: If you contact Customer Service, you will need the Model#, Serial Number and Date Code.
- Page 2 FAUCET INSTALLATION PROCEDURE To avoid over tightening inlet port to spout shank, use a second wrench to prevent inlet port from turning while attaching water hose, as seen in diagram. CAUTION SHUT OFF MAIN WATER SUPPLIES BEFORE INSTALLATION 1. Shut off water supplies. Remove old faucet. Clean sink surface in preparation for new faucet.
- Page 3 6. Locate lowest point of the hose on the spout side and attach the rubber-coated weight. 7. After installing faucet, remove the aerator and turn on water to remove any leftover debris. Then reassemble the aerator. TROUBLESHOOTING If you've followed the instructions carefully and your faucet still does not work properly, take these corrective steps. Problem Cause Action...
- Page 4 REPLACEMENT PARTS Handle Cap Assembly A66D558 (RW/OB/RL) A603595 Handle A069456 Trim Cap A103016 Locking Nut A104207 Ceramic Disc Cartridge A507348N O-Ring A004074N Pattern clip A012357 Hose Guide A126048GR Hand Spray w/Check Valve A528030N-54 Trim Ring A667360 Cover Plate Assembly A667003 Mounting Hardware Assembly A66D477 Hose adaptor Assembly...
