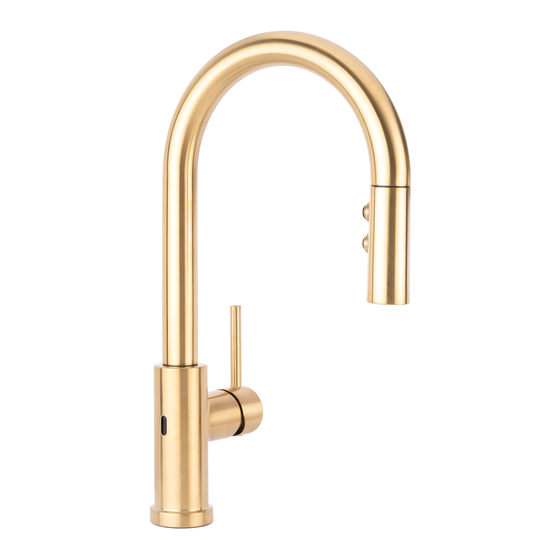

SINGLE HANDLE PULL-DOWN KITCHEN FAUCET
Model:
MNO191ECP
MNO191EZSS
MNO191EFB
MNO191ECG
CAUTION-TIPS FOR REMOVAL OF OLD FAUCET:
Always turn off water supply before removing existing faucet or replacing any part of the faucet. Open the
faucet handle to relieve water pressure and ensure that water is completely shut off.
CARE INSTRUCTIONS:
To preserve the finish of your faucet, apply non-abrasive wax. Any cleaners should be rinsed off immediately
Do not use abrasive cleaners on the faucet.
Goggles
05/09/22 REV.A
You may need/Usted puede necesitar
Wrench
Tape Measure
Hex Wrench
1
Phillips Head Screwdriver
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for miseno MNO191ECP
Summary of Contents for miseno MNO191ECP
- Page 1 SINGLE HANDLE PULL-DOWN KITCHEN FAUCET Model: MNO191ECP MNO191EZSS MNO191EFB MNO191ECG CAUTION-TIPS FOR REMOVAL OF OLD FAUCET: Always turn off water supply before removing existing faucet or replacing any part of the faucet. Open the faucet handle to relieve water pressure and ensure that water is completely shut off.
- Page 2 (2N. m (2N. m Max) Max) Shut off water supplies. Place new faucet through holes in top of sink. Install metal Shut off water supplies. Place the escutcheon (4) and the gasket (5) on the bottom washer (1) onto the threaded mounting shank. Thread nut (2) onto mounting shank. of the new faucet assembly.
- Page 3 OPTIONAL: If you want to use the faucet without the sensor feature or without To open the battery housing, squeeze the tabs (1) on the cover (2), then remove the power, you can attach the quick connector (1) to the receiving block (2). This cover (2).
- Page 4 IMPORTANT: After installation is complete, remove the sprayer by unscrewing it in a Making the waterline connections counter-clockwise direction. Turn on the water supply to flush debris from the Thread the nut (1) on supply line onto outlet of water supply valve (2) and tighten faucet.
- Page 5 1. Maintenance: Water will not shut off when turning the handle to the OFF position. 1a. When you turn the handle to the full on position, the water will turn on. 1b. But when you turn the handle to the full off position, the water does not turn off. 1c.
- Page 6 3. Maintenance: The sensor is not activating the water flow. 3a. When you turn the handle to the full on position, the water will turn on. 3b. However, when you move your hand in front of the sensor, the water does not turn off as it should.
- Page 7 4. Maintenance: There is a low flow of water. 4a. There is a low flow of water or LED indicator in the spray head is not functioning. 4b. This could indicate that the screen filter in the hose connectors is dirty. Turn off the water supply and unscrew the hose connectors from water supply lines.
- Page 8 * Specify Finish OBPF220081 Cartridge OBPF13064* Handle OBPF1RP70221 0BPF170817 2.5mm Hex Allen Wrench Weight OBPF1F80017* Escutcheon OBPF6F38018* Spray Head OBPF170707 OBPF170708 Battery pack Sensor control box 05/09/22 REV.A...
