Summary of Contents for Stage right 625892

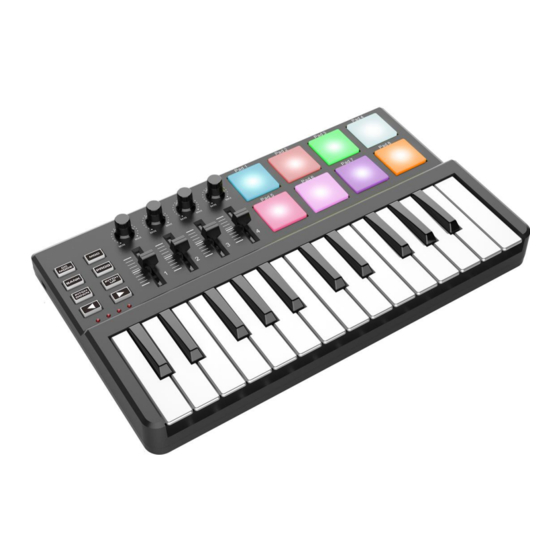

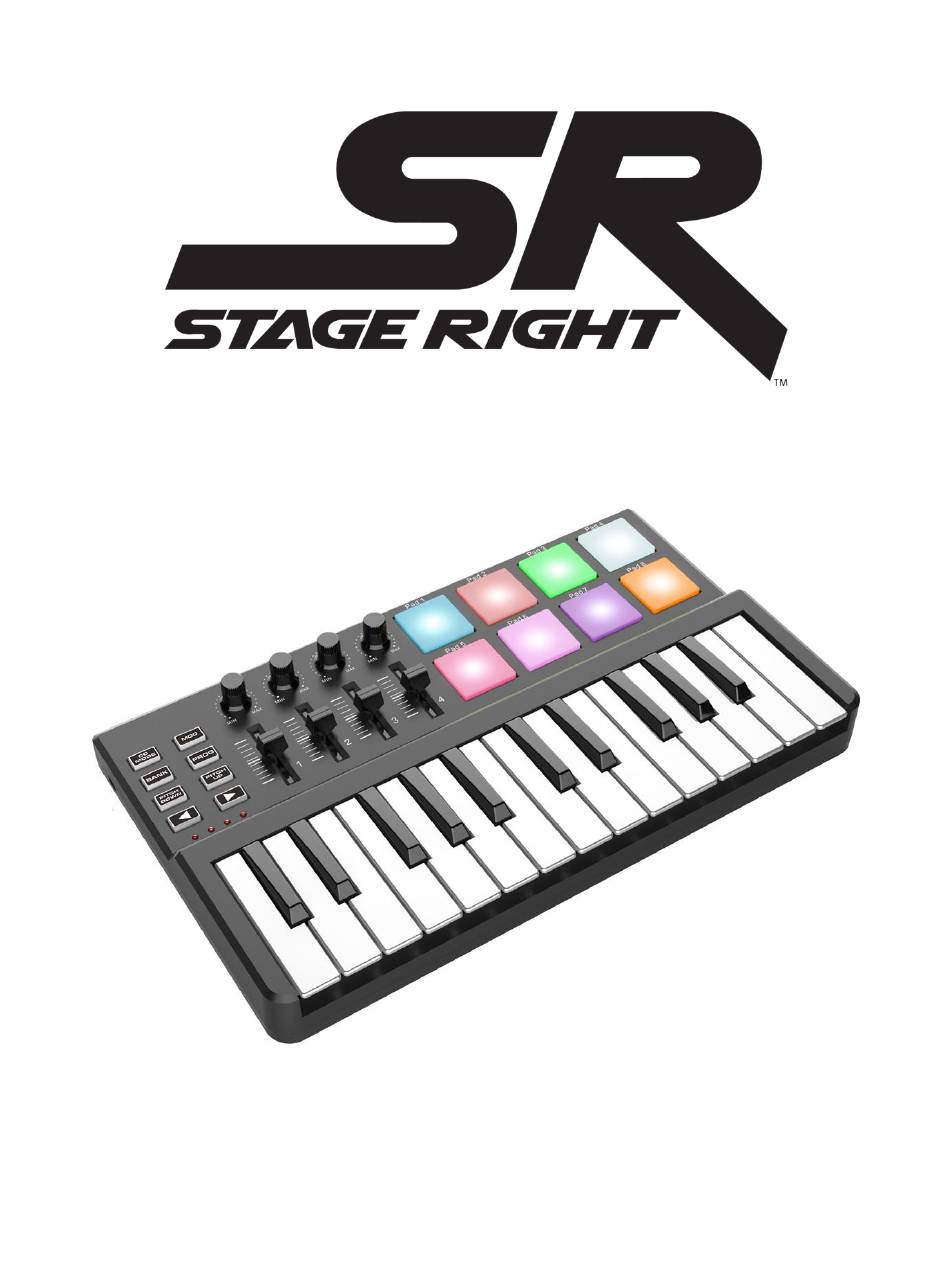

- Page 1 Mini USB MIDI Keyboard Controller with Pads P/N 625892 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ............................3 FEATURES ..........................................4 CUSTOMER SERVICE ....................................4 PACKAGE CONTENTS ....................................4 SYSTEM REQUIREMENTS ..................................5 Windows® ........................................5 Mac® OS X®........................................5 PRODUCT OVERVIEW ....................................6 DETAILED SETTINGS ....................................7 Common Controls ....................................7 Trigger Pads ........................................ -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • This device is intended for indoor use only. •... -
Page 4: Features
FEATURES • 8 assignable, velocity and pressure sensitive pads with RGB backlighting • 25 assignable velocity sensitive keys with three velocity curves and one constant velocity • 4 assignable control knobs • 4 assignable control sliders • 4 banks for different settings •... -
Page 5: System Requirements
SYSTEM REQUIREMENTS If using this keyboard with a computer, ensure that the computer has the following minimum capabilities. Note that USB hubs are not supported. Windows® • Pentium® 800 MHz or higher (CPU requirement may be higher for laptops) • 256MB RAM •... -
Page 6: Product Overview
PRODUCT OVERVIEW 1. CC MODE: Press the CC MODE button to activate CC Mode, which causes the 25 piano keys to send Control Change messages instead of Note messages. 2. BANK: Press the BANK button to turn Bank Mode on or off. When Bank Mode is on, use the ◄... -
Page 7: Detailed Settings
8. ►: When in normal operating mode, press the ► button to increase the pitch by a whole octave. 9. LEDS: One of the LEDs illuminates to indicate which bank is currently selected. 10. MIDI CONTROL GROUPS: Each MIDI CONTROL GROUP is composed of a knob and a slider, which can send Control Change messages. - Page 8 • Pitch Bend Speed: This setting determines the speed of pitch bends. The range of values is 1 ~ 4. • Key Transpose: This setting can be used to change the pitch up or down by a semitone. The range of values is -12 ~ +12. •...
-
Page 9: Trigger Pads
Trigger Pads • Assign Type: You can set the Pad to transmit Note messages or Control Change messages. You can also select No Assign to disable the pad. • CC/Note Number: Specifies the Note or Control Change number, depending on the selected Assign Type. -
Page 10: Knobs
will transmit the Note On message or ON Value when the Pad is pressed and will transmit the Note Off message or OFF Value the next time the Pad is pressed. • MIDI Channel: This setting determines which MIDI channel will be used to transmit the pad messages. -
Page 11: Sliders
• Lower/Left Value: Specifies the value of the Control Change message that is sent when the Knob is fully counterclockwise. The range of values is 0 ~ 127. Sliders The Sliders are used to send Control Change messages. • Enable: You can Enable or Disable the selected Slider. •... -
Page 12: Keys In Cc Mode
Keys in CC Mode The Keys normally send MIDI Note messages when press, but when CC Mode is enabled, they transmit Control Change messages. This screen allows you to configure the Control Change messages to send when the Key is pressed. •... -
Page 13: Technical Support
set to Toggle, it will transmit the ON Value when the Key is pressed and will transmit the OFF Value the next time the Key is pressed. TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. -
Page 14: Notice For Industry Canada
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Stage Right™, the Stage Right logo, and all Monoprice logos are trademarks of Monoprice Inc.
