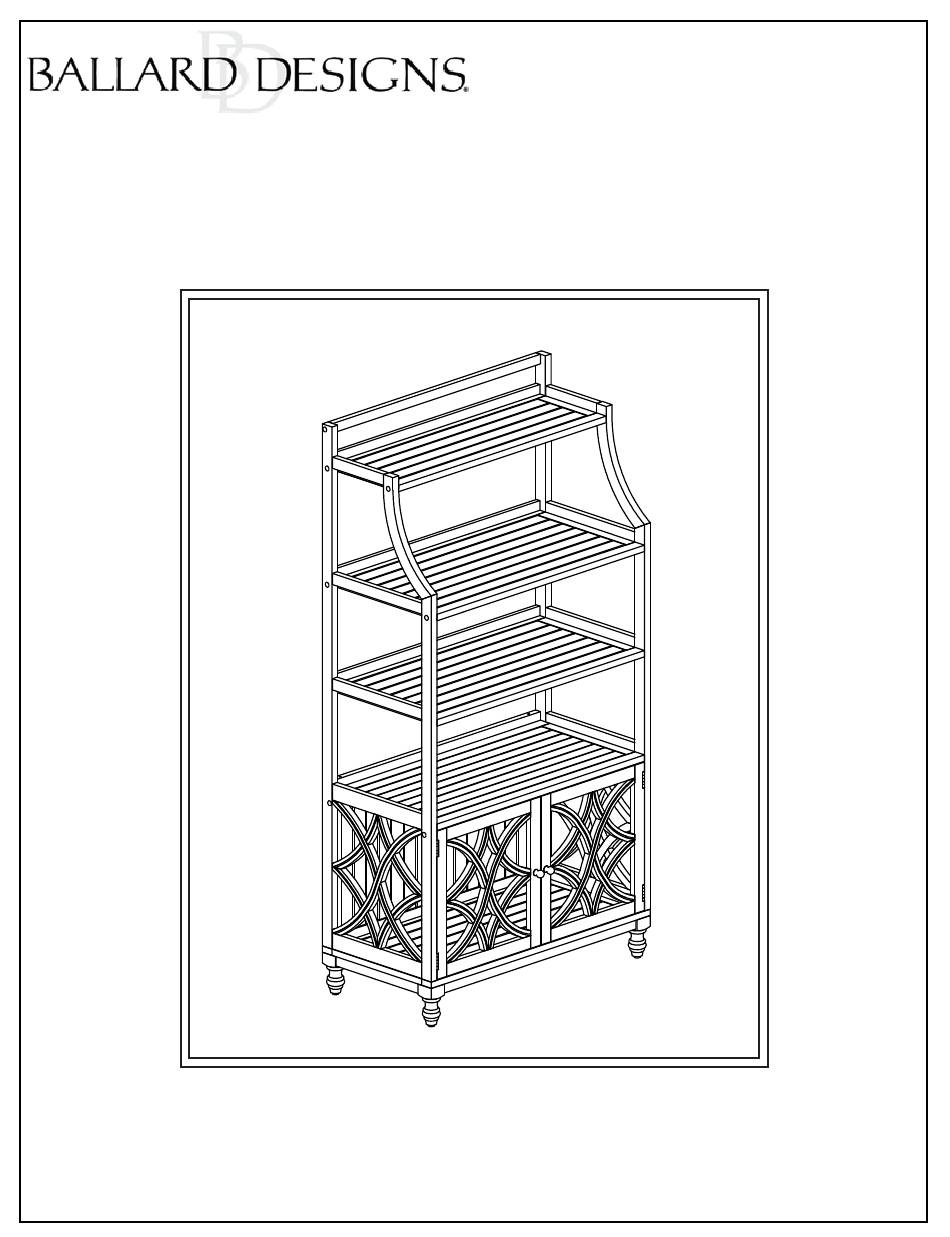

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Ceylon Bakers Rack ITEM NUMBER: MD100 DIMENSIONS OF ITEM ASSEMBLED: 70 3/8”H x 36”W X 18”D UPDATED: 9/16/2013 PRODUCTS ARE NOT INTENDED MADE IN VIETNAM FOR COMMERCIAL USE. Page 1 of 6...
-
Page 2: Tools Needed
Ltr. Components Qty. TOOLS NEEDED: -Screwdriver needed. Top Bar -Assembly requires 2 or more people. NOTE: Top Shelf Unpack and assemble the Bakers Rack on a smooth, clean surface to avoid scratching and losing parts. Bottom Middle Shelf (J) and Cabinet Back (N) Middle Shelf have dowels and do not screw in. - Page 3 STEP 1: Lay the Left Side (Q) on a smooth, clean surface. Then loosely attach the Top Shelf (H) and Top Bar (G) with the 60 mm Allen Screws (A) using the Allen Wrench (D). STEP 2: Lay the STEP 1 assembly on its back and attach the Top Middle Shelf (I), and the Bottom Shelf (K) with 60 mm Allen Screws (A) using the Allen Wrench (D).
- Page 4 STEP 3: Flip the assembly back on the Left Side (Q) and align the Right Side (P) with all the Shelves (G-K, N). Screw in the remaining 60mm Allen Screws (A) to the Right Side (P) and Shelves (G-I, K). Fully tighten all the 60mm Allen Screws securing the Left Side (Q) and Right Side (P).
- Page 5 STEP 6: Attach the Left (L) and Right (M) Doors to the Rack by sliding the female hinge on each Door onto the male receiving part of the hinge on the Right (P) and Left (Q) Sides. Be sure the door catches are aligned when the Doors are closed.
- Page 6 ANTI TIP INSTALLATION: PART F Ltr. Qty. Hardware Included Wall Brackets 50mm Screws Wall Plugs Retention Belts Attach the Wall Brackets (S) to the wall using 1 50mm Screws (T) for each Bracket and Wall Plug (U). Use the Retention Belts (V) to connect the Wall Brackets (S) to the Brackets on the back of the Top Shelf (H).
