INSTALLATION
MANUAL

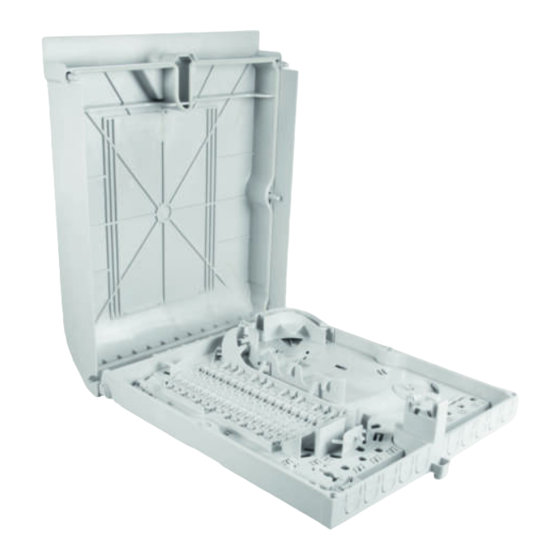

Optibox 16
Table of contents
• ASSEMBLY INSTRUCTION ............................................................... 1
ASSEMBLY INSTRUCTION
Scope of delivery:
-
1 x OTB16 Base incl. Inlay
-
1 x OTB16 Cover
-
6 x OTB Fixing Latches
-
1 x OTB Patchfield
-
1 x OTB16 Connection Grommet
-
8 x OTB U-Shapes Grommet
Required tools:
-
-
-
-
-
-
-
HUBER+SUHNER disclaims any liability resulting from incorrect installation and use, including any damages resulting from the use of tools and
accessories other than the ones recommended herein. Any installation performed by unqualified personnel voids the product warranty provided by
HUBER+SUHNER. All due care and attention must be exercised when performing the installation of these products. For advice concerning the
general handling of these products please contact HUBER+SUHNER.
Screw driver cross recess large
Drilling machine
Knife
Saw
Clipper
Cable stripper
Screws max. ø 6mm and
suitable anchors for wall
mounting
HUBER+SUHNER AG
Fiber Optics
Fiber Management Systems
DOC-0000401065 Rev D
Date: 19/08/2016
Page 1 of 10
