- Page 1 OPERATION MANUAL Marsstraße 9 ● 85609 Aschheim near Munich - Germany Tel.: +49(0)89 - 14 33 29 30 ● Fax: +49(0)89 - 14 33 29 329...
- Page 2 Dear customers You probably want to get to know your new hoover as quickly as possible and be able to operate it safely. Please read these instructions for use before you start using the appliance. To avoid accidents and damage, start with the chapter >>Safety instructions<< and be sure to observe the instructions listed here.

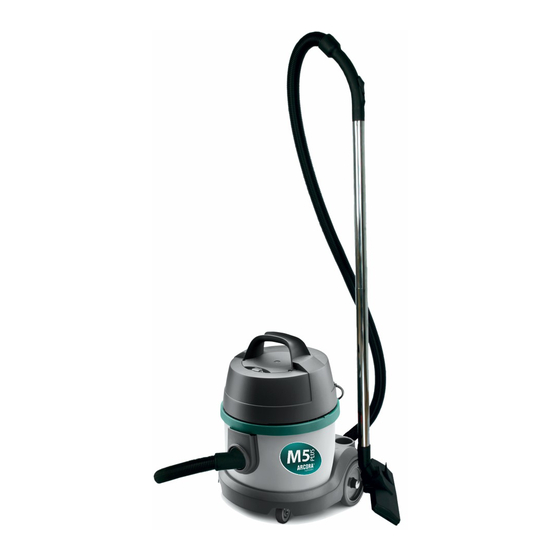

- Page 3 Section 1 Description of the vacuum cleaner The M5PLUS vacuum cleaner can be used as a dry vacuum cleaner for cleaning large areas in offices, hotels, restaurants, doctors' practices, shops. The vacuum cleaner can be used to clean hard floors (stone, parquet, plastic) as well as soft floors (carpets, upholstered furniture, curtains).
- Page 4 Operating elements Section 2 Slide control of the suction power Brush nozzle Upholstery nozzle Crevice nozzle Metal plug tube Fleece filter bag Floor nozzle...
- Page 5 Section 2 Operating elements The flexible suction hose with rotating end pieces facilitates the Upholstery nozzle operation of the accessories. The bleed valve is on the handle of With the upholstery nozzle the suction hose. you can dust off upholstered With the slider of the valve you can adjust the suction power, furniture, mattresses, pillows, especially recommended for curtain cleaning.
- Page 6 Section 2 Operating elements Floor nozzle The floor nozzle is the most commonly used element of the accessory. It is suitable for large flat surfaces such as carpets or floors. For vacuuming smooth floors such as PVC, parquet or stone, floor nozzle additionally equipped with a brush.
- Page 7 Section 3 Handling Switch button Locking lever Connection Housing opening for the suction hose...
- Page 8 Section 3 Handling Before switch on the vacuum cleaner: Replacing the dust bag ♦ Please make sure that the fleece filter bag is correctly ♦ Turn off the vacuum cleaner and pull out the plug inserted in the housing inlet. Do not use the vacuum cleaner if no dust bag is inserted.
- Page 9 Section 3 Handling Unscrew the Remove Replacing the foam and motor protection filter . the screws the lid From time to time, the foam and motor protection filters must be changed. In the event of visible contamination, you can clean them by rinsing in lukewarm water with a little detergent and after complete drying, replace the cover.
- Page 10 Section 3 Handling Motor protection filter Screws ♦ Turn off the vacuum cleaner. ♦ Remove the lid. Lid insert ♦ Remove the motor protection filter from the motor cover. ♦ Insert a new or cleaned motor protection filter. Motor protection filter Lid insert Motor protection filter...
- Page 11 Section 4 Safety instructions Safety instructions ♦ ♦ The vacuum cleaner may only be used with the Please note that improper handling of electrical fleece filter bags and filters approved for this appliances may present hazards that may not be machine.
