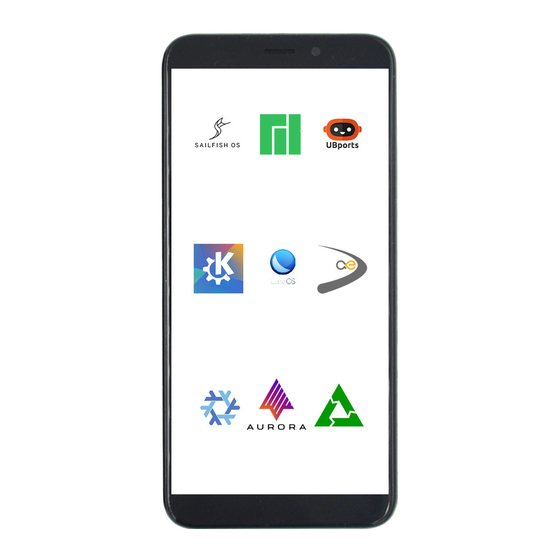

PINE64 PinePhone User Manual

Hide thumbs Also See for PinePhone:

Table of Contents

Download this manual

PINEPHONE USER MANUAL - QUICK START GUIDE

1 Packaging contents

2 Safety cautions and recycling

2.1 Cautions

2.2 Recycling of components and batteries

3 Getting started

3.1 Back case removal

3.2 Initial setup

3.2 Privacy switches and pogo pins

3.3 Operating the PinePhone

4 Operating systems

5 Hardware

5.1 External component description

5.2 Device hardware specifications

5.3 Troubleshooting common issues

6 Regulatory compliance

7 Documentation and contact information

Table of Contents

Need help?

Do you have a question about the PinePhone and is the answer not in the manual?

Page 1 PINEPHONE USER MANUAL - QUICK START GUIDE 1 Packaging contents 2 Safety cautions and recycling 2.1 Cautions 2.2 Recycling of components and batteries 3 Getting started 3.1 Back case removal 3.2 Initial setup 3.2 Privacy switches and pogo pins 3.3 Operating the PinePhone...
Page 2 Before using the device please read this manual carefully. Operational variables and cautions: ● The PinePhone should be charged using a 15W (5V 3A) USB-PD power adapter. Charging at a higher voltage may result in damage to the device. ●...
Page 3 To remove the back case of the PinePhone, use your fingernail or another soft object to pop up the back case. A notch to easily remove the cover is located at the bottom left of the PinePhone when its back is facing you and its camera is oriented up.
Page 4 3.3 Operating the PinePhone The PinePhone is capable of running multiple operating systems (OSes) ( s ee section 4 ) from internal flash eMMC as well as a SD card. Bootable SD cards have priority over internal eMMC. To power the PinePhone ON, press and hold the power button for 2 seconds. Boot-up time varies from one OS to another, but you should permit up-to 60 seconds for the phone to start fully.
Page 5 To perform a hard shutdown, hold the power button down for 5 seconds. ● In the event one or more components of the PinePhone fail to engage, ensure that the privacy switches ( s ee section 3.2 ) are in the ON position.
