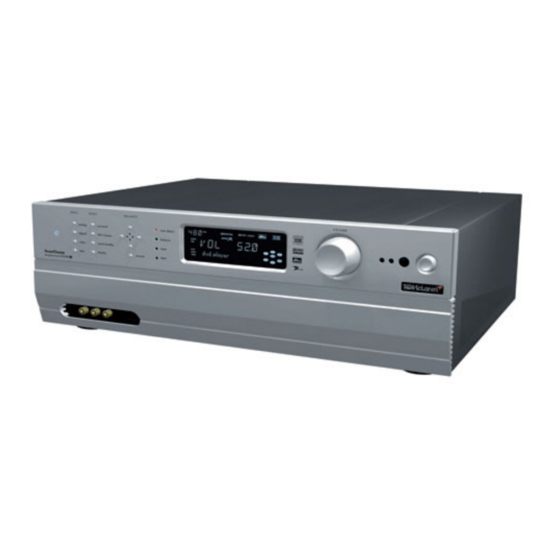

MANUFACTURING INSTRUCTIONS
Manufacturing Instructions:
NOTE: Please read through these instructions fully before attempting
installation.
Anti-static precautions must be taken at all times.

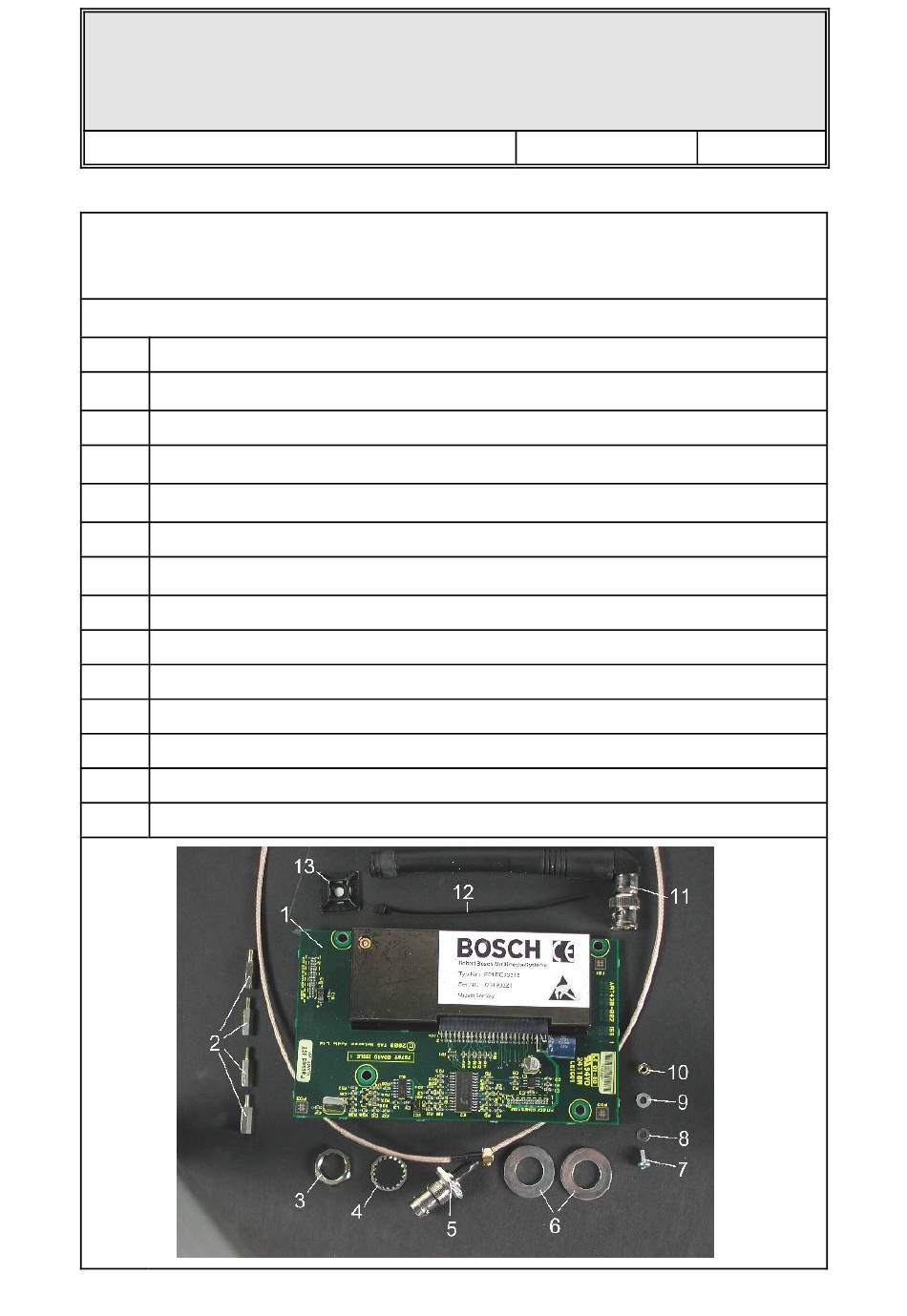

Contents of kit:
Ident
Description and quantity
1
DAB card with module fitted x 1
2
M3 x 12mm hex standoff x 4
3
Nut 16mm A/F for DAB aerial connector
4
Shakeproof washer for DAB aerial connector
5
6
M12 Plain washer x 2
7
M3 x 6mm pan Torx screw x 1
8
M3 crinkle washer x 1
9
M3 plain washer x 1
10
M3 full nut x 1
11
DAB right angled antenna x 1
12
Cable Tie x 1
13
Self adhesive cable tie base x 1
Y:\design\Manufacturing Instructions\AVP MIs\MI-10459T Rev01.wpd
MI-10459T Rev01
DAB fitting
Team Affected
CELL
Page 1 of 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TAG MCLAREN AUDIO AV192R
Summary of Contents for TAG MCLAREN AUDIO AV192R
- Page 1 MANUFACTURING INSTRUCTIONS MI-10459T Rev01 DAB fitting Manufacturing Instructions: Team Affected CELL NOTE: Please read through these instructions fully before attempting installation. Anti-static precautions must be taken at all times. Contents of kit: Ident Description and quantity DAB card with module fitted x 1 M3 x 12mm hex standoff x 4 Nut 16mm A/F for DAB aerial connector Shakeproof washer for DAB aerial connector...
- Page 2 Assembly Instructions Remove cover Place the AV192R on a clean bench with the rear facing you. Remove the 5 M3 Torx screws that retain the cover on the rear. Remove the M4 countersunk Torx screw from each side of the cover.
- Page 3 MANUFACTURING INSTRUCTIONS MI-10459T Rev01 DAB fitting Manufacturing Instructions: Team Affected CELL Fit support pillars Hold Dual Sharc card in position with the 3 remaining pillars supplied. Attach pink/black cable Plug DAB assembly into the headers on the Dual Sharc card, take care to ensure they are aligned - do not force the board down.
- Page 4 MANUFACTURING INSTRUCTIONS MI-10459T Rev01 DAB fitting Manufacturing Instructions: Team Affected CELL DAB aerial cable assembly Ensure that the two large washers are fitted to the connector before inserting this into the chassis. Fit shake proof washer and nut on outside to retain in position When tightening nut of connector be careful not to damage the silkscreen legend of the...
- Page 5 Team Affected CELL Detecting the upgrade The AV192R will detect the new board automatically. This can be checked using the on-screen menu as follows: Press menu. Select ‘ Change Set-up’ . Press ok. Select ‘ AV Options + Backup’ .
