INSTALLER
POOL OWNER
THESE INSTALLATION INSTRUCTIONS APPLY TO
AQUA-QUIP EVO2 LED LIGHTS FOR CONCRETE POOLS ONLY.

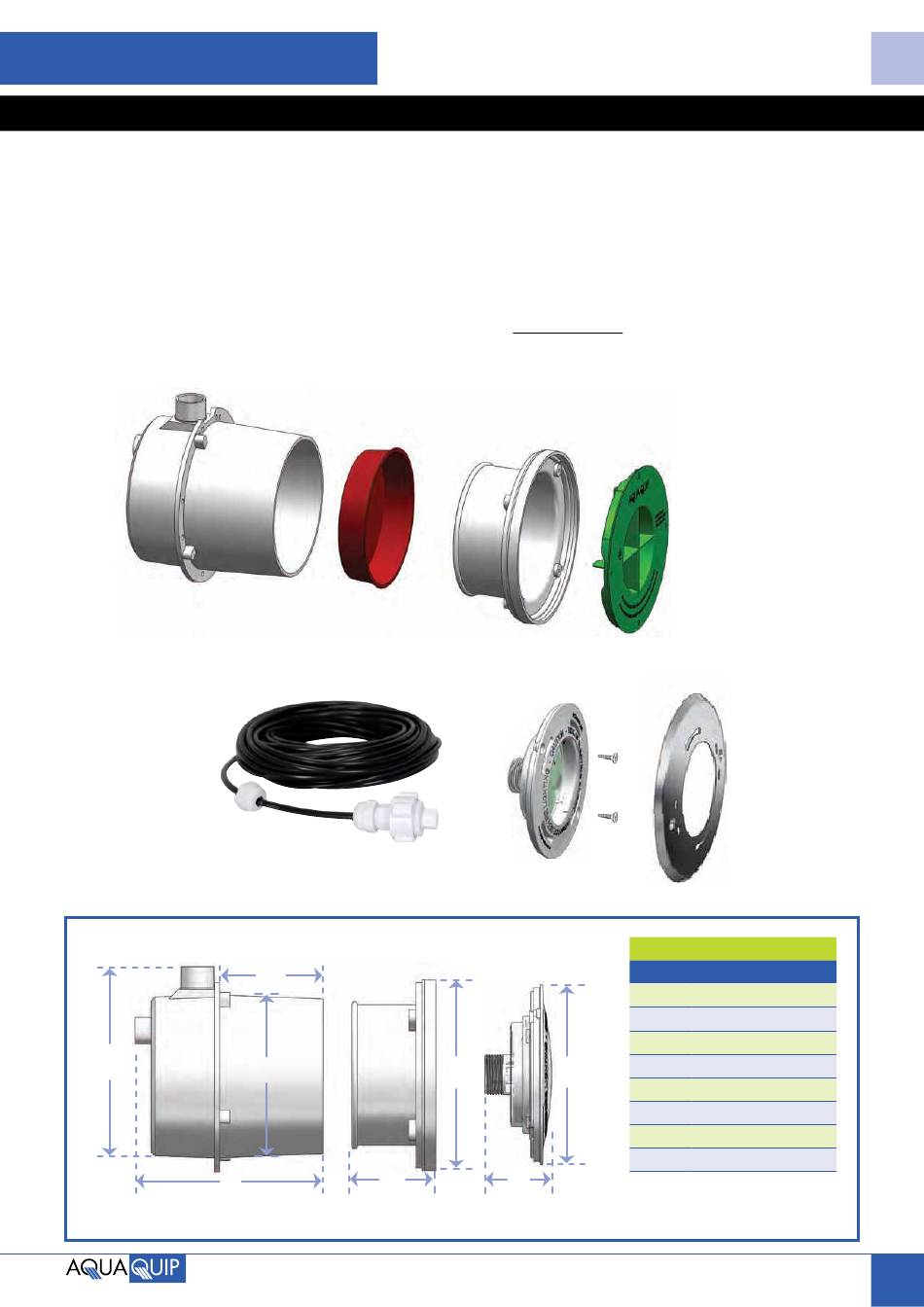

Included in the package are the following items:
Housing
Cable
Cable
Seal
Assembly

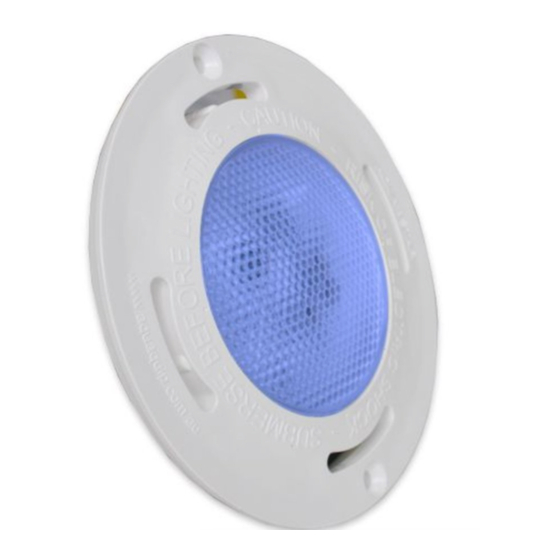

Evo2 Flush Mounted Pool Light – Concrete
K
L
B
A
Dimensions for the major components of Aqua-Quip Evo2 LED Pool Lights are obtained by
cross-referencing the relevant code against the table
E V O 2 L E D L I G H T S F O R C O N C R E T E P O O L S – I N S T A L L A T I O N I N S T R U C T I O N S
EVO2 LED
EVO2 LED
INSTALLATION INSTRUCTIONS
– READ ENTIRE INSTRUCTION SHEET BEFORE
PROCEEDING TO INSTALL.
– PLEASE KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
PLEASE NOTE
Red
Concrete Cap
Quick Connect
Plug Kit
D
C
E
Adjustable
Dress Ring
Evo2 LED
Screw
Light
Kit
F
H
G
LIGHTS FOR
LIGHTS FOR
CONCRETE POOLS
CONCRETE POOLS
Green
Plaster Cap
Optional
Stainless Steel
Dress Ring
(not included as
standard)
CODE
DIMENSIONS (mm)
EVO2
A
144
B
154
C
120 max
D
79
E
63
F
143
G
49
H
135
K Accepts 20mm conduit or 25mm socket
L Accepts 20mm socket
1
Advertisement
Related Manuals for Aqua Quip EVO2 LED
Summary of Contents for Aqua Quip EVO2 LED
- Page 1 EVO2 120 max K Accepts 20mm conduit or 25mm socket Dimensions for the major components of Aqua-Quip Evo2 LED Pool Lights are obtained by L Accepts 20mm socket cross-referencing the relevant code against the table E V O 2 L E D L I G H T S F O R C O N C R E T E P O O L S – I N S T A L L A T I O N I N S T R U C T I O N S...
- Page 2 If being installed facing up, ensure that there is minimum 100mm of water cover. Evo2 LED Pool Lights can be installed on a vertical or horizontal pool surface. Up to 1.6m of cable can be wound up inside the Evo2 Concrete Housing.
- Page 3 Protective Connector The Evo2 LED pool light cable is 2-core, 1mm² cable with an outer diameter of ±7mm. It is supplied factory fitted with the Quick Connect Plug Kit and Protective Connector Cap. This allows the installer/ builder to install the cable and build the pool without the need to connect the pool light until just prior to filling.
- Page 4 O-rings are lubricated and in good order, clean any grit or dust that may be around the O-rings. Push the Quick-Connect Plug Kit The Evo2 LED Pool Light is factory-sealed into the rear of the Evo2 Pool Light and tighten and is not user-serviceable.
