Aqua Quip QC Series Installation Instructions & Owner's Manual

Installation Instructions & OWNERS MANUAL
INSTALLER
POOL OWNER
THESE INSTALLATION INSTRUCTIONS APPLY TO AQUA-QUIP QC
SURFACE MOUNTED LED LIGHTS FOR CONCRETE POOLS ONLY.

IMPORTANT INFORMATION TO INSTALLER/ELECTRICIAN

• All QC Series LED Lights operate from a VARIABLE SUPPLY VOLTAGE
from 12volt AC through to 32volt AC.
Aqua-Quip's transformers allow multiple
QC Series LED Lights to be connected, refer
to TRANSFORMERS info panel on page 4.
TECHNICAL SPECIFICATIONS AQUA-QUIP QC SURFACE MOUNTED LED POOL LIGHTS
Power Requirement for Fixed Colour and
Multi-Colour LEDs:
Pool Light Protection Rating: IPX8 to 2.0m depth.
Temperature Range:
Installation Location:
Power Consumption
(Fixed Colour LEDs):
Power Consumption
(Multi-Colour LEDs):
Voltage Tolerance (Fixed Colour and
Multi-Colour LEDs):
Light Colour:
Light Output (Typical):
Fault Protection:
QC SERIES SURFACE MOUNTED LED LIGHTS FOR CONCRETE POOLS – INSTALLATION INSTRUCTIONS & OWNERS MANUAL
QC SERIES
– READ ENTIRE INSTRUCTION SHEET BEFORE
PROCEEDING TO INSTALL.
– PLEASE KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
PLEASE NOTE
• For new pool construction, a 12volt AC
transformer must be installed in accordance with
AS/NZS 3000:2007, as amended.
"Each underwater luminaire
must be supplied from an
individual source. An individual
source may be an individual
isolation transformer or an
individual winding on an
isolation transformer that has a
number of secondary windings".
12V ~ 32V AC 50/60Hz.
0°C ~ +40°C pool water temperature.
200mm ~ 400mm below water level.
Maximum 16VA at all voltages 12V ~ 32V.
Maximum 22VA at all voltages 12V ~ 32V.
10.5V AC ~ 35V AC.
White = >5000K, Blue = 475nm, Green = 525nm.
White = 1050 Lumens, Blue = 300 Lumens, Green = 650 Lumens.
Power Cycle "Run Dry" thermal cut-out. Voltage transient clamping.
SURFACE MOUNTED LED
LIGHTS for CONCRETE POOLS

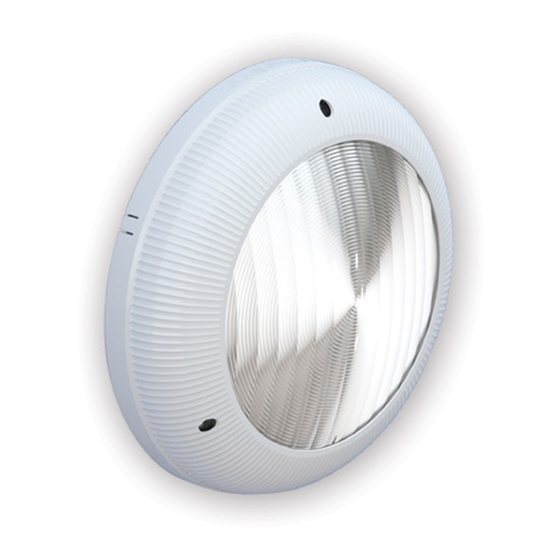

QC Surface Mounted Pool Light Dimensions
67mm
230mm
1
