- Page 1 MTA 50 MTA 65 Serie MTA 80 Serie INSTALLATION MANUEL...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page GENERAL ........................3 IMPORTANT SAFETY INSTRUCTIONS ..............3 PACKING LIST ......................4 USAGE ..........................4 EXEMPTIONS ......................5 CABLE ENTRY PLATE CONNECTIONS..............5 INSTALLATION MANUAL ..................6 THE CASES THAT SHOULD BE CONSIDERED ..........6 INSTALLATION ......................7... -
Page 4: General

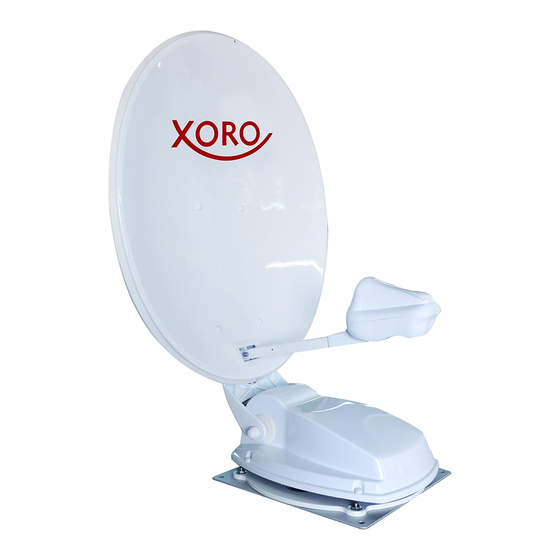

We thank you for purchasing Vehicle Satellite Receiver System. GENERAL Motosat (Vehicle Satellite Receiver System) is designed to be used for receiving and watching satellite broadcasting in road vehicles like passenger, coaches, caravans, minibuses, trucks and lorries while these vehicles are at park position. IMPORTANT SAFETY INSTRUCTIONS Do not open the cover of the unit. -
Page 5: Packing List
PACKING LIST Motosat Dish Motor- assembly, with connected junction box 2,5 mt. Motor control cable 2,5 mt. RG6-U-6 LNB cable Self-adhesive foam band Motosat Dish Installation Manual USAGE Operating the system; First be sure all the connections between antenna system, Controlbox and receiver to the loopout port of Controlbox are connected properly. -
Page 6: Exemptions
EXEMPTIONS We are not liable for: 1. Damage caused by fires, natural disaster (such as thunder, earthquake, etc.), acts by third party, accidents, misuse, or use in other improper conditions. 2. Incidental damages (such as profit loss or interruption to business, modification or erasure of data and so forth) caused by use or inability to use of this product. -
Page 7: Installation Manual
INSTALLATION MANUAL THE CASES THAT SHOULD BE CONSIDERED Make sure that there are no physical obstacles on the vehicle that prevent watching the satellites and motion of the dish, when choosing the installation place of the antenna. Installation place should be smooth and plain surface and on the centerline according to the vehicle width. -
Page 8: Installation
INSTALLATION Before installing the system, make sure that the place is dry and clean, on which the antenna will be mounted. It is important that the closing direction of the antenna should be towards back of the vehicle. In this position, the wind effect is at the minimum level during the driving of the vehicle when the antenna is closed. - Page 13 TECHNICAL SPECIFICATIONS Antenna motion: Two axis; azimuth and elevation Satellite search: Automatic at stationary position only Connection: Via two cables (Control and LNB) Azimuth moving range: 0° ~ 380° limited Azimuth moving speed: 15°/second Elevation moving range: 0° ~ 90° Elevation moving speed: 10°/second Operating voltage:...
