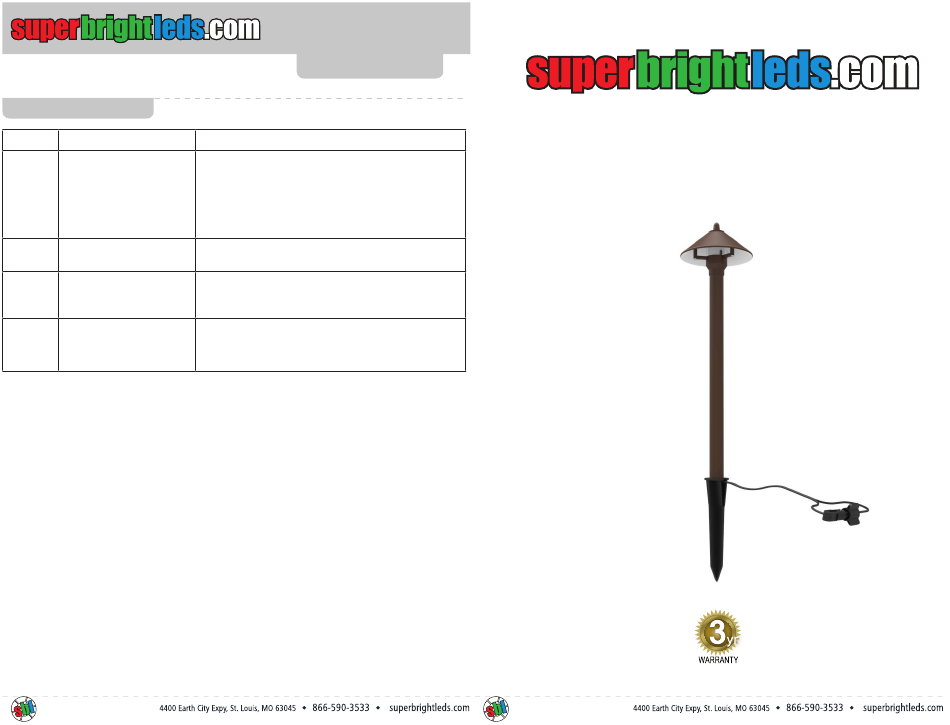

superbrightleds PLC-F Installation Manual

Important: Read all instructions prior to installation.
Landscape LED Path Light with Cone Shade
Trouble Shooting
Problem Possible Cause
Fixture does 1. There is no power to 12V power
not light supply.
2. The quick connector does not
make contact with wires.
3. The primary landscape wire is not
connected to 12V power supply.
4. There is a disconnection in prima-
ry landscape wire.
5. Minimum load not exceeded.
Light flickers 1. There is a loose connection with
(one fixture) quick connect on primary land-
scape wire.
Light flickers 1. There is a loose connection to 12V
(all fixtures) power supply.
2. Minimum load not exceeded.
Light is dim 1. Maximum load of 12V power
supply has been exceeded.
2. Recommended distance per land-
scape wire guage exceeded.
* For superbrightleds.com technical help call 866-590-3533 or use our online chat service.
Rev Date: V1 02/05/2018
User Manual
Part Number:
PLC-F
PLC-F-WWCOB
Solution
1. Check the outlet to 12V power supply and ensure that a breaker or GFCI
circuit has not been tripped.
2. Check the wiring of quick connector that it is screwed tightly, piercing
through wire insulation to make solid contact with wire conductors.
3. Check primary landscape wire connection to 12V power supply.
4. Follow wires from fixture to 12V power supply to ensure a continuous run
and/or follow wires between problematic fixture and working fixture.
5. Ensure that your power supply does not have a minimum load requirement.
Consult the power supply specifications or manual.
1. Tighten quick connects, and ensure contacts are piercing through wire
insulation to make solid contact with wire conductors.
1. Disconnect power to 12V power supply and ensure primary landscape wire
connections are securely fastened and not in contact with other wire.
2. Ensure that your power supply does not have a minimum load requirement.
Consult the power supply specifications or manual.
1. Check for other lights or other load on same system and/or increase 12V
power supply wattage.
2. Increase primary landscape wire gauge size to recommended guidelines.
* For superbrightleds.com technical help call 866-590-3533
Landscape LED Path Light with
Cone Shade
PLC-F
Installation Manual
Rev Date: V1 02/05/2018
