Z506
User Manual
Realtimes Beijing Technology Co., LTD.
Fax：+86 010-84284669 / 84280996 / 84278927
Email:
info@realtimes.cn
Web Page:
http://www.realtimes.cn
Address:
9th Floor, Block B, 20th Heping Xiyuan, Pingxi Street, Chaoyang
District, Beijing 100013,P.R.China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z506 and is the answer not in the manual?

Questions and answers

Related Manuals for RTimes Z506

Summary of Contents for RTimes Z506

  • Page 1 Z506 User Manual Realtimes Beijing Technology Co., LTD. Fax：+86 010-84284669 / 84280996 / 84278927 Email: info@realtimes.cn Web Page: http://www.realtimes.cn Address: 9th Floor, Block B, 20th Heping Xiyuan, Pingxi Street, Chaoyang District, Beijing 100013,P.R.China...
  • Page 2 Revision History Applicable hardware Revision Date Reason for change Modified by version V1.0 2020.2 Initial release V1.0 V2.0 2020.9 Add line package configuration V1.0...
  • Page 3 (including Z506). Anti-static safety protection measures include, but are not limited to the following: a) The smart box should be placed in an anti-static bag during transportation and storage, and then the board should not be taken out during installation and deployment.
  • Page 4 3) Burn in verification of all BSP support packages provided by the company; 4) The company released burn environment construction, entry-level use. ; 5) Various peripheral module drivers released by the company; 6) The company's product fault diagnosis and after-sales maintenance services; 2. Scope of technical discussion Z506 Reference Manual V1.0...
  • Page 5 Updates of subsequent documents, BSP, driver files and other official account will be updated in time. We will pay close attention to our developments in order to ensure that your information is up to date. We will push through WeChat public. Z506 Reference Manual V1.0...

  • Page 6: Table Of Contents

    OWER INPUT PORT ..........................12 4.6 OTG-USB2.0 CONNECTOR ..........................12 4.7 FDP-LINK III CONNECTOR ............................12 4.8 F UNCTION CONNECTOR 4.8 W ..........................13 I ANTENNA CONNECTOR 5 HARDWARE UPDATE HISTORY........................13 6 PRODUCT SIZE DIAGRAM..........................14 7 SOFTWARE/BSP DETAILS..........................14 TERMS OF WARRANTY............................15 Z506 Reference Manual V1.0...

  • Page 7: Company Profile And Product Introduction

    1 Product introduction RTSS - Z506 to one based on NVIDIA Jetson ™ NANO series ™ module design of your new feiyun box, built-in integration 128 nuclear Maxwel ™ architecture of GPU NANO module, Ubuntu 18.04 operating system, with 0.5 TFLOPS the AI processing capacity of floating point arithmetic, using super strong light...

  • Page 8: Ordering Information

    Including cable package (HDMI, serial port, SPI, I2C); Includes power adapter, provides Ruitai new Era RTSO-6001B Linux4Tegra software support package, passed THE 3C and CE certification RTS-NANO-AC/DC Power Adaptor for Z506/-S, 100-240VAC/5V/4A,20W RTS-IMX390-F120(optional) FPD-LINK III camera Cable-RTS-XF120(optional) Cable for FPD-LINK III camera, length X=2,5,10(m)

  • Page 9: External Interface Function And Location

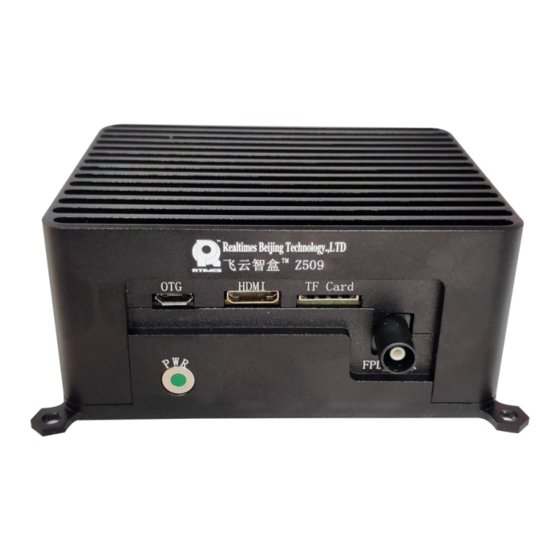

    Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html 2 External interface function and location Z506 FRONT Z506 BACK Z506 Reference Manual V1.0...

  • Page 10: Installation And Use

    The steps to enter the Recovery mode are as follows: Turn off the power supply to the system. Use a USB cable to connect the OTG port of the Z506 and the USB port of the Jetson development host. Short connect 1 and 9 pins of Button connector and supply power to the system. The power supply shall be maintained for more than 3 seconds, and then disconnect 1 and 9 pin short wiring of Button connector.The system enters the Recovery mode, and subsequent operations can be...

  • Page 11: Connectors Description

    4.2 Ethernet connector Gigabit Ethernet connector Function Ethernet marking RJ45 Type 4.3 USB3.0 connector Function USB3.0 connectors marking USB3.0 Type UBS3.0 Type-A 4.4 SD card connector SD card interface Function marking TF CARD Type Micro SD（TF） Z506 Reference Manual V1.0...

  • Page 12: Power Input Port

    4.7 FDP-LINK III connector Function FDP-LINK III camera input connectors marking FDP-LINK camera port Type 4.8 Function connector Function port Function URT/I2C marking Type Pin define Signal Signal UART2_TXD UART2_RTS UART3_TXD UART3_RTS UART2_RXD UART2_CTS UART3_RXD UART3_CTS Z506 Reference Manual V1.0...

  • Page 13: Wifi Antenna Connector

    Pin define Signal Signal DEV_3V3 BUTTON_PWR_O DEV_3V3 FORCE_RECOV WiFi antenna connector WiFi antenna interface Function AT1 AT2 marking ipex to sma female Type 5 Hardware update history Z506 hardware update history edition Updata description V1.0 Initial release Z506 Reference Manual V1.0...

  • Page 14: Product Size Diagram

    6 Product size diagram 7 Software/BSP Details The Z506 board works on systems that burn using the official original NVIDIA Linux For Tegra (L4T) ,HDMI, gigabit Ethernet, USB2.0, serial port, GPIO, SD card, I2C bus, fan interface, can be supported.

  • Page 15: Terms Of Warranty

    Rev.C 2/2020 Z506 Reference Manual V1.0...
