ELA Active RFid Quick Start

POWER ON :

Press briefly ON button
Init information displayed within 4 bip sound

POWER OFF :

Automatic
After 6 minutes without using
Manual
Press ON & MENU buttons at the same time
Press OK button for « Yes » to message « Turn Off ? »
Critical when battery is empty
Message: Low (charging battery required)
Message :LOW (impending shutdown)
(see Charging paragraph at end of document)

DISPLAY

[05AB78]
1st Line :
Radio level (maximum level when displayed on all the screen)
nd
2 Line :
Example
Tag ID detected – Hexadecimal value
05AB78
or
Tag ID detected – Decimal value (facilities n°: 05 and ID code: 43896)
05 - 43896
Hexadecimal or Decimal display:
Starting by pressing briefly ON button
Hold ON & MENU buttons withing the bip sound and release them all after the last bip
Press MENU button to select « Next » option till message « Display ID? »
Press OK button to select « OK »
Press MENU button to select « Incr » and change ID display : « DEC » decimal or « HEX » hexadecimal
Press OK to save settings
Niv 123 : value of reception level
Min = 255 (tag very far) to max = 0 (tag very close)
Bip sound on reception of code ID displayed
Specifications could be modified without any notification. Non contractual document.

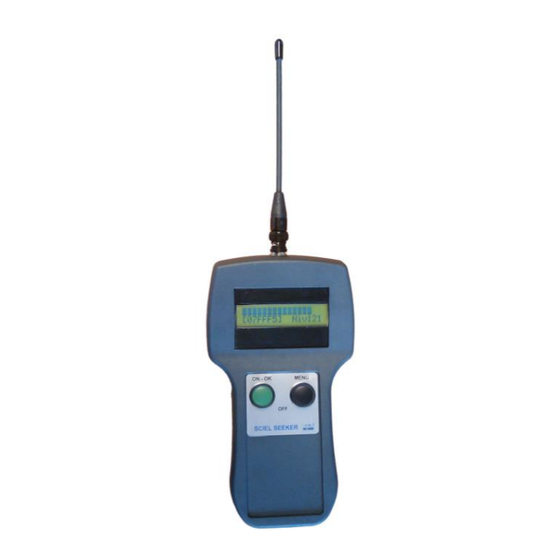

SCIEL SEEKER
QUICK START
Lev123
Hexadecimal
Page 1/4
www.ela.fr Copyright © 2012 ELA Innovation
05-43896
OR
Decimal
SCIEL SEEKER_QuickStart_01A_UK.doc
Lev123
