INSTRUCTION MANUAL
LOW FREQUENCY TRANSMITTER
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Signal conditioner (body + base socket) .............................(1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
85 – 132V AC rating: 85 – 132V, 47 – 66 Hz,
approx. 5.5VA
170 – 264V AC rating: 170 – 264V, 47 – 66 Hz,
approx. 5.5VA
24V DC rating: 24V ±10%, approx. 80mA
110V DC rating: 85 – 150V, approx. 25mA
■ GENERAL PRECAUTIONS
• Before you remove the unit from its base socket or mount
it, turn off the power supply and input signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -5 to +55°C
(23 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
(50 Hz minimum)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL

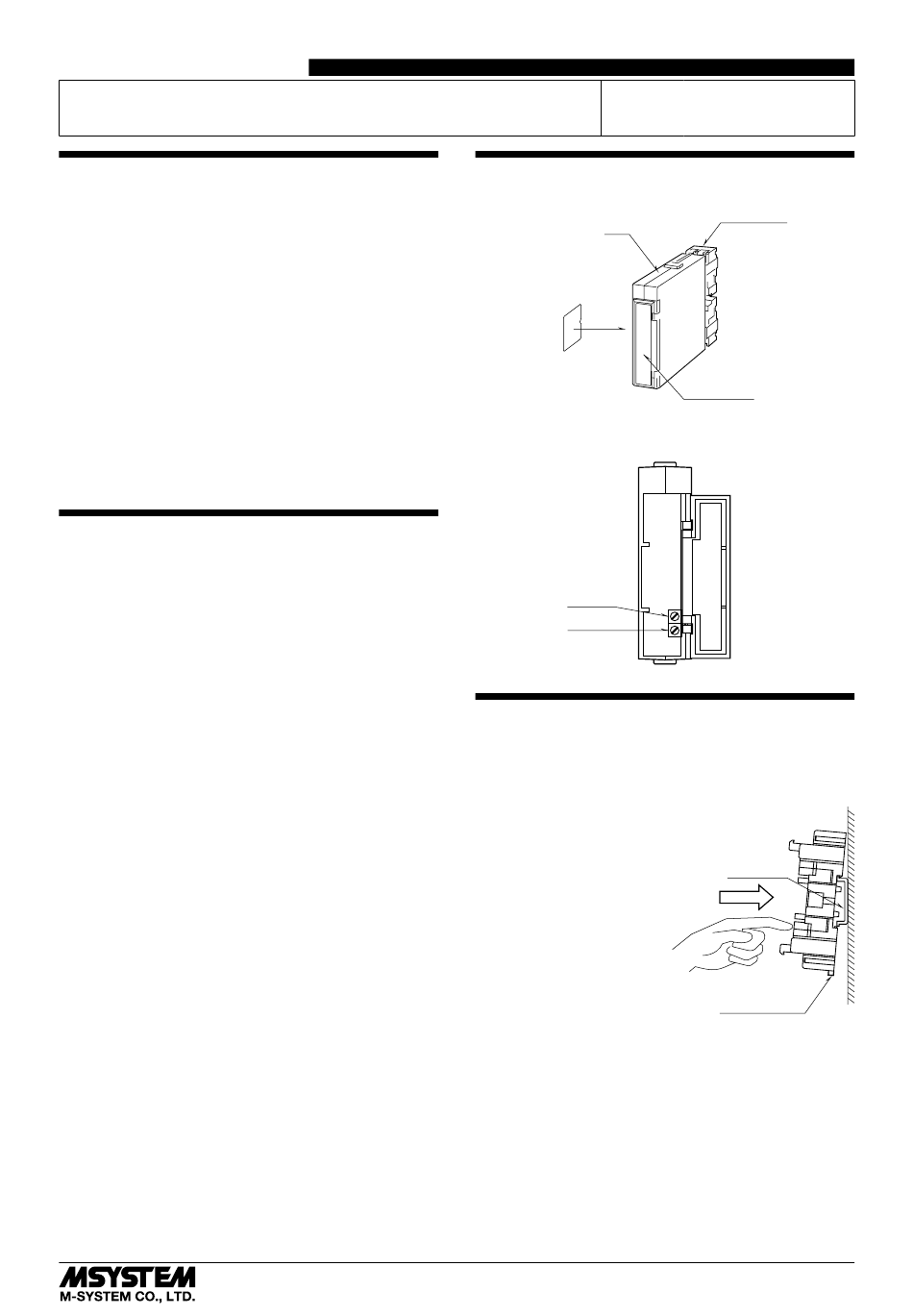

COMPONENT IDENTIFICATION
Body
Connection
Diagram
(side)
■ FRONT PANEL CONFIGURATIONS
Zero Adj.
Span Adj.
INSTALLATION
Pull out the body in pressing the clamps located at the top
and bottom of the unit for separate the body from the base
socket.
■ DIN RAIL MOUNTING
Set the base socket so that
its DIN rail adaptor is at
the bottom. Hang the upper
hook at the rear side of base
socket on the DIN rail and
push in the lower. When
removing the socket, push
down the DIN rail adaptor
utilizing a minus screwdriv-
er and pull.
■ WALL MOUNTING
Refer to "EXTERNAL DIMENSIONS."
FSP
Base Socket
Specifications
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
EM-1456 Rev.5 P. 1 / 2
