NOTICE: This drawing is the
UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS:
XX = .010
All information contained herein
XXX = .005
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
shall be confidential except
UNDER .250 ú
= +/- .005
.250 TO .500
= +.006 -.005
to the extent the information
OVER .500
= +.008 -.005
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
This drawing may not be copied,
ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REVISIONS
REV
ECN
DESCRIPTION
A
---
RELEASED TO PRODUCTION
B
1130 ADD .25 TO DEPTH
2631 UPDATE TB
C
3805 ADD CONNECTORS
D
REL APPR
REL DATE
REV APPR
MEP
7/9/97
DRAWN
TM
LW
8/11/97
JM
ENGR SERV

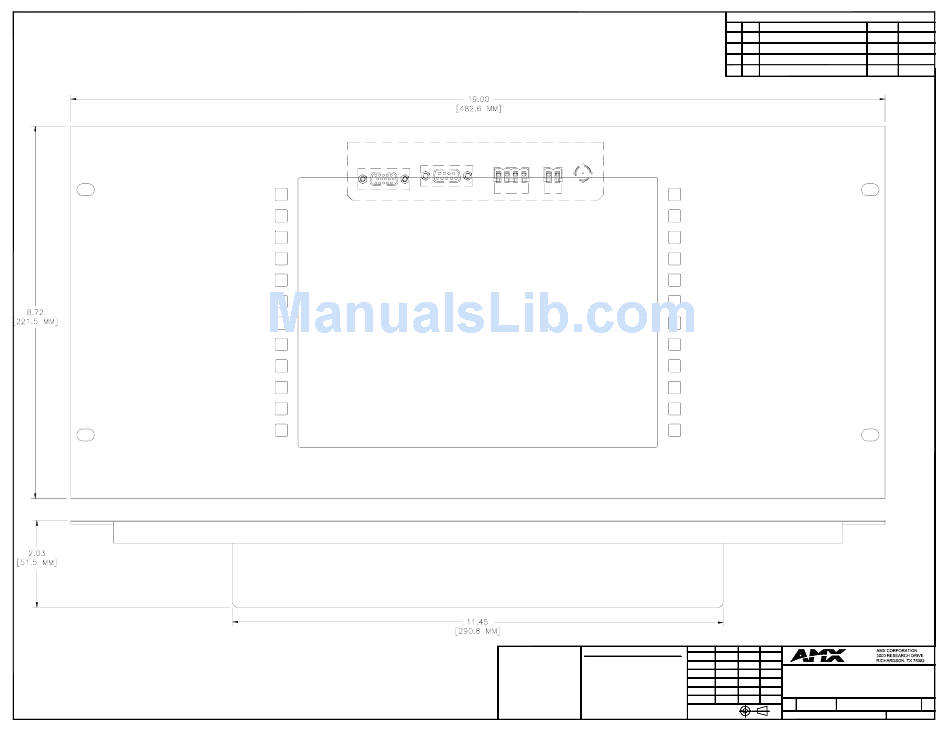

PICTORIAL,
RDR
8/8/97
PS
ENGINEER
AXM-CA10, -CV10, CAVGA, CVGA
III
8/13/97
KZ
PROD ENGR
BS
7/3/03
BS
MATL SUP
PC
8/11/97
AK
SIZE
SCALE
DWG. NO.
QUALITY
C
FULL
95-0951-03
THIRD ANGLE
PROJECTION
95-0951-03-D
DATE
APPROVED
8/8/97
12/11/98
7/30/01
7/3/03
REV.
D
1 OF 1
SHEET
