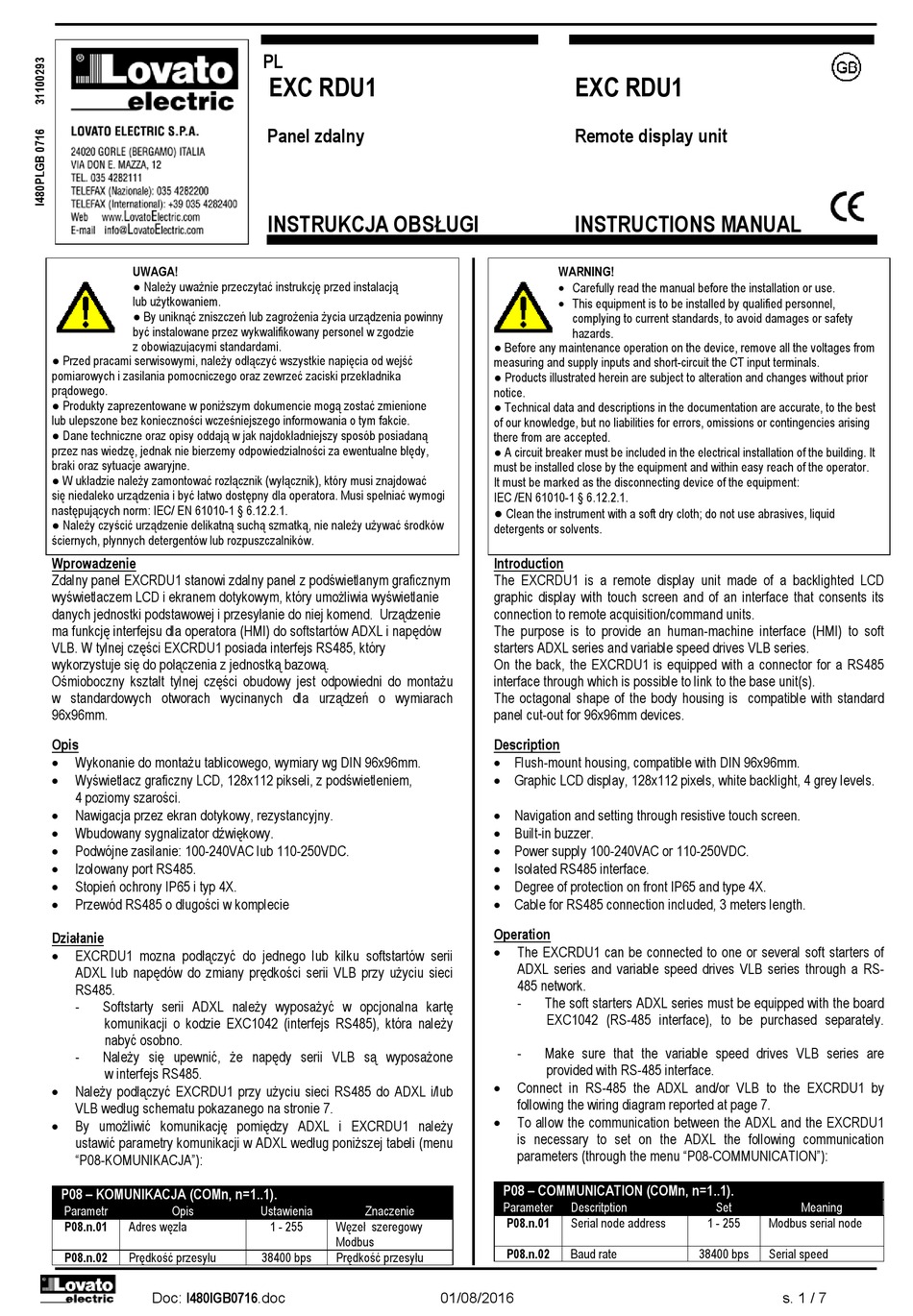

UWAGA!
● Należy uważnie przeczytać instrukcję przed instalacją
lub użytkowaniem.
● By uniknąć zniszczeń lub zagrożenia życia urządzenia powinny
być instalowane przez wykwalifikowany personel w zgodzie
z obowiązującymi standardami.
● Przed pracami serwisowymi, należy odłączyć wszystkie napięcia od wejść
pomiarowych i zasilania pomocniczego oraz zewrzeć zaciski przekładnika
prądowego.
● Produkty zaprezentowane w poniższym dokumencie mogą zostać zmienione
lub ulepszone bez konieczności wcześniejszego informowania o tym fakcie.
● Dane techniczne oraz opisy oddają w jak najdokładniejszy sposób posiadaną
przez nas wiedzę, jednak nie bierzemy odpowiedzialności za ewentualne błędy,
braki oraz sytuacje awaryjne.
● W układzie należy zamontować rozłącznik (wyłącznik), który musi znajdować
się niedaleko urządzenia i być łatwo dostępny dla operatora. Musi spełniać wymogi
następujących norm: IEC/ EN 61010-1 § 6.12.2.1.
● Należy czyścić urządzenie delikatną suchą szmatką, nie należy używać środków
ściernych, płynnych detergentów lub rozpuszczalników.
Wprowadzenie
Zdalny panel EXCRDU1 stanowi zdalny panel z podświetlanym graficznym
wyświetlaczem LCD i ekranem dotykowym, który umożliwia wyświetlanie
danych jednostki podstawowej i przesyłanie do niej komend. Urządzenie
ma funkcję interfejsu dla operatora (HMI) do softstartów ADXL i napędów
VLB. W tylnej części EXCRDU1 posiada interfejs RS485, który
wykorzystuje się do połączenia z jednostką bazową.
Ośmioboczny kształt tylnej części obudowy jest odpowiedni do montażu
w standardowych otworach wycinanych dla urządzeń o wymiarach
96x96mm.
Opis
Wykonanie do montażu tablicowego, wymiary wg DIN 96x96mm.
Wyświetlacz graficzny LCD, 128x112 pikseli, z podświetleniem,
4 poziomy szarości.
Nawigacja przez ekran dotykowy, rezystancyjny.
Wbudowany sygnalizator dźwiękowy.
Podwójne zasilanie: 100-240VAC lub 110-250VDC.
Izolowany port RS485.
Stopień ochrony IP65 i typ 4X.
Przewód RS485 o długości w komplecie
Działanie
EXCRDU1 mozna podłączyć do jednego lub kilku softstartów serii
ADXL lub napędów do zmiany prędkości serii VLB przy użyciu sieci
RS485.
-
Softstarty serii ADXL należy wyposażyć w opcjonalna kartę
komunikacji o kodzie EXC1042 (interfejs RS485), która należy
nabyć osobno.
-
Należy się upewnić, że napędy serii VLB są wyposażone
w interfejs RS485.
Należy podłączyć EXCRDU1 przy użyciu sieci RS485 do ADXL i/lub
VLB według schematu pokazanego na stronie 7.
By umożliwić komunikację pomiędzy ADXL i EXCRDU1 należy
ustawić parametry komunikacji w ADXL według poniższej tabeli (menu
"P08-KOMUNIKACJA"):
P08 – KOMUNIKACJA (COMn, n=1..1).
Parametr
Opis
P08.n.01
Adres węzła
P08.n.02
Prędkość przesyłu
Doc: I480IGB0716.doc
PL
EXC RDU1
Panel zdalny
INSTRUKCJA OBSŁUGI
Ustawienia
Znaczenie
1 - 255
Węzeł szeregowy
Modbus
38400 bps
Prędkość przesyłu
EXC RDU1
Remote display unit
INSTRUCTIONS MANUAL
WARNING!
 Carefully read the manual before the installation or use.
 This equipment is to be installed by qualified personnel,
complying to current standards, to avoid damages or safety
hazards.
● Before any maintenance operation on the device, remove all the voltages from
measuring and supply inputs and short-circuit the CT input terminals.
● Products illustrated herein are subject to alteration and changes without prior
notice.
● Technical data and descriptions in the documentation are accurate, to the best
of our knowledge, but no liabilities for errors, omissions or contingencies arising
there from are accepted.
● A circuit breaker must be included in the electrical installation of the building. It
must be installed close by the equipment and within easy reach of the operator.
It must be marked as the disconnecting device of the equipment:
IEC /EN 61010-1 § 6.12.2.1.
Clean the instrument with a soft dry cloth; do not use abrasives, liquid
detergents or solvents.

Introduction

The EXCRDU1 is a remote display unit made of a backlighted LCD
graphic display with touch screen and of an interface that consents its
connection to remote acquisition/command units.
The purpose is to provide an human-machine interface (HMI) to soft
starters ADXL series and variable speed drives VLB series.
On the back, the EXCRDU1 is equipped with a connector for a RS485
interface through which is possible to link to the base unit(s).
The octagonal shape of the body housing is compatible with standard
panel cut-out for 96x96mm devices.

Description

 Flush-mount housing, compatible with DIN 96x96mm.
 Graphic LCD display, 128x112 pixels, white backlight, 4 grey levels.
 Navigation and setting through resistive touch screen.
 Built-in buzzer.
 Power supply 100-240VAC or 110-250VDC.
 Isolated RS485 interface.
 Degree of protection on front IP65 and type 4X.
 Cable for RS485 connection included, 3 meters length.

Operation

The EXCRDU1 can be connected to one or several soft starters of
ADXL series and variable speed drives VLB series through a RS-
485 network.
-
The soft starters ADXL series must be equipped with the board
EXC1042 (RS-485 interface), to be purchased separately.
-
Make sure that the variable speed drives VLB series are
provided with RS-485 interface.
Connect in RS-485 the ADXL and/or VLB to the EXCRDU1 by
following the wiring diagram reported at page 7.
To allow the communication between the ADXL and the EXCRDU1
is necessary to set on the ADXL the following communication
parameters (through the menu "P08-COMMUNICATION"):
P08 – COMMUNICATION (COMn, n=1..1).
Parameter
Descritption
P08.n.01
Serial node address
P08.n.02
Baud rate
01/08/2016
Set
Meaning
1 - 255
Modbus serial node
38400 bps
Serial speed
s. 1 / 7
