- Page 1 I N S T A L L A T I O N G U I D E HzUMB for H zU T , H zU T L X , H zO T O , H z 3 3 , H z 3 3 L X...
-
Page 2: Completed Assembly

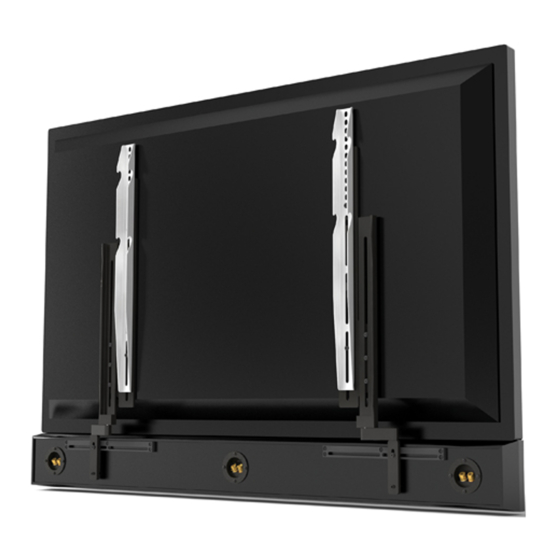

Completed Assembly Universal TV HzUMB Parts Mount Hardware 12 x M6 Screw M8 Screw Spacers Foam Tape Short Button Long Button Head Screw Head Screw M6 Lock M8 Lock Flat Washer Hex Key Paddles Swing Arm Adjustable Washer Washer Upright... - Page 3 Fig. 1 Place TV and Speaker facedown on a clean, padded surface. Fig. 2 {Optional} For TVs with clear bezels or gaps between speaker and TV, apply Foam Tape to TV’s edge and cut to size.
- Page 4 Fig. 3 Fig. 4 set screws Loosen set screws on Adjustable Uprights. Slide Affix Adjustable Uprights and TV Mount Rails with M6 or M8 Adjustable Uprights to align with TV mount holes. Screws and Washers. Use Spacers as needed to ensure the Adjustable Uprights and TV Mount Rails are level.
- Page 5 Q U E S T I O N S ? Call Customer Service 1.888.213.5015 Mon–Fri 8AM–6PM EST C A L L 1 . 8 8 8 . 2 1 3 . 5 0 1 5 O R V I S I T W W W. L E O N S P E A K E R S . C O M F O R M O R E I N FO R M AT I O N A L L I N FO R M AT I O N C O P Y R I G H T ©...
