1. Introduction
Avoid drilling lag screws into your flat roof top or concrete pad, the EZ-NPP is
recommended for high wind installations, providing a strong platform with cinder blocks
for ballast (cinder blocks are not included).

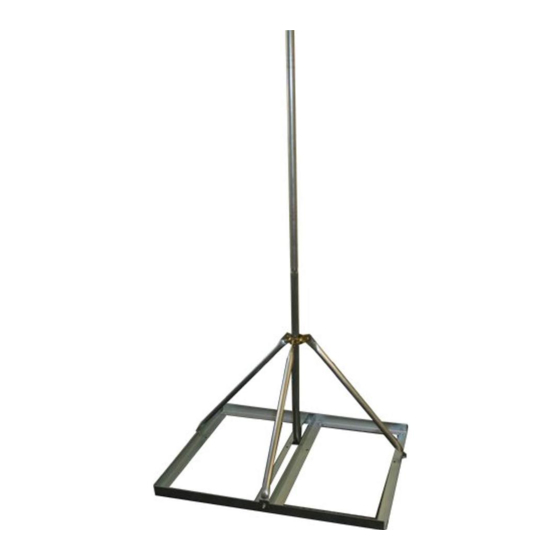

Ideal for non-penetrating flat roof and ground installations, the EZ-NPP tripod and mast
assembly includes a sturdy, galvonized steel mounting platform. The platform is sized for
four standard concrete cinder blocks as ballast.
The EZ-NPP Tripod assembly is constructed of 18 gauge 1008-10 steel tubing, galvanized
using the Flo-Coat (zinc-chromate-polymer) process for excellent corrosion protection.
Ungalvanized mast collars, & connecting components are gold irridited for corrosion
protection.
Mast collars feature a captive "stop-nut" design, to eliminate lock nut spin when tightened;
and a mast supporting cup for additional stability.
Tripod height 33 inches (85.8 cm). Supplied with one mast for an assembly height of 53"
inches (150.8 cm).
Add up to two mast extensions (EZ-125-35M) to extend the height of 31" per mast
extension.
Version 1.2
©Copyright 2018, Ambient LLC. All Rights Reserved.
Platform User Manual
Page 1
Advertisement
Table of Contents
Related Manuals for Ambient Weather EZ-NPP
Summary of Contents for Ambient Weather EZ-NPP
- Page 1 Warranty Information ........................7 1. Introduction Avoid drilling lag screws into your flat roof top or concrete pad, the EZ-NPP is recommended for high wind installations, providing a strong platform with cinder blocks for ballast (cinder blocks are not included).
- Page 2 2. Parts The EZ-NPP assembly includes the following components. Description Image 1 34.5” Steel Angle 4 28.5” Steel Angle 1 Tripod Assembly 1 31” Lower Mast 1 35” Swaged Upper Mast 12 ¾” Bolt 1 2 ¼” Bolt 12 ½” Lock Nut Figure 1 3.
- Page 3 5. Installation 5.1 Platform Connect the two 34.5” steel angle brackets with two 28.5” steel angle brackets with four ¾” bolts and tighten with four lock nuts using ½” wrench, as shown in Figure 1. Complete the platform by connecting the remaining two 28.5” steel angle brackets to the two 34.5” steel angle brackets with four ¾”...
- Page 4 Figure 2b 5.2 Tripod Unfold the tripod so the tripod feet are aligned up with the platform, as shown in Figure 3. Connect the tripod to the platform with three ¾” bolts and tighten with three lock nuts using ½” wrench, as shown in Figure 3.
- Page 5 Figure 4 Figure 5 5.3 Mast Insert the swaged end of the upper mast into the lower mast as shown in Figure 6. Tighten so the upper mast does not rotate and tap with hammer or mallet until secure. Version 1.2 ©Copyright 2018, Ambient LLC.
- Page 6 Made of 18 gauge 1008-10 steel tubing, galvanized Figure 8 using the Flo-Coat (zinc-chromate-polymer) process for excellent corrosion protection. When used with the EZ-NPP tripod, this extension will raise the anemometer to a height of 84 inches. Version 1.2 ©Copyright 2018, Ambient LLC. All Rights Reserved.
- Page 7 7. Warranty Information Ambient, LLC provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. This limited warranty begins on the original date of purchase, is valid only on products purchased and only to the original purchaser of this product. To receive warranty service, the purchaser must contact Ambient, LLC for problem determination and service procedures.
