Ambient Weather WeatherMount Installation Manual

Ambient Weather WeatherMount Installation Manual

Components

The WeatherMount assembly includes the following components:

Tools and Materials Needed

•
Level or Plumb
•
Drill
•
Adjustable wrench
Ambient Weather
6845 W. Frye Road
Chandler, AZ 85226
TEL 480-346-3380 l FAX 480-346-3381
www.AmbientWeather.com
The Ambient Weather WeatherMount is a flexible
mounting alternative to a mounting pole or tripod.
The mounting plate provides a fast and easy
installation, and can be mounted on a pitched
surface, flat roof or vertical surface, such as a gable.
The WeatherMount is constructed from powder
coated steel and includes a galvanized aluminum
mast. This mounting system is strong, durable and
stable. The slender design is simple, unobtrusive
and aesthetically pleasing. The base can be adjusted
to mount on any pitched roof. Works great with any
weather station.
The small base footprint 4-3/4" W x 7" H (mounting
point foot print 3.75" x 6") allows four lag screws
(included) to be easily mounted at the apex of your
gable. The mount angles 11" in the horizontal
direction to allow clearance of eve or roof
overhangs. Out of the box, the overall height is
approx. 49".
Add one or more mast extensions (EZ-125-35M) to
increase the height of the mounting assembly by 35"
per mast (reference the "May we also suggest"
section below).
The weather station pictured is not included.

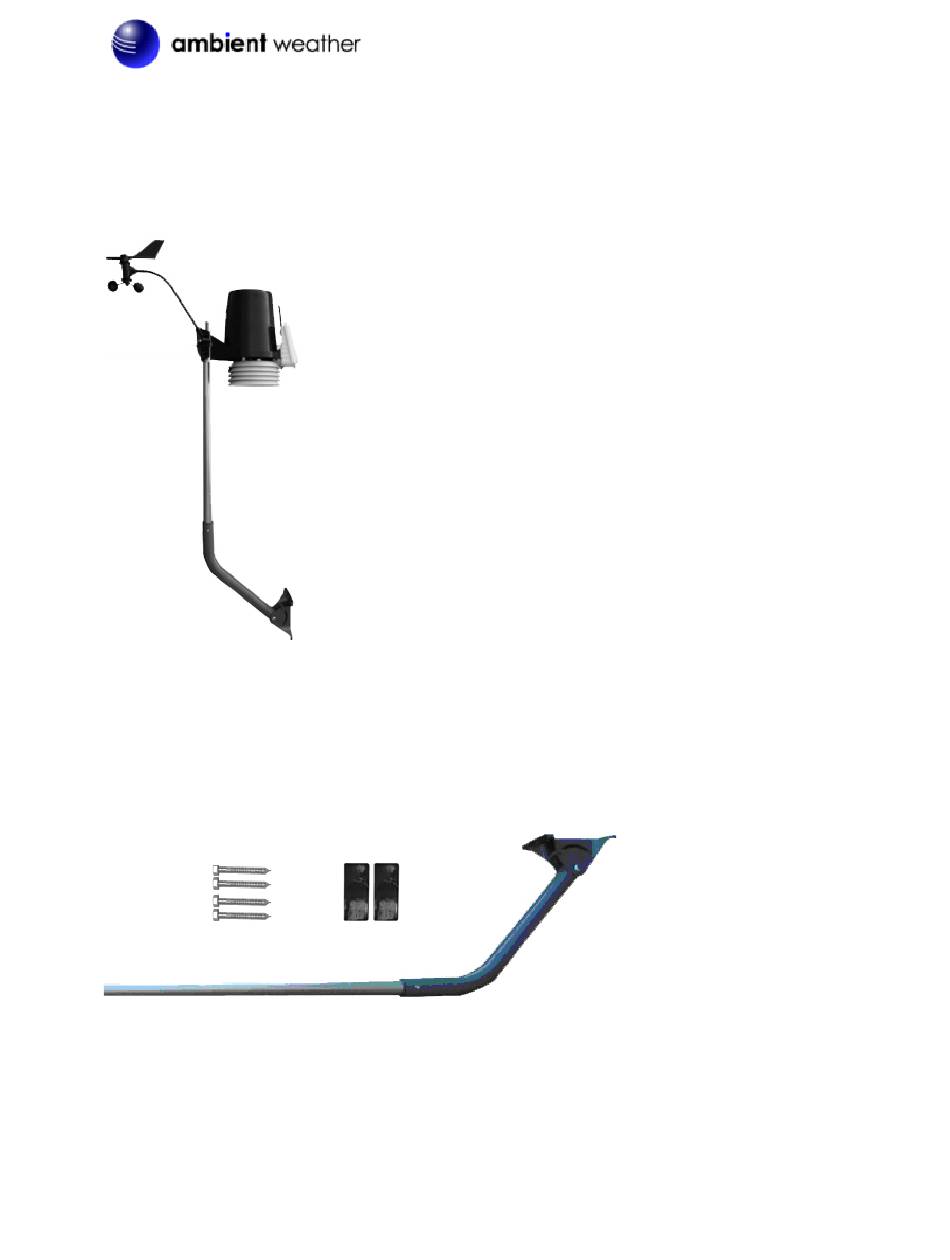

Figure 1
Figure 2
Page 1
1 J-pipe
1 Mounting braket
1 Carriage bolt
1 7/16" Hex bolt
2 7/16" Hex lock nuts
4 Lag Screws
2 Tar Pads
